Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
MACBEYOND
-
Model Number:
-
KCB18.3
-
Place of Origin:
-
Shanghai, China
-
Outlet Size:
-
3/4"
-
Power:
-
1.5KW
-
motor:
-
yes
-
Model:
-
KCB-18.3/2CY-1.1/14.5-2
-
Size:
-
3/4''
-
Flow rate:
-
18.3L/min
-
Suction Head:
-
5 m
Quick Details
-
Application:
-
Biofuel Industry, District Energy, Industrial Utilities, Marine, Pharmaceutical industry, oil depot, fuel oil diesel tanker loading,unloading, fuel oil diesel tanker, fuel station
-
Pressure:
-
Low Pressure
-
Voltage:
-
380v/220v
-
Warranty:
-
1 years
-
Brand Name:
-
MACBEYOND
-
Model Number:
-
KCB18.3
-
Place of Origin:
-
Shanghai, China
-
Outlet Size:
-
3/4"
-
Power:
-
1.5KW
-
motor:
-
yes
-
Model:
-
KCB-18.3/2CY-1.1/14.5-2
-
Size:
-
3/4''
-
Flow rate:
-
18.3L/min
-
Suction Head:
-
5 m
Description:

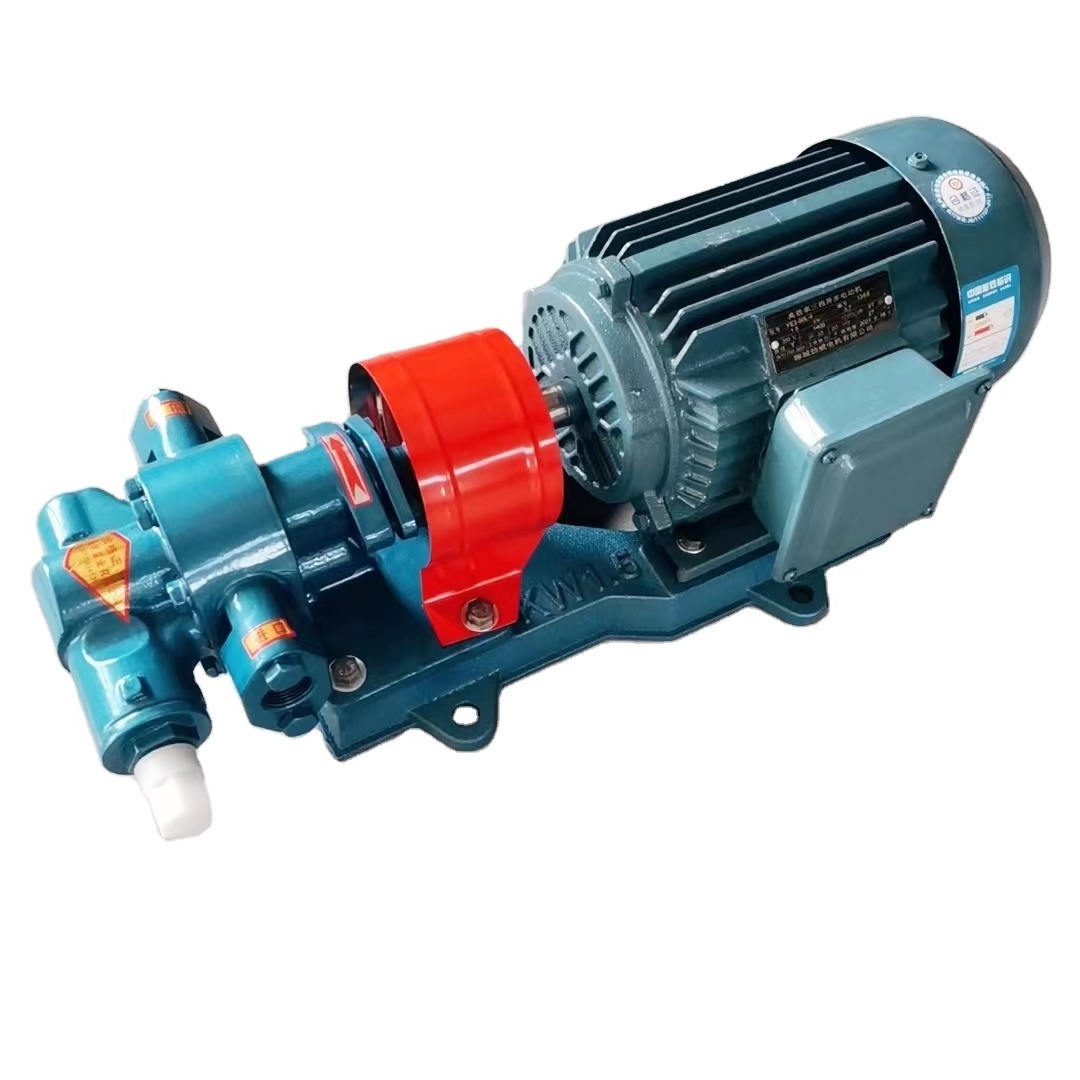

The gear-type oil pump is used for conveying a variety of oils, such as heavy oil, diesel oil, lubricating oil, crude oil etc., equipped with copper gears and explosion-proof motors can transport low flash point liquid gasoline, benzene and so on. Stainless steel pump is used for the food industry conveyor beverages, edible oil, milk, the pH of the liquid. The pump does not apply for solid particles and fibers liquid for viscosity of 5 × 10-5 ~ 1.5 × 10-3m2 / S. The medium temperature is not higher than 70 ℃. For transporting hot liquids, use a high-temperature gear pump, can transport liquid below 300 ℃.
The pump can be used in the oil transfer pump, booster pump and lubricating oil pump. Optional pump material cast iron, aluminum, or stainless steel according to customer requirements. Sealed seal, packing seal, mechanical seals for customers are for option.
Product Paramenters
PRODUCT PARAMETERS
|
Model
|
KCB-18.3/2CY-1.1/14.5-2
|
|
Diameter
|
3/4(mm)
|
|
Flow Rate
|
18.3 L/min
|
|
Pressure
|
14.5 MPa
|
|
Suction Head
|
5 m
|
|
Power
|
1.5 KW
|
|
Main Technical Parameter
|
|
|
|
|
|
|||||
|
Model
|
Diameter (mm)
|
Flow Rate
(L/min)
|
Pressure
(MPa)
|
Suction Head
(m)
|
Power
(KW)
|
|||||
|
KCB-18.3
2CY-1.1/14.5-2
|
3/4
|
18.3
|
14.5
|
5
|
1.5
|
|||||
|
KCB-33.3
2CY-2/14.5-2
|
3/4
|
33.3
|
14.5
|
5
|
2.2
|
|||||
|
KCB-55
2CY-3.3/3.3-2
|
1
|
55
|
0.33
|
5
|
1.5
|
|||||
|
KCB-83.5
2CY-5/3.5-2
|
1
|
55
|
0.33
|
5
|
2.2
|
|||||
|
KCB-83.3
2CY-5/5-2
|
1-1/2
|
83.3
|
0.33
|
5
|
2.2
|
|||||
|
KCB-200
2CY-8/3.3-2
|
1-1/2
|
83.3
|
0.33
|
5
|
3
|
|||||
|
KCB-200
2CY-12/1.3-22
|
2
|
200
|
0.33
|
5
|
4
|
|||||
|
KCB-200
2CY-12/3.3-2
|
2
|
200
|
0.33
|
5
|
4
|
|||||
|
KCB-200 2CY-12/6-2
|
2
|
200
|
0.33
|
5
|
5.5
|
|||||
|
KCB-200
2CY-18/10-2
|
2
|
200
|
0.33
|
5
|
5.5
|
|||||
|
KCB-200
2CY-18/3.6-2
|
2-1/2
|
200
|
0.33
|
5
|
7.5
|
|||||
|
KCB-300
2CY-18/3.6-2
|
3
|
300
|
0.33
|
5
|
5.5
|
|||||
|
KCB-300
2CY-18/6-2
|
3
|
300
|
0.33
|
5
|
7.5
|
|||||
|
KCB483.3
2CY-29/3.6-2
|
3
|
483.3
|
0.33
|
5
|
7.5
|
|||||
|
KCB483.3
2CY-29/3.6-2
|
3
|
483.3
|
0.33
|
5
|
11
|
|||||
|
KCB-633-2
2CY-38/2.8-2
|
4
|
633
|
0.28
|
5
|
11
|
|||||
|
KCB-633-2
2CY-38/8-2
|
4
|
633
|
0.28
|
5
|
22
|
|||||
|
KCB-960-2
2CY-60/3-2
|
4
|
960
|
0.3
|
5
|
18.5
|
|||||
