Quick Details
-
Warranty:
-
2 years
-
Brand Name:
-
Aikon
-
Model Number:
-
CDL(F) 32
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
0.55HP~150HP
-
Outlet Size:
-
DN25~DN150
-
Power:
-
0.37KW~110KW
-
Flow range:
-
0.6~240m³/h
-
Head range:
-
5~360m
-
Power range:
-
0.37KW~110KW
-
Material:
-
SS304/SS316L/SS904
-
Frequency:
-
50/60HZ
-
Temperature:
-
-15~+180℃
-
Max working pressure:
-
4Mpa
-
Connection:
-
Flange/Thread
-
Seal:
-
Cartridge mechnical seal
-
Certification:
-
ce/iso9001
Quick Details
-
Application:
-
Commercial Buildings, Drinking water treatment, Family Homes, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Metal and Equipment Manufacturers, Raw Water Intake, Washing and Cleaning, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Voltage:
-
220/380V 230/460V
-
Warranty:
-
2 years
-
Brand Name:
-
Aikon
-
Model Number:
-
CDL(F) 32
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
0.55HP~150HP
-
Outlet Size:
-
DN25~DN150
-
Power:
-
0.37KW~110KW
-
Flow range:
-
0.6~240m³/h
-
Head range:
-
5~360m
-
Power range:
-
0.37KW~110KW
-
Material:
-
SS304/SS316L/SS904
-
Frequency:
-
50/60HZ
-
Temperature:
-
-15~+180℃
-
Max working pressure:
-
4Mpa
-
Connection:
-
Flange/Thread
-
Seal:
-
Cartridge mechnical seal
-
Certification:
-
ce/iso9001
| Product Type |
Booster Pumps,Centrifugal Pumps,HVAC Condensate Removal Pumps,high life pump |
| Product name |
Stainless steel industrial pump RO Water Pump |
| Material | Stainless Steel(Except Flow Passage Components) |
| Packaging | Wooden case or carton box will be provided. |
| Flow rate | 0.6~240m³/h |
| Head range | 5~360m |
| Power range | 0.37KW~110KW |
| Material | SS304/SS316L/SS904 |
| Frequency | 50/60HZ |
| Temperature type | -15 to 180℃ |
| Max working pressure | 4Mpa |
| Insulation class | F |
| Connection | Flange/Thread |
| Seal | Cartridge mechnical seal |
| Warranty | 2 years |
| IP class | IP55 |
| Altitude | Max. 1000m (If >1000m,customized) |
Introduction
-
Working conditions
Thin, clean, non-flammable, non-explosive, solid free, fiber free, physically and chemically water-like liquid. -
Liquid temperature:
Room temperature type: -15℃ to 70℃
Hot water type:-15℃ to 105℃
Environment temperature:Max.40℃
Altitude: Max. 1000m

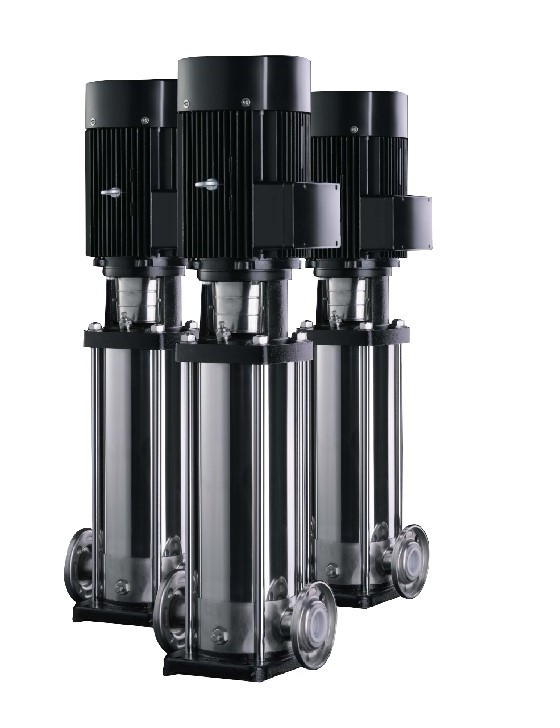

- CDL(F) series of High-quality Multi-stage Centrifugal Pump is a kind of non self-priming vertical centrifugal pump, which adopts standard motor and assembly mechanical seal. It has so many advantages, such as small volume, light weight, low noise, easy maintenance and nice appearance etc.
- CDL(F)series are widely used in daily life, industry, agriculture, water treatment system and so on.
