Quick Details
-
Application:
-
Lithium/ lead acid/ AGM battery
-
Voltage:
-
8V-120V
-
Current Range:
-
0A-1000A
-
Color:
-
Customizable
-
Warranty:
-
1 Year
-
Key Feature:
-
BT IOS and Andriod
-
Function:
-
Current measurement
-
Usage:
-
RV/CAR/ Solar etc..
-
WEIGHT:
-
0.5kg
-
Display:
-
Optional
Quick Details
-
Brand Name:
-
E&J
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
EJ-BM21S-150A
-
Application:
-
Lithium/ lead acid/ AGM battery
-
Voltage:
-
8V-120V
-
Current Range:
-
0A-1000A
-
Color:
-
Customizable
-
Warranty:
-
1 Year
-
Key Feature:
-
BT IOS and Andriod
-
Function:
-
Current measurement
-
Usage:
-
RV/CAR/ Solar etc..
-
WEIGHT:
-
0.5kg
-
Display:
-
Optional
Products Description
PRODUCT INTRODUCTION

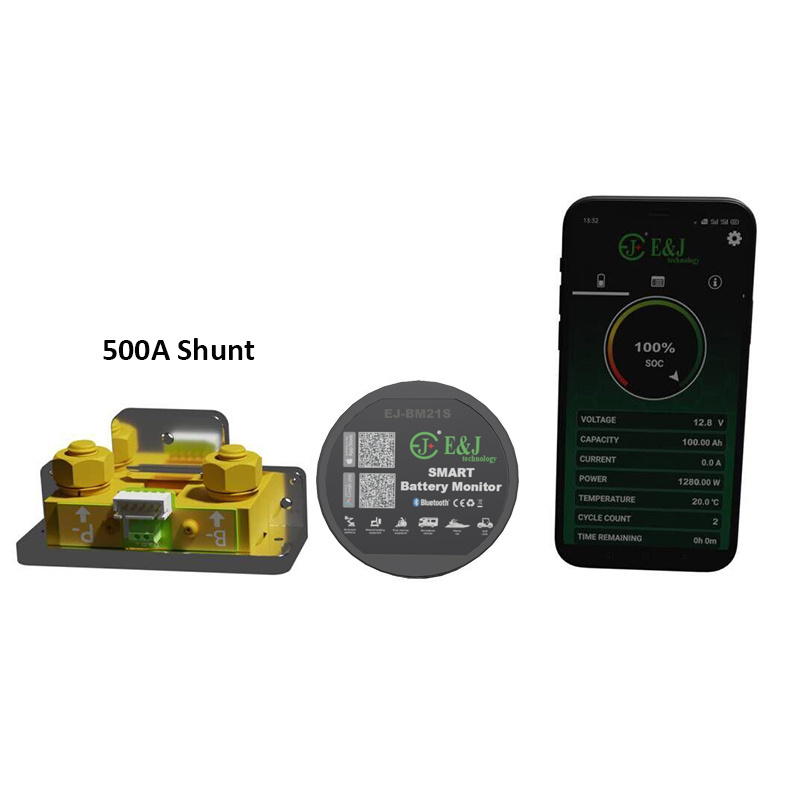

The E&J Battery indicator is a high-precision meter that captures instantaneous and integrated values in real-time, Throught the use of a current shunt, the battery indicator measures the discharge/ recharge currents and calulates the Ampere-hours (Ah) going in and out of the battery. High-precision voltage measurements are taken and displayed in real-time through the use of afield-installed sense wire.
E&J battery indicator is well-suited for lithium, lithium ion, and Lead-acid batteries.
Electrical Paramenters
|
Parameter
|
Min
|
Type
|
Max
|
Unit
|
|
Working Voltage
|
8.0
|
|
80.0
|
V
|
|
Working Dissipation
|
|
10.0
|
12.0
|
mA
|
|
Standby Dissipation
|
|
0.5
|
0.6
|
mA
|
|
Sleep Dissipation
|
|
50
|
60
|
uA
|
|
Voltage Accuracy
|
|
±1.0
|
|
%
|
|
Current Accuracy
|
|
±1.0
|
|
%
|
|
Capacity Accuracy
|
|
±1.0
|
|
%
|
|
Backlight On Current (50A)
|
30.0
|
|
60.0
|
mA
|
|
Backlight on Current (>50A)
|
80.0
|
|
120.0
|
mA
|
|
Preset Capacity Value
|
0.1
|
|
999
|
Ah
|
|
Current of 50A Sampler
|
0.0
|
50.0
|
75.0
|
A
|
|
Current of 100A Sampler
|
0.0
|
100.0
|
150.0
|
A
|
|
Current of 350A Sampler
|
0.0
|
350.0
|
400.0
|
A
|
|
Temperature Range
|
0
|
20
|
35
|
°V
|
|
Weight
|
|
|
|
g
|
|
Size
|
|
|
φ59*20
|
mm
|
Connection diagram
Applications
Suitable for traction/ mobile and stationary applications
*
Golf Cart & Utility Vehicles
* Floor Cleaning Machines
* AWP
* Marine
* RV
* Solar
* Backup
Industrial
TYPICAL APPLICATIONS
*
Cleaning machines
* Forklifts
* Cranes and lifts
* Accessory drives
* Robots
* Industrial drones
* Trains
Automotive
TYPICAL APPLICATIONS
* Buses
* Trucks
* Sports cars
* Passenger cars
* Motor bikes
* Utility vehicles
Marine
TYPICAL APPLICATIONS
* Submarines
* Leisure
* Passenger boats
* UAV
* Leisure
* Passenger boats
* UAV
Light EV
TYPICAL APPLICATIONS
* Scooters
* 3-wheelers
* Golf cars
* Park and garden
* 3-wheelers
* Golf cars
* Park and garden
Energy
TYPICAL APPLICATIONS
* PV timeshift
* Peak shaving
* Grid support
* Peak shaving
* Grid support
