Quick Details
-
Dimensions (L x W x H) (mm):
-
2276*1120*1254mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
China Brand
-
Max. Working Height:
-
20.7m
-
Max. Platform Height:
-
18.7m
-
Max. Working Range:
-
11.98m
-
Max. Load Capacity:
-
256/350kg
-
Max. Travel Speed:
-
4.8km/h
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 2
-
After-sales Service Provided:
-
None
-
Dimensions (L x W x H) (mm):
-
2276*1120*1254mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
China Brand
-
Max. Working Height:
-
20.7m
-
Max. Platform Height:
-
18.7m
-
Max. Working Range:
-
11.98m
-
Max. Load Capacity:
-
256/350kg
-
Max. Travel Speed:
-
4.8km/h
Contact
Lyn Zhang——Sales Manager
whatsapp/mobile phone: +86 18423335211
Wechat: +86 16623604769
Email: lyn@liebty.com
Products Description

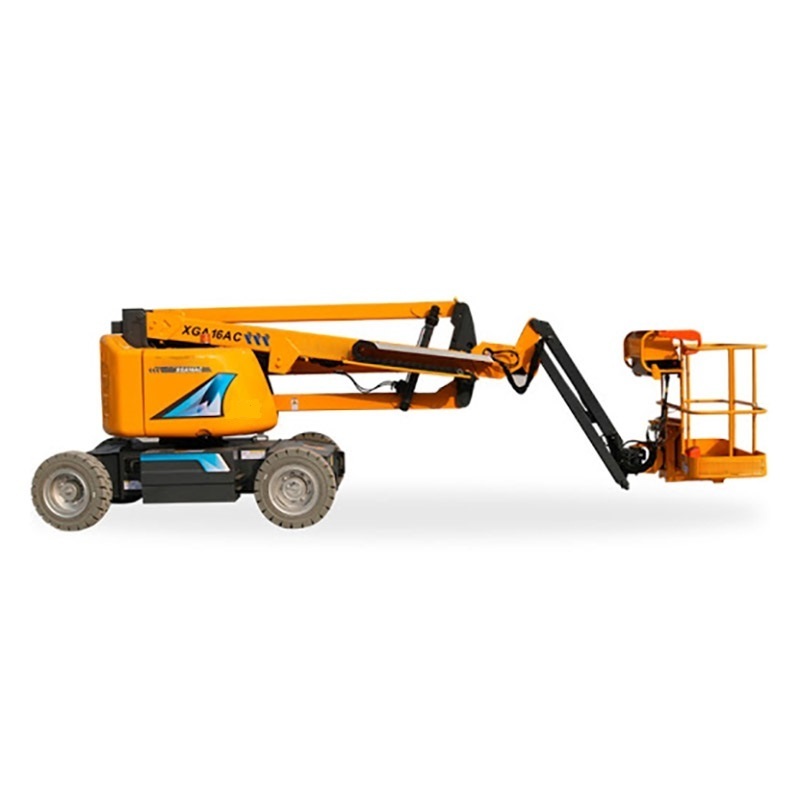

Factory Direct Supply XGA20AC Aerial Work Platform Lifting Equipment for Sale
* Upwards, downwards and crossed multi-directional precise position and excellent extension.
* The electrical system makes use of the distributed PLC-control technologies and the proportional valve being of self-adaptation method, leading the products in the terms of adaptability.
* Full-hydraulic drive, turntable free slewing by 360°, limitless angle in full work range, easy operation, reliable.
* 4WD drive, off-road wide tires and axle-balancing device enable the machine to be excellently suitable for any terrain, with grade ability up to 45% ranking the top in industry.
* The complete vehicle is compact. Before transportation, the crank is retracted back, shortening the transportation length to only 7m.
* Zero tail swing design could facilitate the entering of narrow room and the storage.
Specifications
|
Model
|
XGA20AC
|
|
Max. Working Height(m)
|
20.7
|
|
Max. Platform Height(m)
|
18.7
|
|
Max. Working Range(m)
|
11.98
|
|
Max. Load Capacity(kg)
|
256/350
|
|
1st Boom luffing Range(°)
|
0~+72
|
|
2nd Boom luffing Range(°)
|
0~+73
|
|
Fly Jib Luffing Range(°)
|
-64~+70
|
|
Rotation Angle of Turntable(°)
|
360°(Continuous)
|
|
Rotation Angle of Platform(°)
|
160
|
|
Max. Tail Wagging(mm)
|
565
|
|
Max. Travel Speed(km/h)
|
4.8
|
|
Min. Turning Radius(m)
|
5
|
|
Min. Ground Clearance(mm)
|
300
|
|
Max. Grade Ability(%)
|
45
|
|
Tire Specification(-)
|
830x285 / (315/55D20)
|
|
Engine Model(-)
|
/
|
|
Rated Power of Engine(kW/（r/min）)
|
/
|
|
Battery Specification(V/Ah)
|
48/420 (DC)
|
|
Main Motor Specification(kw/V)
|
12/32 (AC)
|
|
Drive Motor Specification(kw/V)
|
3.3/32 (AC)
|
|
Total Weight(kg)
|
9100
|
|
Platform Size(mm)
|
1800x760
|
|
a Overall Length(mm)
|
8490
|
|
b Overall Width(mm)
|
2490
|
|
c Overall Height(mm)
|
2380
|
|
d Wheel Base(mm)
|
2500
|
|
Transportation Width(mm)
|
2270
|
