Low Speed Small Power Mbbr Sewage Treatment Plant Submersible Mixer
Low Speed Small Power Mbbr Sewage Treatment Plant Submersible Mixer
Low Speed Small Power Mbbr Sewage Treatment Plant Submersible Mixer
Low Speed Small Power Mbbr Sewage Treatment Plant Submersible Mixer
Low Speed Small Power Mbbr Sewage Treatment Plant Submersible Mixer
Low Speed Small Power Mbbr Sewage Treatment Plant Submersible Mixer
Low Speed Small Power Mbbr Sewage Treatment Plant Submersible Mixer
Low Speed Small Power Mbbr Sewage Treatment Plant Submersible Mixer

Low Speed Small Power Mbbr Sewage Treatment Plant Submersible Mixer

FOB Reference Price: Get Latest Price
≥1 Pieces
US $500
≥500 Pieces
US $400
≥1000 Pieces
US $300
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Power:
0.37kW~7.5kW, 0.37kW~7.5kW
Weight (KG):
25 kg
Product Name:
Mbbr Mixer
Application:
Application
Function:
water mixing & agitator
working depth::
less than 20m

Quick Details

Place of Origin:
Zhejiang, China
Brand Name:
JUNTAI
Weight:
0.37kW~7.5kW, 50~200Kg
Power:
0.37kW~7.5kW, 0.37kW~7.5kW
Weight (KG):
25 kg
Product Name:
Mbbr Mixer
Application:
Application
Function:
water mixing & agitator
working depth::
less than 20m
1. Low-speed push flow series products use cycloid reducer, equipped with small power, low speed, large impeller diameter, wide service area . The impeller is made of polyurethane material and aluminum alloy, with high strength and corrosion resistance, which can push the flow and create water flow in addition to the function of mixing. 2.The motor winding of the submersible mixer is insulated with class F and the protection level is IP68. When used in the aeration system of the sewage plant, the energy consumption of the system can be greatly reduced and the oxygen filling volume can be significantly increased, which can effectively prevent sedimentation.
Juntai Low Speed Mixing Special for MBBR Tank
Juntai MBBR Mixer is specially developed for gentle mixing of the liquid plastic carrier elements (biomedia) in MBBR tanks .
The liquid biomedia used in the MBBR processes in modern sewage treatment plants is usually made of HDPE like Juntai MBBR Media.
1. Lower Speed of Impeller speed is only 106 r/m, but Subersible Mixer most is 400 to 1000r/min, it is only 10 to 20% of them.Double-stage new reducer meets Bio carrier tank with special process requirements 2. Large diameter three-leaf stainless steel blades to meet Hydraulics and biocarrier process requirements 3. The propeller can achieve self-cleaning, the propeller is stainless steel material, Good design but also considering the function of automatic cleaning. 4. Equipped with the installation system developed by Juntai, it can be installed on the equipment from multiple angles.

Low Speed Mixer Performance Parameters

Juntai MBBR Mixer are designed in such a way that they have an exceptionally large, inner surface area on which the bacteria can grow without being knocked off or otherwise destroyed when they rotate and hit each other.
Model
Power
（KW）
Electrode
Rated current
（A）
Speed
（r/min）
Quantity
（set）
Diameter
（mm）
Threst
（N）
Weight
（Kg）
JUNTAIMIXER3/4
3
4
6.6
420
2
400
1400
75
JUNTAIMIXER4/4
4
4
8.6
420
2
550
1800
85
JUNTAIMIXER5.5/4
5.5
4
11.8
420
2
550
2100
90
JUNTAIMIXER7.5/4
7.5
4
15.5
420
2
620
2600
100
JUNTAIMIXER11/4
11
4
24
420
2
750
3100
120
JUNTAIMIXER15/4
15
4
33
420
2
800
3500
150
Mixing range speed of 0.Im/s (clear water）

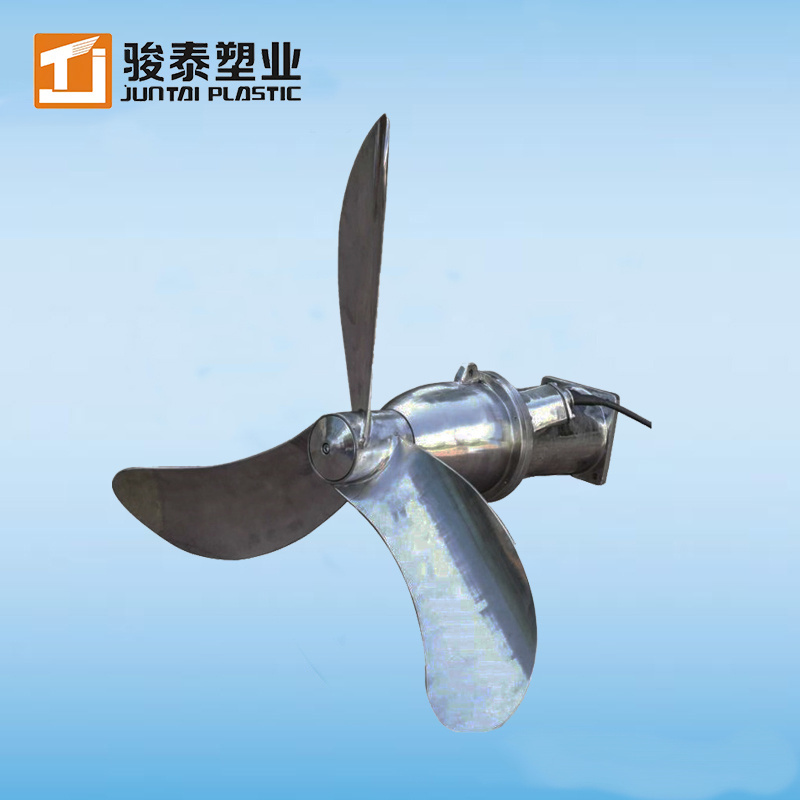

Juntai Subersible Mixer
Subersible Mixer Performance Parameters
Model
Motor
power (kw)
Electrode
Rated
current (A)
RPM of vane
or propellel
(r/min)
Diameter of
vane or
propeller (mm)
Weight
(kg)
JUNTAIQJB0.37/6
0.37
6
4
980
220
25
JUNTAIQJB0.85/8
0.85
8
3.2
740
260
55
JUNTAIQJB1.5/6
1.5
6
4
980
260
55
JUNTAIQJB2.2/8
2.2
8
5.9
740
320
88
JUNTAIQJB 4/6
4
6
10.3
960
320
88
JUNTAIQJB1.5/8
1.5
8
5.2
740
400
74
JUNTAIQJB2.5/8
2.5
8
7
740
400
74
JUNTAIQJB 3/8
3
8
8.6
740
400
74
JUNTAIQJB 4/6
4
6
10.3
980
400
74

Juntai Subersible Mixer Feature:

1. Juntai submersible mixing compact structure, small volume, light weight, simple operation and maintenance, easy installation and maintenance, long service life. 2. The structure of the impeller has the optimum hydraulic design, work efficiency is high, after swept blade has self-cleaning function can prevent sundry winding, jam. 3. mixed with aeration system use can make a significant reduction in energy consumption, obviously improve the oxygen filling, effectively prevent the precipitation. 4. motor winding insulation class is F, protection grade IP68, chooses import disposable lubrication maintenance free high quality bearing, has the oil chamber leak detection and exclusive patent motor winding overheating protection and condensation prevention device, make the motor work more safety and reliable. 5. Two independent mechanical seal, mechanical seal friction pay for corrosion resistant material or carbide carbon, silicon, and fasteners are stainless steel material. 6. The unique design of cable seal ruled out the cable leakage hidden trouble. 7. standard parts adopt why separation technology, can effectively prevent the corrosion.
Applications and Packaging

Jutnai MBBR Mixer and Subersible Mixer use in the following conditions:

1.The highest medium temperature does not exceed 40℃. 2.The PH value is between 5 and 9. 3.The density of liquid shall not exceed 1.15 kg/m3. 4.Long-term diving operation, the diving depth is generally not more than 20m.
Application Examples:
1.MBBR reactors
2.Fish ensilage
3.Acidic liquids
4.Liquids with a high chloride
content, Such as at

5.Desalination plants
6.Anoxic and anaerobic tanks
7.SBR reactors
8.Sludge tanks
