Quick Details
-
Product name:
-
channel letter bending machine
-
Keyword:
-
letter bending machine
-
Name:
-
aluminum channel letter bending machine
-
Machine Type:
-
letter bending machine 3d
-
Material category:
-
Flat aluminum,edge aluminum,rectangle/triangle aluminum,channelume
-
Bending Height:
-
20-130mm
-
Material thickness:
-
0.5-1.2mm
-
Feeding accuracy:
-
Length±0.1mm
-
Control Card:
-
ADTECH/Leetro Four-axis motion control card
-
Software system:
-
Autodrive/CBS4 auto bending system
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Year:
-
New
-
Weight (KG):
-
200
-
Product name:
-
channel letter bending machine
-
Keyword:
-
letter bending machine
-
Name:
-
aluminum channel letter bending machine
-
Machine Type:
-
letter bending machine 3d
-
Material category:
-
Flat aluminum,edge aluminum,rectangle/triangle aluminum,channelume
-
Bending Height:
-
20-130mm
-
Material thickness:
-
0.5-1.2mm
-
Feeding accuracy:
-
Length±0.1mm
-
Control Card:
-
ADTECH/Leetro Four-axis motion control card
-
Software system:
-
Autodrive/CBS4 auto bending system
Note: This quotation is a deposit, please contact the salesperson for details of the customized machine.
Product Description
Thread lift clamping mechanism
Double-axis linkage rapid arc bending mechanism
One-touch cutting depth adjustment mechanism
Plug-in I/O integrated PCB blue board
Specification
|
Feeding system
|
Rolling continuous feeding structure
(Closed loop self-test system) |
|
Slotting system
|
Pneumatic lifting rotary milling cutter structure
|
|
Bending System
|
Two-axis linkage copper shaft roller extrusion system(Non-scratch material)
|
|
Driving Motor
|
Three-phase stepper motor 2 set
Two-phase stepper motor 1 set DC brushless motor 1 set |
|
Equipment Weight
|
200kg
|
|
Dimensions
|
L2000mm×W700mm×H1400mm
|
|
Material category
|
Flat aluminum,edge aluminum,rectangle/triangle aluminum,channelume
|
|
Bending Height
|
20-130mm
|
|
Material thickness
|
0.5-1.2mm
|
|
Feeding accuracy
|
Length±0.1mm
Radius>7mm |
|
Control Card
|
ADTECH/Leetro Four-axis motion control card
|
|
Software system
|
Autodrive/CBS4 auto bending system
|
|
Input Voltage
|
220V 50Hz 3.5Kw
|
|
Air Pressure
|
0.6-0.8MPa
|

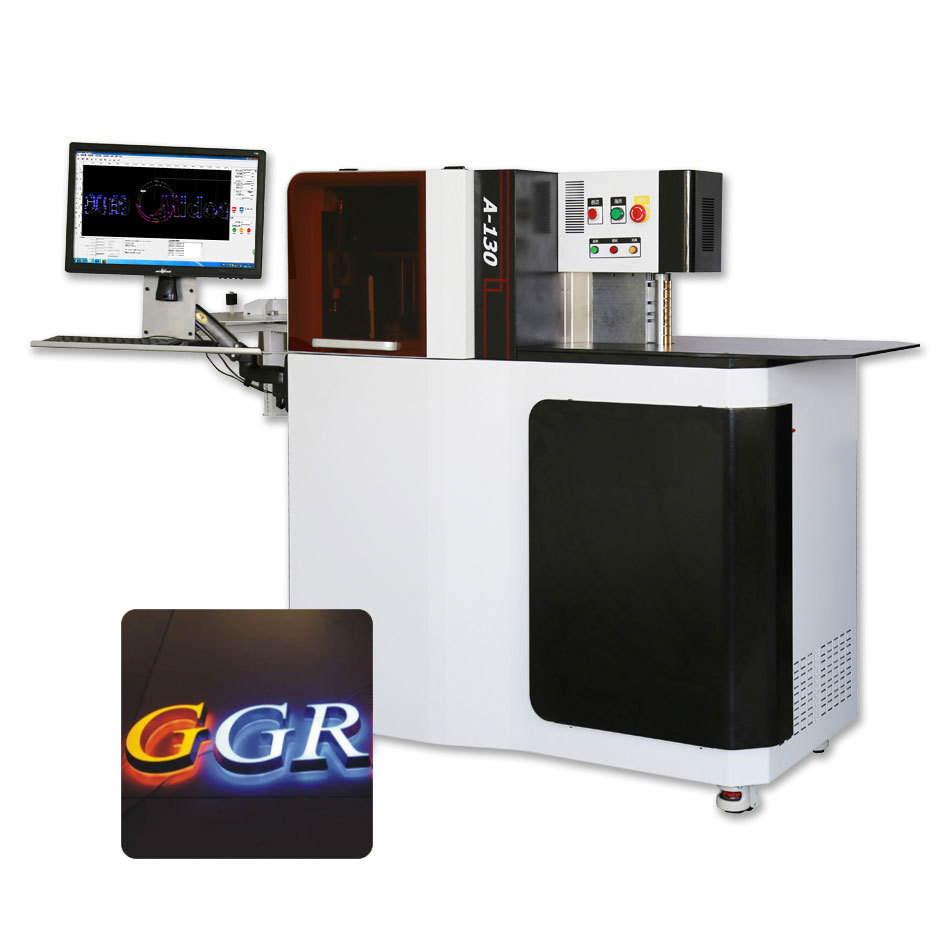

Model No.:aluminum channel letter bending machine DSA-A130
Brief Introduction :
The DSA-A130 is an upgraded product based on the classic model. Adopting threaded lifting lock to clamp materials,easy to adjust the material height and ensure THE material is always perpendicular to the cutter. The closed-loop material detection structure can compensate the feeding stepping motor pulse in time to ensure feeding length is accurate; Front pneumatic clamping structure and the double rubber roller feeding ensure the material is not deformed to the greatest exten.
Aluminum channel letter bender can be used for bending rimless aluminum, aluminum strip,
aluminum coil,aluminum with trim cap,etc. we could customized the model based on your
special demand.
Aluminum channel letter bending machine DSA-A130 Advantage
1-Specially designed for bending various aluminum materials like aluminum strip,fold-edge alumium,aluminum profile,solid aluminum ,etc
2- max bending width can be made as 200mm
3-Bigger slotting knife which has faster slotting speed +arc bending speed
4-two sets three phase step which can make sure strong torque during bending which make sure fine bending effect
5-Germany Brand Delixi electronic components,MW power supply
6- one button slotting depth adjustment,that's our unque tool adjustment feature
7-Equipped with protection measures and installed with protection cover around the cutting tools which produced as TUV standard
8-Exquisite workmanship,Ehicken machine cover and elegant design ,machine net weight is more than 300kg
Application for automatic channel letter bending machine
1>Five axis linkage,square guide rail position slotting
2>Professional for indoor outdoor quality advertising letters,signs and lamp house,like LED aluminum words,rimless words and resign luminous letter
3>Smooth and delicate cutting,low noise,stable performance
4>One button operation and cost effective
5>Specially designed for aluminum materials like aluminum plate,aluminum with trim cap
,aluminum profile(special aluminum can be customize
