Quick Details
-
Product name:
-

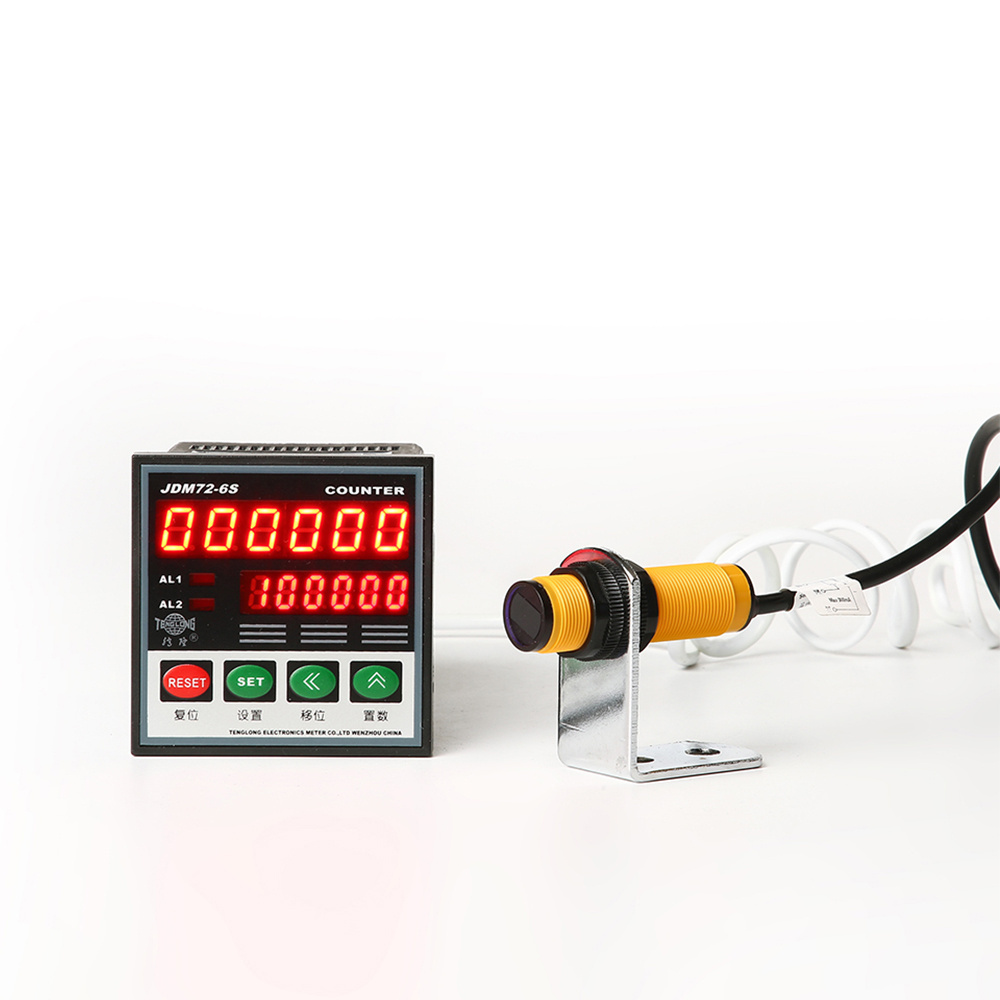

LED Display 6 Digit Digital Intelligent Length Counter Meter
-
Counting range:
-
0-999999
-
Function:
-
Countdown and add
-
Display:
-
6 Digit LED Display
-
Voltage:
-
110V-220V
Quick Details
-
Brand Name:
-
TENGLONG
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
JDM72-6S
-
Product name:
-
LED Display 6 Digit Digital Intelligent Length Counter Meter
-
Counting range:
-
0-999999
-
Function:
-
Countdown and add
-
Display:
-
6 Digit LED Display
-
Voltage:
-
110V-220V
1. Takes humanism and intelligent type as design idea, the complete function can meet various kinds of occasions' application.
2.
Touch switch set
; set value and counting value are separately displayed by LED, visual and convenient.
3. It has
advanced length counting function
that takes pulse as modulus and S et correspond counting value.
4. It has the
functions of automatic repeat counting, counting alarm in advance and adjustable attraction delay time .
5.
Multi-shifts counting frequencies
are for choice.(Contact and impulse input counting) .
|
Item\Type
|
JDM11-4S
|
JDM11-6S
|
JDM72-4S
|
JDM72-5S
|
JDM72-6S
|
||||
|
Display count
|
Two groups of 4 bit LED
|
6 bit LED
|
Two groups of 4 bit LED
|
Two groups of 5 bit LED
|
Two groups of 6 bit LED
|
||||
|
Count range
|
1-9999
|
1-999999
|
1-9999
|
1-99999
|
1-999999
|
||||
|
Coefficient set up range
|
0.001-9.999m
|
0.00001-9.99999m
|
0.001-9.999m
|
0.0001-9.9999m
|
0.00001-9.99999m
|
||||
|
Output delay range
|
0.01-99.99s
|
0.01-9999.99s
|
0.01-99.99s
|
0.01-999.99s
|
0.01-9999.99s
|
||||
|
Rated voltage
|
AC 110~240V、AC24V,50/60HZ/DC24V, 85-110% Rated voltage
|
|
|
|
|
||||
|
Count mode
|
Add count(A), Reversible count(B、C、D,3 kinds methods
|
|
|
|
|
||||
|
Count input
|
Without voltage input(the point of contact tube switch); voltage input H: 4.5~30V, L: 0 ~2V
|
|
|
|
|
||||
|
Count frequency
|
5、30、200、1000、3000Times/second can be choose
|
|
|
|
|
||||
|
Output type
|
F、N、R、C、K1、K2、P、Q、A、D、H、L
|
|
|
|
|
||||
|
Control output
|
2 sets of normally-open contacts
|
2 sets of contacts AL1, AL2 distinguishes output
|
|
|
|
||||
|
Output contact capacity
|
AC240V 3A resistive load (COSφ=1)
|
|
|
|
|
||||
|
Reset mode
|
panel 、connection terminal、auto
|
|
|
|
|
||||
|
Output power
|
DC12V±10% 60mA
|
|
|
|
|
||||
|
Consume electricity
|
240V 50HZ≤5VA DC24V≤3.5W
|
|
|
|
|
||||
|
Power off memory
|
Over 10 years (25℃)
|
|
|
|
|
||||
