High Quality 220V Immersion Electric U Shape Tubular Heating Element for Water Heater

High Quality 220V Immersion Electric U Shape Tubular Heating Element for Water Heater

FOB Reference Price: Get Latest Price

≥5 Pieces

US $2.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: JIA

Brand Name:: Leader

Dimension(L*W*H):: Customizable

Weight:: 1.5 KG

Working Temperature Range:: 5 - 800 ℃

Core Components:: Resistance wire

Shape:: I/L/U/W/Round-Shaped,etc

Tube Diameter:: 6mm/8mm/10mm/12mm/14mm/16mm etc.

Length tolerance:: ±1mm

Diameter tolerance:: ±0.02mm

Wattage tolerance:: ±3%

Resistance wire:: OCr25A/Ni80Cr20

Max wattages:: 8W/cm²

Length:: 100mm 200mm 300mm etc

Heating medium:: Water Oil Air

Quick Details

Type:: TUBULAR HEATER

Power Source:: Electric

Voltage:: 12V-480V/Customizable

Place of Origin:: JIA

Brand Name:: Leader

Dimension(L*W*H):: Customizable

Weight:: 1.5 KG

Working Temperature Range:: 5 - 800 ℃

Core Components:: Resistance wire

Shape:: I/L/U/W/Round-Shaped,etc

Tube Diameter:: 6mm/8mm/10mm/12mm/14mm/16mm etc.

Length tolerance:: ±1mm

Diameter tolerance:: ±0.02mm

Wattage tolerance:: ±3%

Resistance wire:: OCr25A/Ni80Cr20

Max wattages:: 8W/cm²

Length:: 100mm 200mm 300mm etc

Heating medium:: Water Oil Air

Product Description

Tubular heater element is composed of a metal tube, a spiral resistance wire, and high-quality crystalline magnesium oxide powder with good thermal conductivity and good insulation. The heating pipes are made of high-quality thick-walled seamless stainless steel pipes, imported high-temperature magnesium oxide powder and sealing materials, so that the electric heating tube can withstand a temperature of 900 ℃, and the electric heating tube can work in a temporary dehydration state will not damaged. At the same time, the blackened mesh belt furnace is subjected to 1060℃ high temperature nitriding treatment process, which improves the high temperature resistance and corrosion resistance of the electric heating tube and ensures the service life. Reprocessed into various shapes required by users. It has a simple structure, high thermal efficiency, good mechanical strength, and good adaptability to harsh environments. It can be used to heat various liquids and acid-base salts, and it is also suitable for the heating and melting of metals with low melting points (lead, zinc, tin, babbitt alloy)

Application

1.Plastic Processing machinery. 6.Heating Chemical Solutions. 2.Water and Oil Heating Appliances. 7.Ovens & Dryers 3.Packaging machineries 8.Kitchen equipments 4.Vending Machines. 9.Medical equipments 5.Dies and Tools. Used in many other applications.

Details Images

● SS304 /SS321/316L/Incoloy

● Good corrosion resistance

◆ Long service life

● Thickened sealing ring

● Tightly sealed and not leaking water

● Anti-rust

● Easy to replace

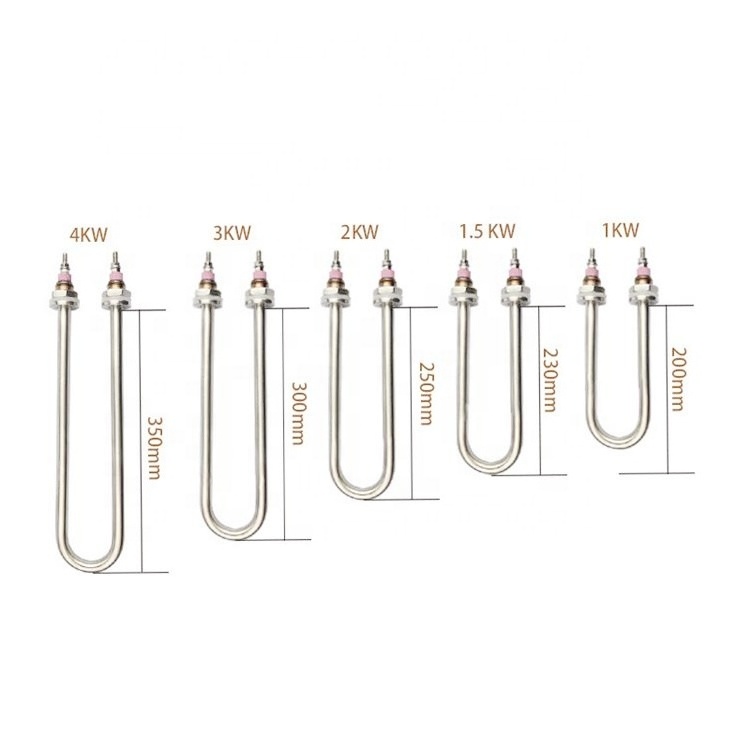

Variouse specifications

Different applications

Any shapes can be customized

Specification

Product name	I/U/W/L/Round tubular fin heating element
Rated voltage	48V~415V Customizable
Power tolerance	±5%
Power	Customizable
Electric strength	Cold state withstand voltage AC working at 1500V 50Hz for 1 minute without breakdown
Thermal insulation	AC work 1000V 50Hz for 1 minute without breakdown

When you order, please provied the specifications as following:

Our Advantages

1.Low MOQ: 1-10 pcs MOQ based on heater type and sizes 2.OEM Accepted: Strong capacity in develop and production under customer drawings 3.Good Service: Instant response, great patience and full consideration 4.Good Quality: With 6S quality control system 5.Fast & Cheap Delivery: We enjoy great discount from shipping forwarders (Years cooperation)

Recommend Products

FAQ

Q: Do you manufacture custom parts? A: Yes. We have thousands of designs in our files of custom heaters and sensors designed for every imaginable application. Our Sales and Engineering teams are here to help you design a product that fits your needs. Q: Are your products original? A: Yes! All products are original and produced by the original manufacturer. Our parts can accept any type of testing, and we will be responsible if there is a quality problem. Q: What is your delivery time? A: Normally samples need 3 working days. Mass production need 7-10 working days. Q: What is the minimum order quantity for your products? A: MOQ 1~10Pc available. Products produced with common materials can be ordered at 1pc. If infrequently used materials required, it depends on the situation of the materials. Please feel free to contact us. Q: Can you provide samples for testing? A: Yes! You only need to pay the freight and you can send free samples for testing. Q: How do we pay for the order? A: You can pay online via TT, Paypal, Western Union and Alibaba. Or you can consult us. Q: If we have heating projects, how to progress project design or select a product? A: We have professional sales to provide pre-sale consulting services and engineering team for technical support. Anyquestions about products or technical questions please communicate with our sales team and provide specific applications and requirements.

Got more questions? Please call or send us a mail. Will reply you with the best answers fastly.
