Quick Details
-
Power supply:
-
AC220V/110V
-
Communication:
-
RS485/TCP
-
Drive unit:
-
DC 24V
-
Arm length:
-
300-500mm
-
Pass speed:
-
40 Persons/min
-
MCBF:
-
over 5 million cycle
-
Reset time:
-
10 seconds
-
Application:
-
supermarket entrance swing barrier
-
Protection Grade:
-
IP54
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Thinkpark
-
Material:
-
304 Stainless Steel
-
Power supply:
-
AC220V/110V
-
Communication:
-
RS485/TCP
-
Drive unit:
-
DC 24V
-
Arm length:
-
300-500mm
-
Pass speed:
-
40 Persons/min
-
MCBF:
-
over 5 million cycle
-
Reset time:
-
10 seconds
-
Application:
-
supermarket entrance swing barrier
-
Protection Grade:
-
IP54

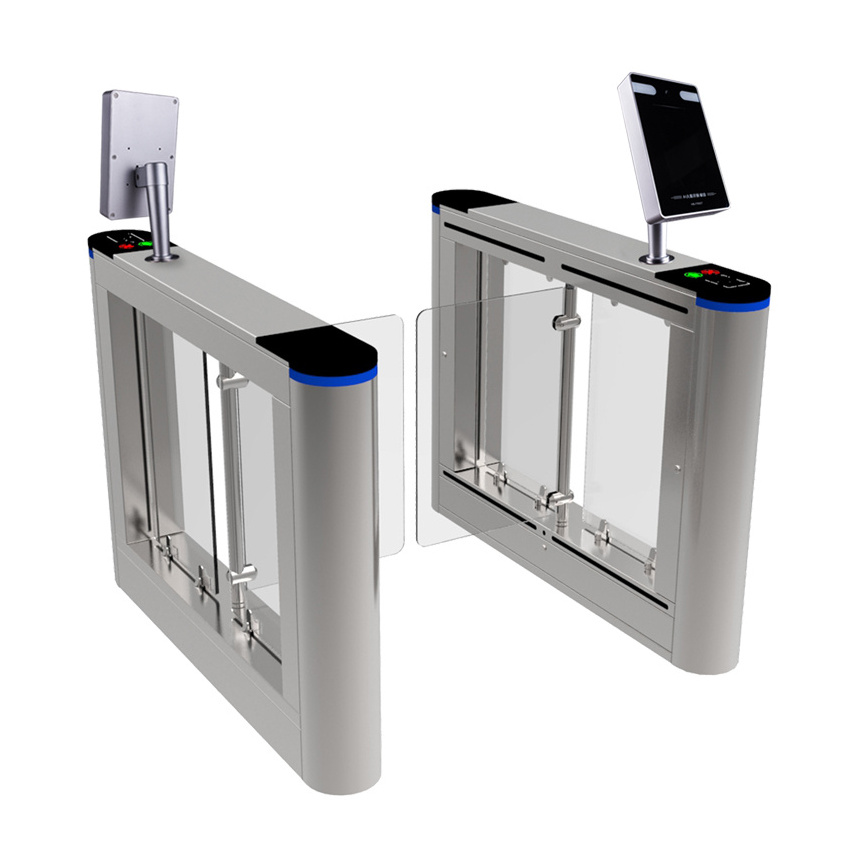

Facial Recognition Biometric Swing Turnstile for Pedestrian Access Control
SXK-TB108 Face Recognition Swing Gate Technical Specifications
| PARAMETERS | DATA |
| Casting material | SS304 |
| Power supply | AC 220V ±10%, 50Hz |
| Drive unit | DC 24V |
| Power consumption | 40W |
| Operatigng temperature | (-25), (+70)°c |
| Communication | RS485/TCP |
| Pole steering | Bi-direction |
| Arm length | 300-550 mm |
| Channel width | 550-900 mm |
| Relative humidity | ≤95%, no condensation |
| MCBF | over 5 million cycle |
| Pass speed | 40 person per minute |
| Reset time | 10 seconds |
| Protection class | IP54 |
| Surface finishing | Electrostatic powder coated and stainless steel can be produced in desired and dimensions. |
SXK-TB108 Face Recognition Swing Gate Benefits
-
Enhanced perimeter security
- Compatibility with any access control system
- Easy operation
- Long service life
- Low maintenance costs
- Smooth and quiet operation
- Large variability
Enhanced Security
- Unauthorized entry prevention
- Perimeter access control
- Passage of single person at a time
- Automatic self lock in case of forced intrusion attempt
- Unauthorized entry attempt notification
- Automatic fail-lock/fail-safe
Modularity
- Compatible with any access control system
- Connectivity to electronic security or fire alarm systems
- Various adjustable passage modes
- Several materials and surface treatments available
- Adaptable design for various readers
- Additonal guidance signs and information devices
Areas of Applications
- Supermarkets
- Exhibition centres
- Metro and public
- Museum
- Airport terminals
- Military facilities
Reliability
- Each product is assembled and 100% tested in factory
- ThinkPark products are designed for long service life
- Advanced corrosion protection
Security packing way with anti static bag, customized box or carton, bubble foam, wooden case safety packing.
