Quick Details
-
Inlet:
-
2.5''
-
Outlet:
-
4''
-
Body Material:
-
Brass
-
Coupling:
-
BS336 coupling
-
Testing pressure:
-
24 Bar
-
Media:
-
Water
-
Standards:
-
BS5041
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
FOREDE
-
Model Number:
-
BI
-
Inlet:
-
2.5''
-
Outlet:
-
4''
-
Body Material:
-
Brass
-
Coupling:
-
BS336 coupling
-
Testing pressure:
-
24 Bar
-
Media:
-
Water
-
Standards:
-
BS5041

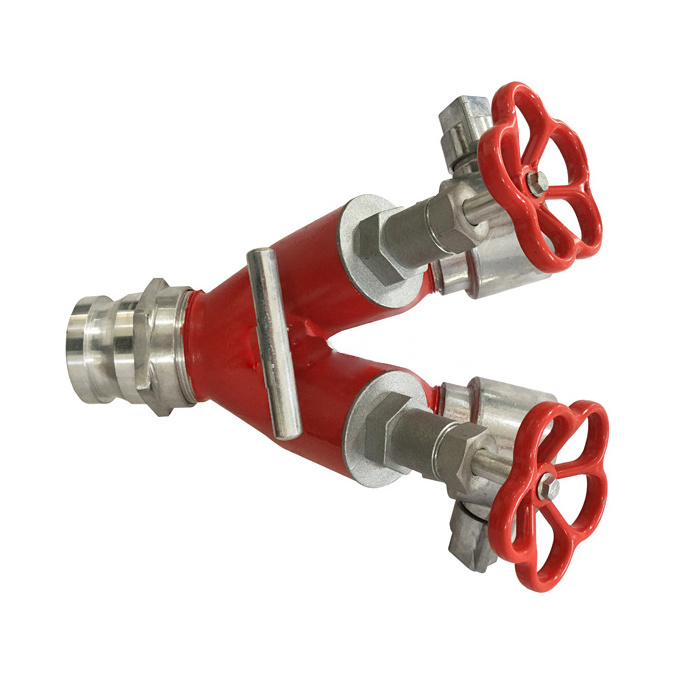

2 WAY BREECHING INLETS
FOREDE 2 ways breeching inlets are suitable for installation on dry risers only, in a building for fire fighting purposes, fitted with inlet connection at fire brigade access level and outlet connection at specified points, which is normally dry but capable of being charged with water by pumping from fire service appliances.
The breeching inlets are manufactured to comply with BS 5041 PART-3:1975 standard comprising of male instantaneous connections complying with BS 336:2010, drain valves complying with BS 5154, PN16 rated and non return valves.
The breeching inlets and its fittings are suitable for a normal working pressure of 10 bar.
Body material made of spheroidal graphite cast iron (Ductile Iron) to BS 1563:2011
Inlet connection and non-return valves material made of copper alloy to BS 12163:2011
Each inlet connections are fitted with non-return valve and are of spring loaded mushroom type
Each breeching inlet is painted RED internally and externally
|
Body
|
Brass
|
|
|
||
|
Inlet
|
2.5" ,2 Nos. Male Instantaneous Connector Complying to BS 336
|
|
|
||
|
Outlet
|
4'' flange outlet
|
|
|
||
|
Fire Landing Valve Type
|
Oblique type
|
|
|
||
|
Installation Type
|
Thread type
|
|
|
||
|
Working Pressure
|
12 Bar Maximum
|
|
|
||
