Quick Details
-
Weight (KG):
-
200
-
Voltage:
-
220V 50/60HZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JCL PACKING
-
Dimension(L*W*H):
-
2040*1800*2140mm
-
Machine Material:
-
SS#304 or Carbon/Mild Steel
-
Film Changeover:
-
Simple and fast bag sizes with one set of forming tubes
-
Controller System:
-
PLC and touch screen with simple manu-based interface
-
Software Operation:
-
Program storage and retrieval function
-
Bags or Products Changeover:
-
parameters setting on the touch screen
-
Bag Sealing:
-
Independent temperature adjustment
-
Film Pulling:
-
Panasonic servo motor driven system
-
Horizontal Sealing Jaws:
-
Panasonic servo motor or air cylinders driven
-
Film Installation:
-
Electrical shaft with brake function
-
Safety Guard:
-
Stop machine in any door opened
Quick Details
-
Function:
-
FILLING, Sealing, counting
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Foil, Pouch
-
Packaging Material:
-
Plastic, Paper
-
Weight (KG):
-
200
-
Voltage:
-
220V 50/60HZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JCL PACKING
-
Dimension(L*W*H):
-
2040*1800*2140mm
-
Machine Material:
-
SS#304 or Carbon/Mild Steel
-
Film Changeover:
-
Simple and fast bag sizes with one set of forming tubes
-
Controller System:
-
PLC and touch screen with simple manu-based interface
-
Software Operation:
-
Program storage and retrieval function
-
Bags or Products Changeover:
-
parameters setting on the touch screen
-
Bag Sealing:
-
Independent temperature adjustment
-
Film Pulling:
-
Panasonic servo motor driven system
-
Horizontal Sealing Jaws:
-
Panasonic servo motor or air cylinders driven
-
Film Installation:
-
Electrical shaft with brake function
-
Safety Guard:
-
Stop machine in any door opened
Products Description

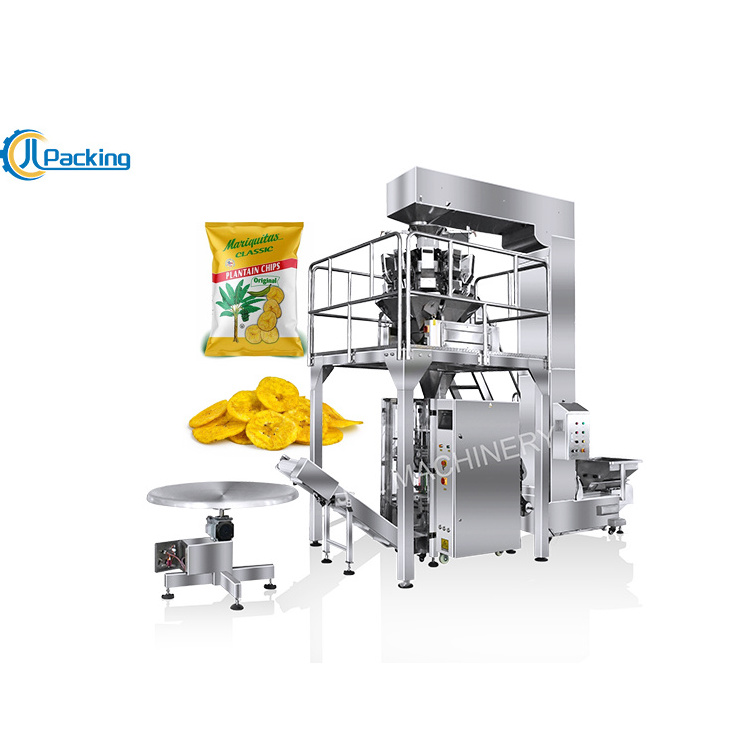

Specification of VFFS packing machine
|
Machine Series
|
VFFS Packing Machine
|
|
|
|
|
||||
|
Model No.
|
JCL-VP420
|
JCL-VP520
|
JCL-VP620
|
JCL-VP730
|
JCL-VP800
|
||||
|
Bag Width
|
60-200mm
|
100-250mm
|
|
140-350mm
|
250-400mm
|
||||
|
Bag Length
|
70-300mm
|
80-350mm
|
|
200-400mm
|
150-500mm
|
||||
|
Bag Speed(Single motor)
|
10-70
bags/min. |
15-60 bags/min.
|
|
10-50 bags/mins
|
5-30
bags/min. |
||||
|
Film Width
|
120-420mm
|
220-520mm
|
220-620mm
|
300-720mm
|
340-800mm
|
||||
|
Air Consumption
|
0.7 Mps
0.5m3/min. |
0.8 Mps
0.4m3/min. |
|
0.8 Mps
0.5m3/min. |
0.6 Mps
0.7m3/min. |
||||
|
Dimension
|
1530*970*1600
mm |
1430*1200*1700mm
|
|
1340*1580*1950mm
|
1500*1680*2100mm
|
||||
|
Weight
|
450kg
|
680kg
|
700kg
|
800kg
|
1000kg
|
||||
|
Power Supply
|
2.2Kw
220V 50/60Hz |
2.5Kw
220V 50/60Hz |
|
2.5Kw
220V 50/60Hz |
3.0Kw
220V 50/60Hz |
||||
It is suitable for packing a range of granular, powder and liquid products, and particularly suited to products that require high standards of package: aesthetically perfect, without any wrinkles, the flush seams are highly resistant and all four sides can be printed on.
Features:
1. Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.
Features:
1. Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.
2. Use famous brand electric and pneumatic components,stable and long life circle.
3. Use superior mechanical components, reduce the wear out loss.
4. Easy to install film, auto correcting the excursion of the film.
5. Apply advanced operating system, easy to use.
3. Use superior mechanical components, reduce the wear out loss.
4. Easy to install film, auto correcting the excursion of the film.
5. Apply advanced operating system, easy to use.
Kindly Reminder
We take great pride in our work and in the wide variety of products that we offer. In order to offer the most suitable machine, we
appreciate you to tell us more information as below. Thank you in advance.
1. What kinds of products will you pack? It would be great if you could show us the photos.
2. What are size and type of the package (Length*height*width)?
3. Other special requirement if you have.
appreciate you to tell us more information as below. Thank you in advance.
1. What kinds of products will you pack? It would be great if you could show us the photos.
2. What are size and type of the package (Length*height*width)?
3. Other special requirement if you have.
SERVICE
Pre-sale Service
1. 24 hours online. Your inquiry will be reply quickly, and can go through all questions with you by any online chatting tools.
2. Professional introduction, details pictures and working videos to show machine.
On-sale Service
1. Before the shipment, we not only Have the strict QC test for all orders, and also will update the photos or videos to you for
checking.
2. We will keep following the shipping information to you after shipped out.
After-sale service
1. There is at least one year warranty for all products.
2. Free spare parts, Field installation, Commissioning and training, Video technical support, Online Support.
3. 24 hours online to solve any problem. We would like to show you the video or photos with the technical support.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
