Quick Details
-
Dimension(L*W*H):
-
3000x4000x8500mm
-
Model Number:
-
JX36
-
Weight (T):
-
85
-
Warranty:
-
one year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Nominal capacity:
-
400ton to 1000ton
-
straight side power press:
-
double crank press machine
-
Nominal Force (kN):
-
400-10000
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WORLD
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3000x4000x8500mm
-
Model Number:
-
JX36
-
Weight (T):
-
85
-
Warranty:
-
one year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Nominal capacity:
-
400ton to 1000ton
-
straight side power press:
-
double crank press machine
-
Nominal Force (kN):
-
400-10000
-
Certification:
-
CE
|
|
|
| Items | Unit | Specifications | ||||
| JX36-400 | JX36-500 | JX36-630 | JX36-800 | JX36-1000 | ||
| Nominal Capacity | KN | 400 | 5000 | 6300 | 8000 | 10000 |
| Rated Tonnage Point | mm | 9 | 12 | 12 | 12 | 12 |
| Stoke Length | mm | 300 | 300 | 350 | 350 | 400 |
| Stroke Speed | spm | 20-35 | 20-35 | 20-30 | 15-25 | 15-25 |
| Max. Die Shut Height | mm | 650 | 650 | 700 | 800 | 900 |
| Die Shut Height Adjustment | mm | 200 | 200 | 250 | 250 | 250 |
| Table Size (FBxLR) | mm | 1300×3000 | 1500×3000 | 1500×3600 | 2000×4000 | 2000×4000 |
| Table Thickness | mm | 220 | 220 | 250 | 250 | 250 |
| Slide Bottom Size (FB-LR) | mm | 1300×3000 | 1500×3000 | 1500×3600 | 2000×4000 | 2000×4000 |
| Window Opening (FBxH) | mm | 1000×650 | 1100×650 | 1200×700 | 1600×800 | 1600×900 |
| Table Height | mm | 710 | 710 | 710 | 710 | 710 |
| Motor Power | KW | 45 | 55 | 75 | 75 | 90 |
| Overall Dimensions (LxWxH) | mm | 3330x4650x7250 | 3800x5400x7700 | 4200x6150x9200 | 4600x6150x9900 | |
| Approximate Weight | T | ≈ 85 | ≈ 95 | ≈ 125 | ≈ 145 | ≈ 195 |

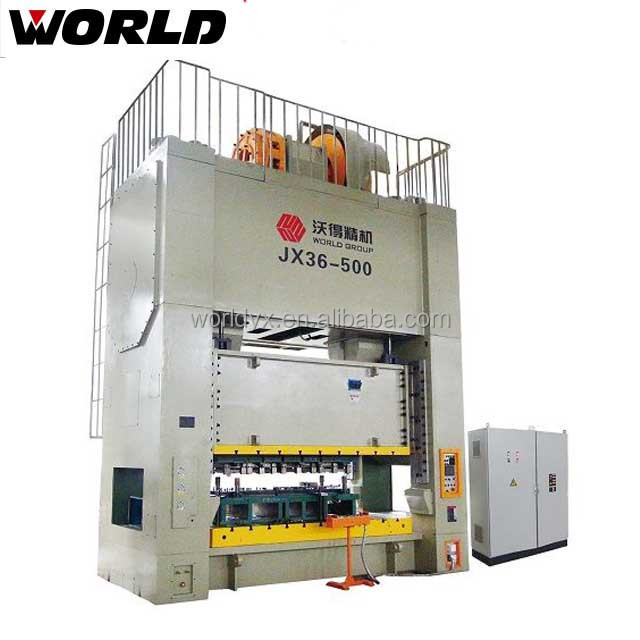

straight side power press
JX36 straight side two points press is designed for the application of high precision, heavy metal stampings works, such as motorcycle and bicycle parts, and home appliance components. Automation provisions, JX36 can be easily upgraded for progressive robotic or mechanical transfer system.
Features:
1. Wide bed for large tools
2. Straight side steel frame with superior rigidity with separated members like the crown, bed, uprights connected by four tie rods pre-stressed hydraulically with nuts.
3. Low-inertia, fast-response, and air-cooled separate clutch and brake.
4. High-performance hydraulic overload protection.
5. Double-geared and twin-end driven gear arrangements.
6. Double left to right crankshafts arrangements extend the load deflection resistance ability.
7. Extra-long, 8-face slide gibbings.
8. Thin oli circulated lubrication system.
9. Provision for the automatic feed system and the quick die change system. unction;
