Quick Details
-
Certificate:
-
ISO9001
-
Standard:
-
DIN, EN, BS, AWWA
-
Type:
-
EN558
Quick Details
-
Place of Origin:
-
Shandong, China
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
Knife gate valve
-
Certificate:
-
ISO9001
-
Standard:
-
DIN, EN, BS, AWWA
-
Type:
-
EN558

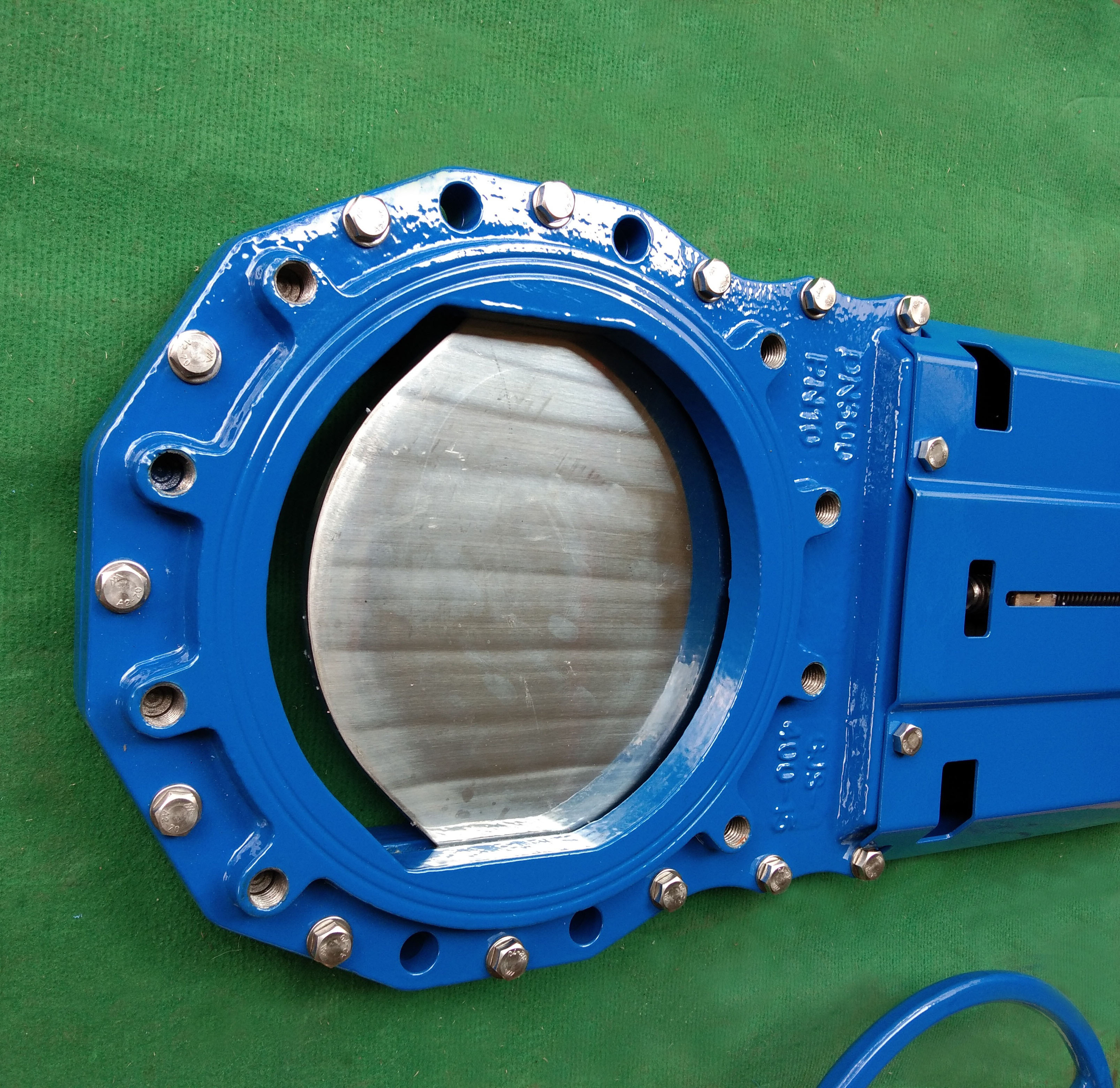

Knife Gate Valve
Outside, non-rising stem
· Flange connection acc. to DIN EN 1092-2 PN10 (equivalent to DIN 2501 PN10)
· Face to face dimension acc. to DIN EN 558, basic series 20 (equivalent to DIN 3202-3 series K1)
· Sealing on both sides, with continuous interior pipe bottom, for mounting between flanges and suitable for end-of-line installation without additional counter-flange
· Continuous position indicator OPEN-CLOSED; with integrated lubricator, depending on version
· Adjustable and exchangeable gland seal during operation(DN50-DN300 PN10)
· Transverse seal adjustable(DN350-DN600 PN4)
· Brass scraper device(reduces incrustation on the gate),optional
Materials (basic version):
· Casted parts of ductile cast iron acc. to EN-GJS-400-15 (GGG-40)
· Plate material no.: 1.4301
· Spindle material no.: 1.4057
· Bolts and nuts SS304
· Enclosed sealing element made of elastomer (NBR)
· Surface protection inside and outside by means of fusion bonded epoxy powder coating blue, RAL 5015 (average dry film thickness >250μm)
· For liquids up to max. +70°C with max. operating and differential pressure of 10 bar
· Mounting brackets material no.: 1.4301
Machine Parts
Materials: Ductile cast iron GGG 40r
Pressure: PN10/4
Size: DN50-600
Main Parts
Materials: Ductile cast iron GGG 40r
Pressure: PN10/4
Size: DN50-600
MainParts
Materials: Ductile cast iron GGG 40r
Pressure: PN10/4
Size: DN50-600
Main Parts
Materials: Ductile cast iron GGG 40r
Pressure: PN10/4
Size: DN50-600
