Quick Details
-
Brand Name:
-
Yuanda Boiler
-
Dimension(L*W*H):
-
Depends on Boiler Capacity
-
Weight:
-
Depends on Boiler Capacity
-
capacity:
-
1t 2t 3t 4t 6t
-
Design pressure:
-
1.0Mpa 1.25Mpa 1.6Mpa
-
Steam temperature:
-
184 194 204 degree
-
Power Supply::
-
customization 380V/440V/220V, 50HZ/60HZ etc.
-
Manufacturer::
-
Yuanda Boiler Factory since 1956
-
abroad service:
-
available
-
Advantage 1:
-
can be use 20-30 years
-
Advantage 2:
-
cheap boiler price compared with other type boiler
-
Advantage 3:
-
Low maintennance cost
Quick Details
-
Core Components:
-
Boiler main body
-
Steam Production:
-
0.1-40ton
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yuanda Boiler
-
Dimension(L*W*H):
-
Depends on Boiler Capacity
-
Weight:
-
Depends on Boiler Capacity
-
capacity:
-
1t 2t 3t 4t 6t
-
Design pressure:
-
1.0Mpa 1.25Mpa 1.6Mpa
-
Steam temperature:
-
184 194 204 degree
-
Power Supply::
-
customization 380V/440V/220V, 50HZ/60HZ etc.
-
Manufacturer::
-
Yuanda Boiler Factory since 1956
-
abroad service:
-
available
-
Advantage 1:
-
can be use 20-30 years
-
Advantage 2:
-
cheap boiler price compared with other type boiler
-
Advantage 3:
-
Low maintennance cost

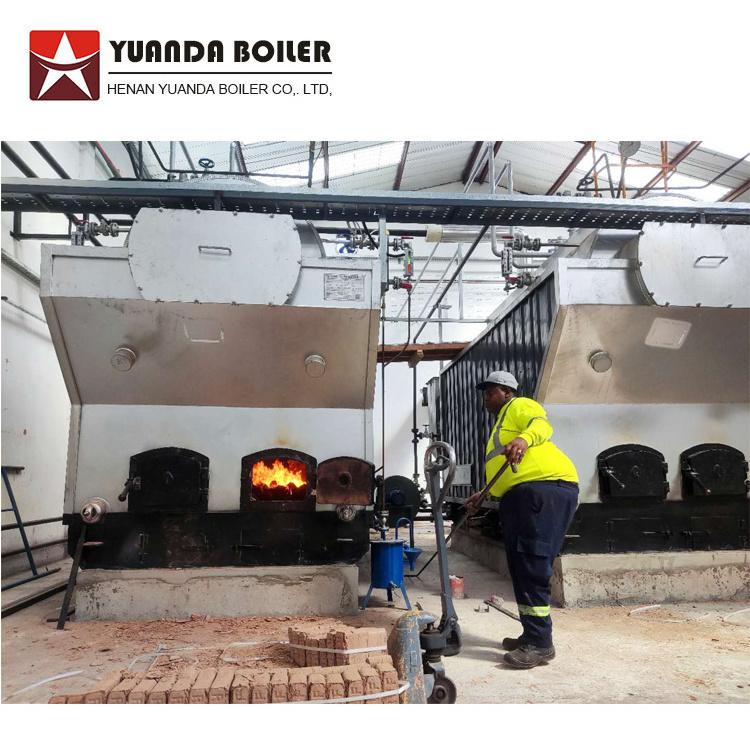

Manual Hand Operation DZH 1t 2t 3t 4t 5t 6t Wood Biomass Coal Firewood Log Waste Fired Steam Boiler for sale
Manual operation type boiler belong to DZH series boiler,its main featuers as fellow: horizontal type,feed fuel by hand with less trouble when oprating wood chips boilers. This DZH series boiler is highest cost-effective boiler,it is praised by our customers many years.
Core Technology
1.Spirally corrugated fire tubes
2.Inertia gas-dust separtion
3.New furnace arch with upside down "α"flue gas flow
4.Wing-shape flue
5.Steam-Water seperating equipment
6.Hot water boilers adopt the unique backwater ejection technology
| Boiler Model | DZH1-1.0 | DZH2-1.25 | DZH4-1.25 | DZL6-1.25 |
| Rated steam capacity(T/H) | 1 | 2 | 4 | 6 |
| Rated steam pressure(Mpa) | 1.0 | 1.25 | 1.25 | 1.25 |
| Rated steam temperature(℃) | 184 | 194 | 194 | 194 |
| Feed water temperature(℃) | 20/104 | |||
| Thermal efficiency(%) | >82 | |||
| Exhaust gas temperature(℃) | 137.4 | 123 | 143 | 141 |
| Fuel type | Firewood, wood logs, biomass, fruit shells,coal,waste fabric,solid fuel | |||
| Fuel consumption(Kg/h) | 190 | 378 | 760 | 1040 |
| Max transportation weight(t) | 8.6 | 15 | 18.5 | 25 |
