China factory PEG 25mm profile rail guides linear guide linear motion parts for cnc equipment

FOB Reference Price: Get Latest Price

≥2 Sets

US $6.04

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: PYG

Material:: S55C,20CRmo

Product name:: Linear Guideway Rail

Structure:: Linear Rail + Linear Block

Brand:: PYG

Performance:: Smooth Linear Guide Rail

Length:: Customized Length

Block Type:: Flange Block

Advantage:: Low Cost

Packaging:: Carton Packaging Wooden Box Packaging

Sample:: Availble

MOQ:: 1 Set

Quick Details

Weight (KG):: 3.02

Model Number:: PEGW25SA/PEGW25CA

Place of Origin:: Zhejiang, China

Brand Name:: PYG

Material:: S55C,20CRmo

Product name:: Linear Guideway Rail

Structure:: Linear Rail + Linear Block

Brand:: PYG

Performance:: Smooth Linear Guide Rail

Length:: Customized Length

Block Type:: Flange Block

Advantage:: Low Cost

Packaging:: Carton Packaging Wooden Box Packaging

Sample:: Availble

MOQ:: 1 Set

Product Overview

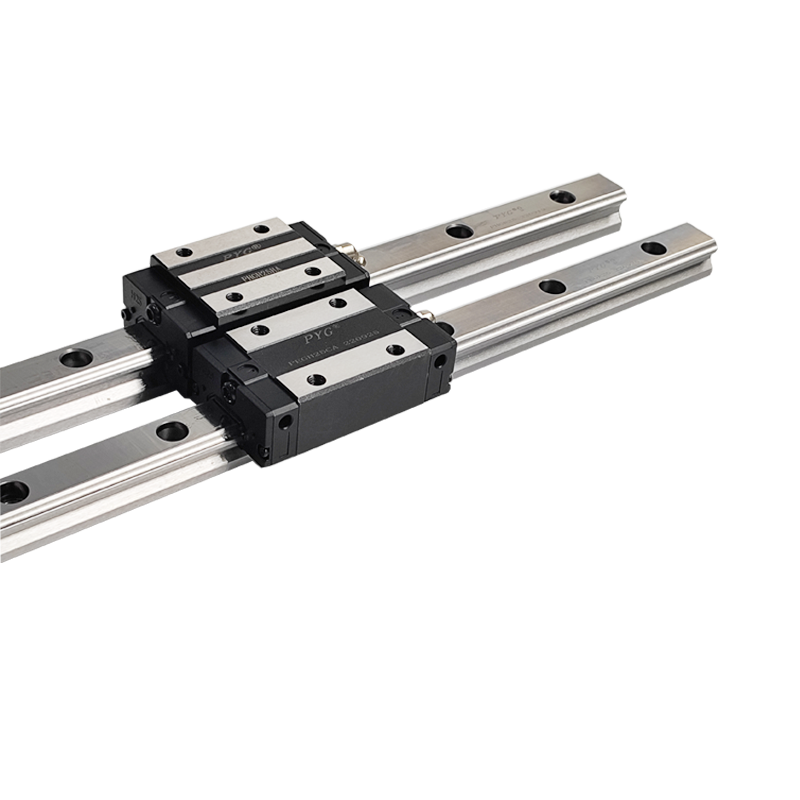

PEG Series Lm Guide Bearing Low Profile Linear Rail Guide

Low profile linear guides are designed to provide superior performance while minimizing space requirements. Its compact form factor ensures easy integration into any system, making it suitable for a variety of industries including automation, robotics and manufacturing.

Features:

1.lower saaembly height

2.shorten the length of block

3.high rigidity

4.high loading

5.suitable for high speed automation industrial equipment and space limited small equipment

Designed with precision in mind, this guideway guarantees precise and reliable linear motion. The high-quality materials used in
its construction contribute to its durability and long-lasting performance. You can trust our low-profile linear guides to
withstand the rigors of heavy-duty use, ensuring consistent results over time.

PRODUCT SPECIFICATIONS

No	Item	Data
1	Model Size	25mm
2	Brand	PYG
3	Rail Material	S55C
4	Block Material	20 CRmo
5	Sample	available
6	Delivery time	5-15 days
7	Precision level	C , H, P, SP, UP
8	Block Type	Flange Block

PEG series linear guide means low profile ball type linear guide with four row steel balls in arc groove structure which can bear
high load capacity in all directions，high rigidity, self-aligning, can absorb the installation error of mounting surface, this low
profile and short block are very suitable for small equipment which require high speed automation and limited space. Besides the
retainer on block can avoid the balls falling off.

PRODUCT CONFIGURATION

Our Advantages

1)Quality: high rigidity, high precision of linear guide whose walking accuracy less than 0.003mm;
2)Cost : lower cost compared to other linear guides factories;
3)Interchangeability: PYG linear guides can replace some branded ones perfectly but lower cost;
4)Service: PYG offer one-stop technological consultation service and practical solutions from pre-sale, sales and after sales;
5)Warranty: PYG linear guide has one year warranty.
