Quick Details
-
Mounting Type:
-
Embedded installation
-
Description:
-

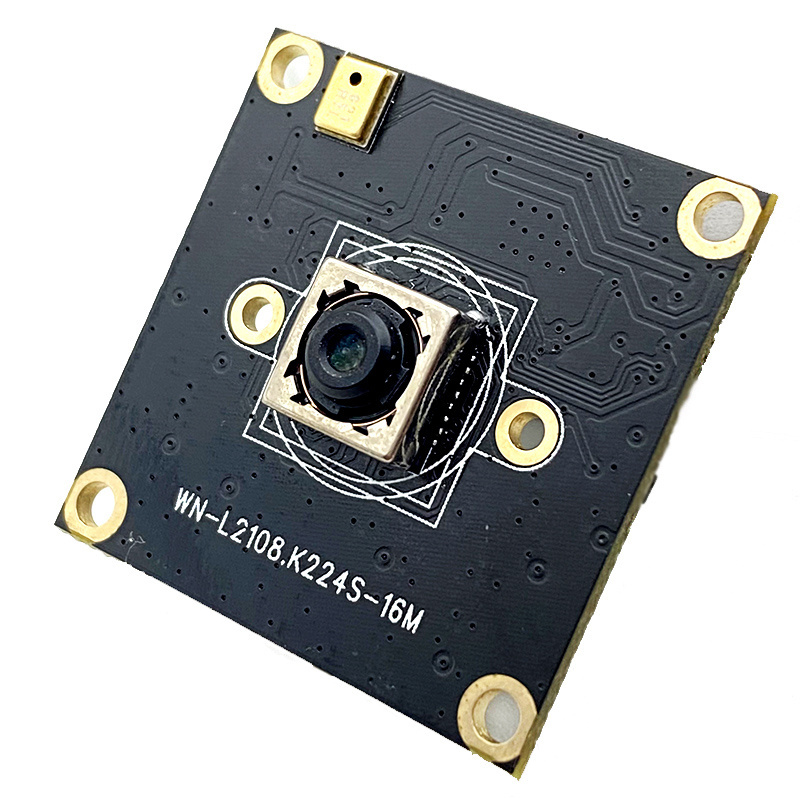

16MP USB2.0 Camera Module
-
Module Size:
-
32*32mm
-
Image Sensor:
-
1/2.8-inch IMX298 CMOS Sensor
-
Max. Resolution:
-
4656 H x 3496 V
-
Pixel Size:
-
1.12*1.12μm
-
Output Format:
-
MJPEG
-
Field of View:
-
75°
-
Audio Input:
-
Digital Microphone
-
Focus Mode:
-
Autofocus
-
Shutter Mode:
-
Electronic Rolling Shutter
-
Output & Power Supply:
-
High Speed USB2.0
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Visionary Electronics
-
Model Number:
-
WN-L2108.K224S
-
Mounting Type:
-
Embedded installation
-
Description:
-
16MP USB2.0 Camera Module
-
Module Size:
-
32*32mm
-
Image Sensor:
-
1/2.8-inch IMX298 CMOS Sensor
-
Max. Resolution:
-
4656 H x 3496 V
-
Pixel Size:
-
1.12*1.12μm
-
Output Format:
-
MJPEG
-
Field of View:
-
75°
-
Audio Input:
-
Digital Microphone
-
Focus Mode:
-
Autofocus
-
Shutter Mode:
-
Electronic Rolling Shutter
-
Output & Power Supply:
-
High Speed USB2.0
Company Video Description
Product Main Parameters
|
Product Name
|
16MP USB2.0 Camera Module
|
|
Product Code
|
WN-L2108.K224S
|
|
Module Size
|
32*32mm
|
|
Image Sensor
|
1/2.8-inch IMX298 CMOS Sensor
|
|
Max. Resolution
|
4656 H x 3496 V
|
|
Pixel Size
|
1.12*1.12μm
|
|
Output Format
|
MJPEG
|
|
Field of View
|
75°
|
|
Lens
|
EFL: 3.3mm, F/No: 2.2, 6P+IR 650nm
|
|
Audio Input
|
Digital Microphone
|
|
Focus Mode
|
Autofocus
|
|
Shutter Mode
|
Electronic Rolling Shutter
|
|
Output & Power Supply
|
High Speed USB2.0
|
|
Interface
|
5PIN 1.25mm Connector
|
|
Controllable Parameters
|
Brightness, Contrast, Saturation, Hue,
Sharpness, Gamma, White Balance, Backlight Contrast, Exposure |
|
Supported OS
|
UVC-compliant, Plug and Play for Windows,
Android, Linux, Mac OS, etc. |
|
Connection Cable
|
Connection Cable
|
PIN Defintions
|
Pin No.
|
Signal Names
|
Descriptions
|
|
1
|
VCC
|
DC 5V
|
|
2
|
DM
|
USB2.0 Data-
|
|
3
|
DP
|
USB2.0 Data+
|
|
4
|
GND
|
Ground
|
|
5
|
GND
|
Ground
|
Supported Resolutions and Frame Rates
|
Formats
|
Resolutions
|
Frame Rates
|
|
|
4656x3496
|
8FPS
|
|
|
4208x3120
|
10FPS
|
|
|
3264x2448
|
10FPS
|
|
|
2592x1944
|
10FPS
|
|
|
2048x1536
|
10FPS
|
|
|
1920x1080
|
15FPS
|
|
|
1280x720
|
15FPS
|
|
|
640x480
|
15FPS
|
Working Conditions
|
Working Voltage
|
DC 5V
|
|
Working Current
|
220mA
|
|
Working Temperature
|
-20°C ~ 60°C
|
|
Storage Temperature
|
-20°C ~ 85°C
|
|
Humidity
|
80 ~85%
|
