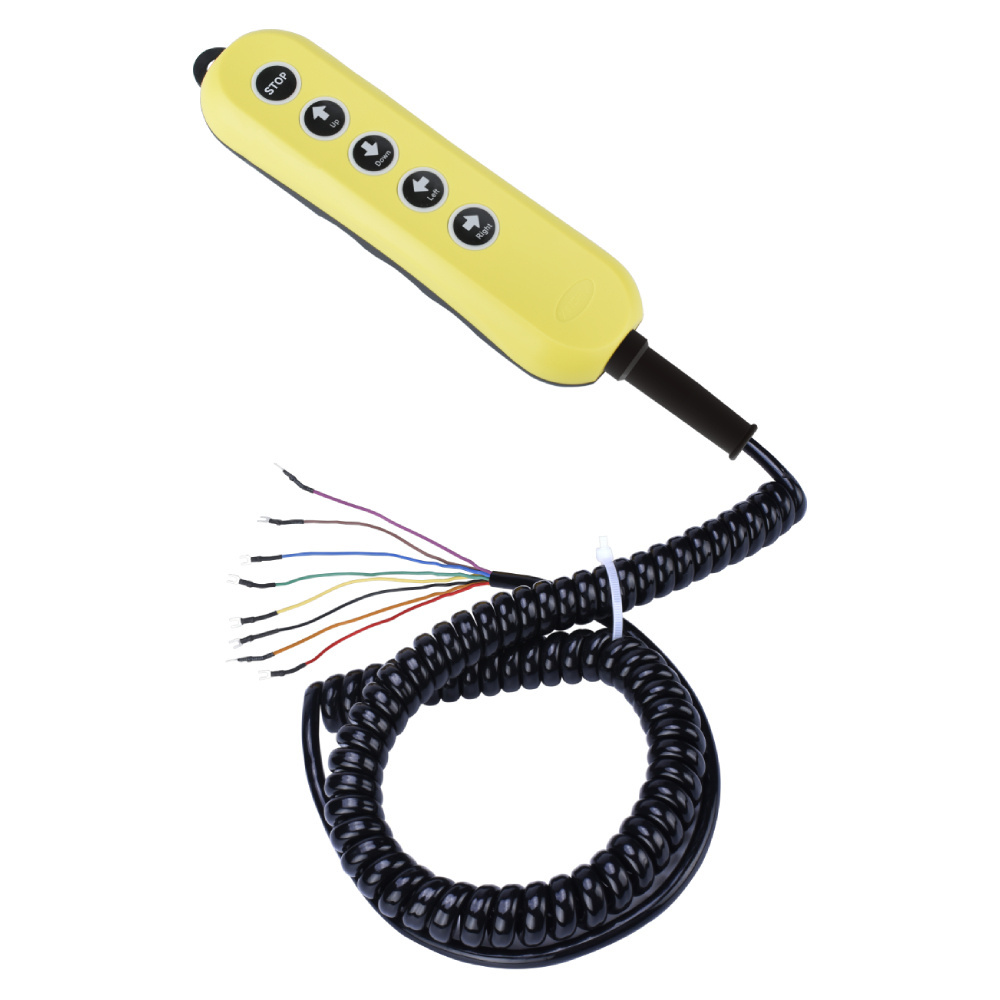

XDL12-F21-S5-T3m 5 keys Industrial electronic Radio Crane Remote Control for Overhead Crane Hoist Lift with spring cable

XDL12-F21-S5-T3m 5 keys Industrial electronic Radio Crane Remote Control for Overhead Crane Hoist Lift with spring cable

FOB Reference Price: Get Latest Price

≥5 Pieces

US $18.9

≥100 Pieces

US $17.6

≥1000 Pieces

US $16.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Protection Level:: IP65

Humidity Range:: <90%RH

Air Pessure:: 86-106kpa

Power Consumption:: <5W

cable line length:: 4 meters

cable type:: 8 coresx0.75mm²

Quick Details

Function:: Waterproof, USB Rechargeable

Brand Name:: xindali

Model Number:: XDL12-F21-S5-T3m

Place of Origin:: Zhejiang, China

Protection Level:: IP65

Humidity Range:: <90%RH

Air Pessure:: 86-106kpa

Power Consumption:: <5W

cable line length:: 4 meters

cable type:: 8 coresx0.75mm²

Product Description

The XDL-12 series electronic control switch box is a new product developed by our company. The series contains multiple specifications, 2 keys, 3 keys, 4 keys, 5 keys, and 7 keys, which can be applied to control the lifting, electric hoists, crane and tailgates.

Our products have many advantages:

1. The XDL-12 series electronic control switch box is easy to assemble and reliable in quality.

2. Using ABS shell material, so it has good toughness, corrosion resistance and strong impact resistance.

3. It has IP65 dustproof and waterproof grade. The product also has passed ROHS, CE certification.

4. The indicator light and buzzer intelligently prompt, which is more efficient and more humane.

5 . Have two installation methods one is divided into bracket installation,and the other is strong magnetic installation 6. It has multi-directional control. Can control equipment more flexibly. The XDL-12 series electronic control switch box is w idely applicable tailgate flatbed ,truck rubbish ,truck mixer, truck Industrial crane,electric hoist, lifting crane ,Port lifting and other application scenarios.

Technical Parameters

Material of Housing	ABS
Protection Grade	IP65
Receiver Power Capacity	Ue:AC/DC12V~72V le:3A
Power Consumption	<5W
Cable Length/Diameter	3M(customizable)/0.5mm²~0.75mm²
Temperature Range	-35℃~+55℃
Humidity Range	<90%RH
Air Pressure	86~106KPa
Weight	2-button/3-button 195g,4-button 210g
Cable length	4 meters
Cable type	8 cores+0.75mm²

Dimensions and Wiring Diagram

Our Company

Certifications

Our Agent

Packing & Delivery

Why Choose Us

What is your MOQ? MOV?
We don’t have MOQ for the standard items. And the MOV for the terms of FOB is 5000USD.

What are your terms of payment?
We accept T/T, L/C payment.

Can I pay by PAYPAL?
Yes, our Paypal account is “sales@xindali.com”

How long is the delivery date?
The standard lead time 2 weeks.

What certifications does this product have?
We have CE, Rohs, UL and TUV approvals.

Are you a manufacturer? Where is the factory?
Yes, we are manufacturer, our factory located in Wenzhou.

Can you do OEM?
Yes, we can offer customized service under OEM.

Why your price is higher than others?
If we are talking about the same qualitiy level, our price will be competitve.

How long is the guarantee of your products?
We have 5 years guarantee.

Do you have water-proof items?
Yes, our XDL22 and XDL722 series are IP65.

Can you provide me with samples for free?
Yes, the samples can be offered as free of charge.

Can you provide certificate of origin?
Yes, we can.

Can you customize the product for me?
Yes, we have our own R&D team and tool centre to make customized products.

Does Xindali have agent?
Yes, we have agent of Xindali brand in Italy, Sweden, Norway, Finland, Russia, Greece, Spain and UK.

What support can I get if I become your agent?
If you will be our agent, you will get the following VIP service,
* Professinal Technical support from Xindali Team
* Special Price support
* Lead Time support
* Samples boards support
* Payment support
