Quick Details
-
Brand Name:
-
Sunpor
-
Model Number:
-
KDE9500E
-
Weight:
-
130KG
-
Brand:
-
Sunpor
-
Product Name:
-

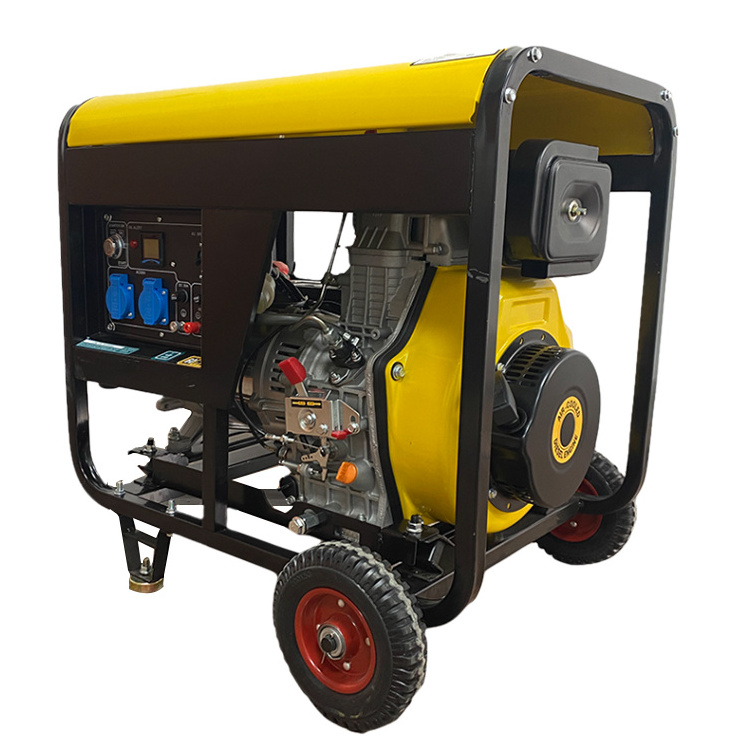

Open Frame Diesel Generator
-
Rated output(kW):
-
6.5 7.0
-
Max.output(kW):
-
7.0 7.5
-
Rated current(A):
-
32.2 33.2
-
Rated voltage(V):
-
220 or as request
-
Overall Dimension(LxWxH)mm:
-
740x505x630
-
Dry Weight(kg):
-
130
-
Rated Power[kW(r/min)]:
-
9.0/3000 9.5/3600
-
Noise Level(7m):
-
77
Quick Details
-
Rated Current:
-
6.5 7.0A
-
Frequency:
-
50 Hz/ 60 Hz
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sunpor
-
Model Number:
-
KDE9500E
-
Weight:
-
130KG
-
Brand:
-
Sunpor
-
Product Name:
-
Open Frame Diesel Generator
-
Rated output(kW):
-
6.5 7.0
-
Max.output(kW):
-
7.0 7.5
-
Rated current(A):
-
32.2 33.2
-
Rated voltage(V):
-
220 or as request
-
Overall Dimension(LxWxH)mm:
-
740x505x630
-
Dry Weight(kg):
-
130
-
Rated Power[kW(r/min)]:
-
9.0/3000 9.5/3600
-
Noise Level(7m):
-
77
Product Description
| DIESEL GENERATOR(OPEN TYPE) | |||||||
| Model | KDE3500E | KDE6500E | KDE7500E | KDE8600E | KDE9500E | KDE10000E | KDE13000E |
| Rated frequency(Hz) | 50/60Hz | ||||||
| Rated output(kW) | 2.5 2.8 | 4.8 5.0 | 4.8 5.0 | 6.0 6.2 | 6.5 7.0 | 8 | 9.5 |
| Max.output(kW) | 2.8 3.0 | 5.2 5.5 | 5.2 5.5 | 6.5 7.0 | 7.0 7.5 | 8.8 | 10 |
| Rated voltage(V) | 220 or as request | ||||||
| Rated current(A) | 11.3 12.7 | 20.5 22.7 | 22.7 23.6 | 27.2 28.2 | 32.2 33.2 | 36.9 | 41.3 |
| Rated speed(r/min) | 3000 3600 | ||||||
| Phase.No | Single Phase | ||||||
| Power factor | 1 | ||||||
| Insulation Grade | F | ||||||
| Pole Number | 2 | ||||||
| Excitation Mode | Self-excitation & constant voltage(AVR) | ||||||
| Panel Type | General Panel | ||||||
| Receptacle | Two receptacles | ||||||
| DC12 output | No | ||||||
| Overall Dimension(LxWxH)mm | 690x480x560 | 730x510x630 | 730x510x630 | 730x510x630 | 740*505*630 | 790x598x730 | 803x583x826 |
| Dry Weight(kg) | 83 | 110 | 115 | 120 | 130 | 130 | 160 |
| Noise Level(7m) | 77 | 77 | 77 | 77 | 77 | 77 | 77 |
| Structure type | Silent | ||||||
| Engine Model | SP178F | SP186FA | SP188FA | SP192FC | SP195FA | SP1100FE | SP1103FE |
| Engine Type | Single Cylinder,vertical,four stroke,direct injection,air cooled | ||||||
| Cylinder NO-Bore*Stroke(mm) | 78*62 | 86*72 | 88*75 | 92*75 | 95*75 | 100*85 | 103*88 |
| Displacement(cc) | 296 | 418 | 456 | 498 | 532 | 670 | 750 |
| Rated Power[kW(r/min)] | 3.68/3000 4/3600 | 5.7/3000 6.3/3600 |
6.5/3000
7.2/3600 |
8.1/3000
8.7/3600 |
9.0/3000
9.5/3600 |
10.5/3000 | 11.5/3000 |
| Compression Ratio | 20:01 | 19:01 | |||||
| Lubrication System | Pressure splashed | ||||||
| Starting system | Recoil or Electrical | Electrical | |||||
| Fuel Type | 0#(summer)-10#(winter) -35(chillness) diesel | ||||||
| Lube oil brand | CD grade or SAE10W-30,15W-40 | ||||||
| Lube capacity (L) | 1.1 | 1.65 | 1.65 | 1.65 | 1.65 | 2 | 2 |
| Fuel Tank Capacity(L) | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
