- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Flatbed Semi Truck Container Trailer
-
Axle:
-
2 /3 Axles*13Ton FUWA/BPW/other
-
Application:
-
1*40ft/1*45/2*20 ft Container / Cargo Loading
-
Capacity:
-
30-80 Tons
-
Function:
-
Heavy Duty Transportation
-
Main Beam Material:
-
Q345/T700
-
Upper Plate Thickness:
-
12mm/16mm
-
Middle Plate Thickness:
-
6mm/10mm
-
Height:
-
500mm
-
Platform Thickness:
-
3mm thick patterned steel plate
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
40-100Ton
-
Brand Name:
-
Changjiu
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Flatbed Semi Truck Container Trailer
-
Axle:
-
2 /3 Axles*13Ton FUWA/BPW/other
-
Application:
-
1*40ft/1*45/2*20 ft Container / Cargo Loading
-
Capacity:
-
30-80 Tons
-
Function:
-
Heavy Duty Transportation
-
Main Beam Material:
-
Q345/T700
-
Upper Plate Thickness:
-
12mm/16mm
-
Middle Plate Thickness:
-
6mm/10mm
-
Height:
-
500mm
-
Platform Thickness:
-
3mm thick patterned steel plate
Products Description
Changjiu Flatbed Semi-trailer is specially used for the transportation of various containers, and it can also use its platform to transport ordinary bulk cargo. It has sufficient strength and is mainly used in transportation systems such as ships, ports, routes, highways, transfer stations, bridges, tunnels and other transportation systems.
The 40ft Flatbed Container Trailer can carry 40ft and two 20ft containers. Flatbed trailer capacities range from 20 to 80 tons and are available in 2, 3 and 4 axles. Customers can change the number of locks according to your own needs.
|
Changjiu 20/40/45/48ft Container Flatbed Semi-trailer Chassis
|
|
|
|
|||
|
Product name
|
20 FT Flatbed Semi-trailer
|
40 FT Flatbed Semi-trailer
|
45 FT Flatbed Semi-trailer
|
|||
|
Product Size
|
7000*2500*1570mm
|
12400* 2500*1570mm
|
13950*2500*1600mm
|
|||
|
Axle
|
2 /3 Axles*13Ton FUWA/BPW/other
|
2 /3 Axles*13Ton FUWA/BPW/other
|
2 /3 Axles*13Ton FUWA/BPW/other
|
|||
|
Application
|
1*20 ft Container or cargo Loading Loading
|
1*40ft/2*20 ft Container/Cargo Loading
|
1*40ft/1*45/2*20 ft Container / Cargo Loading
|
|||
|
Capacity
|
20-60 Tons
|
30-80 Tons
|
30-80 Tons
|
|||
|
Main Beam Material
|
Q345/T700
|
Q345/T700
|
Q345/T700
|
|||
|
Upper Plate Thickness
|
12mm
|
16mm
|
16mm
|
|||
|
Middle Plate Thickness
|
6mm
|
10mm
|
10mm
|
|||
|
Lower Plate Thickness
|
14mm
|
18mm
|
18mm
|
|||
|
Height
|
500mm
|
|
|
|||
|
Platform Thickness
|
3mm thick patterned steel plate
|
|
|
|||
|
Leaf Spring
|
90mm*13mm*10/90mm*16mm*10
|
|
|
|||
|
Kin Pin
|
50#(2")/90#(3.5") JOST/Other Brand
|
|
|
|||
|
Landing Gear
|
28 Tons Two Speed,JOST/Other Brand
|
|
|
|||
|
Twist Lock
|
4 Sets
|
8 Sets
|
8 Sets
|
|||
|
Suspension System
|
Mechanical or Air Suspension
|
|
|
|||
|
Tire
|
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other
|
|
|
|||
|
Rim
|
9.00*22.5 (8/12 Pieces) Steel/Aluminum
|
|
|
|||
|
Tool Box
|
Steel or Aluminum
|
|
|
|||
|
Painting
|
Electrophoresis paint
|
|
|
|||
|
If you want to know more details,please contact us directly
|
|
|
|
|||

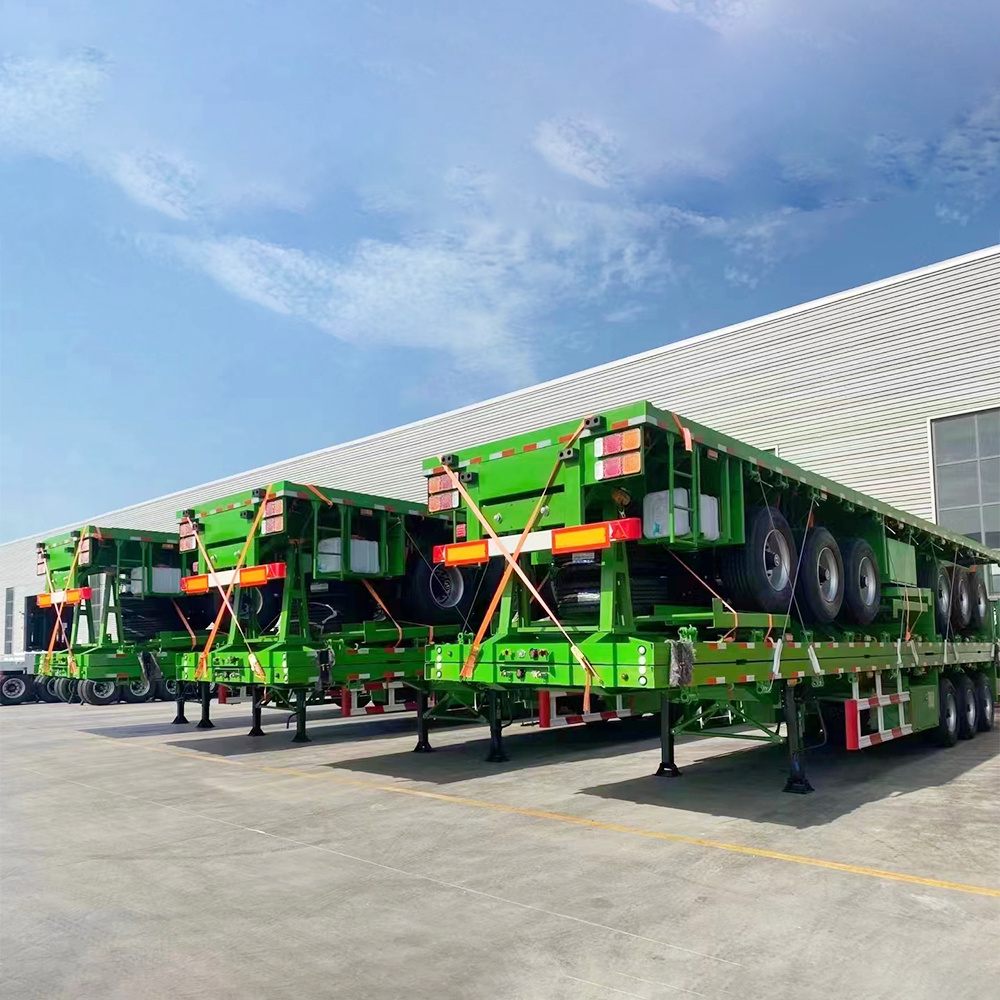

Product display
Product details
Application
Packaging&shipping
Sea freight method.
1. Bulk cargo, without dismantling any components, shipped as a whole. Advantage: Moderate price, complete shipment
But the product is susceptible to seawater erosion.
2. Container transportation is cheap and can effectively protect machinery during transportation.
Need to disassemble the machinery,you need to assemble it yourself after receiving the goods
3. Frame container transportation is similar to container transportation Frame containers can transport ultra-high machinery.
4. Ro-ro transportation.
The product is in the cargo hold and has strong protection, but the price is expensive
Company resume
Our factory
FAQ
1. Who are we?
We are based in Shandong, China, start from 2007,sell to Africa(30.00%),Mid East(20.00%),Southeast Asia(20.00%),South America(10.00%),South Asia(5.00%),Eastern Asia(5.00%),Eastern Europe(2.00%),North America(2.00%),Southern Europe(1.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Trailer Axle,Landing Gear,Container Chassis Flatbed Trailer,Lowbed Trailer,Rear Dump Tipper Trailer
4. Why should you buy from us not from other suppliers?
Shandong Changjiu Heavy Industry Machinery Co., Ltd.
was established in 2007 and has 15 years of experience in the production of semi-trailers, lowbed trailer, trailer axles, mechanical suspensions and other trailer spare parts. Our products have been favored by customers.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
