Quick Details
-
Voltage:
-
380v
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
UVANPACK
-
Dimension(L*W*H):
-
1600mm(L)*650mm(W)*900mm(H)
-
Weight:
-
180 KG
-
Machinery Capacity:
-
100b/m
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Stainless Steel
-
Function:
-
Customized Adhesive Sticker Labeling
-
Model:
-
TBK-630
-
Speed:
-
100(b/m)(max)
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE
Quick Details
-
Application:
-
Beverage, Chemical, Commodity, Food, cosmetic
-
Packaging Type:
-
Bottles
-
Packaging Material:
-
Plastic
-
Voltage:
-
380v
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
UVANPACK
-
Dimension(L*W*H):
-
1600mm(L)*650mm(W)*900mm(H)
-
Weight:
-
180 KG
-
Machinery Capacity:
-
100b/m
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Stainless Steel
-
Function:
-
Customized Adhesive Sticker Labeling
-
Model:
-
TBK-630
-
Speed:
-
100(b/m)(max)
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE
. Detailed Product Description

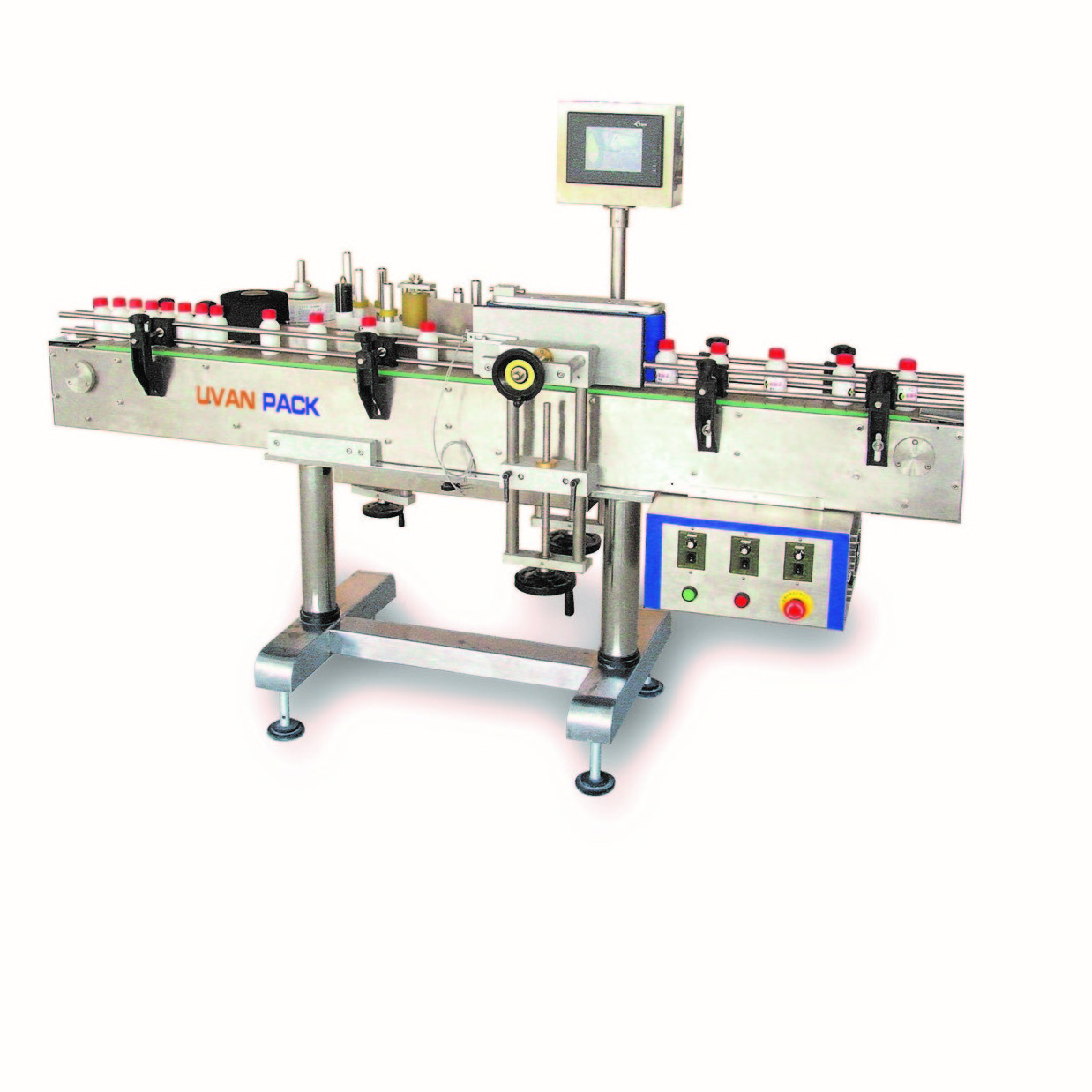

This machine is suitable for any round or cylinder bottles labeling. PLC control program achieves easily operation. Touch screen makes easy reading and excellent looking. More than 10 groups of labeling parameters saved, makes setting rapidly. The whole machine is made of advanced stainless steel and aluminum alloy. Anti-rust and conforming to GMP standard.
The machine is suitable for attaching a presure-sensitive adhesiv lable to cytidrical bottle of wine ,medicine ,drinking ,chemicals,agrochemicals etc. It adapts photo,machinery and electricity to control .it features simple structure and operation,attachingaccuracy ,reliable propecy ,small power and no noise.
I. Main Performance Parameter:
Parameter
| · Applicable bottle diameter | Φ20-Φ98mm |
| · heigh of lable | 20-120mm |
| · length of lable | 20-300mm |
| · speed of labeling | 0-20m/m≤100b/m |
| · Measure precision | ±1mm |
| · Power source | ~220V 50Hz |
| · Total power | 0.8KW |
| · Weight | 260kg |
| · External dimensions | 1600×650×900(L×W×H)mm |
Sample bottles show
1. Installation, training and start-up by Our Factory Service Engineer is available.
2. With UVANPACK’s service engineers, you can feel confident in our professional knowledge and years of experience. If you have any service request, spare parts ordering, or other questions, please contact us.
3. We always send our service engineers to customer's factory to install and adjust machine, at the same time our engineers will train the workers of client and teach them knowledge about management machine.
4. The customer pays the travelling expenses, food, and accommodation. We welcome clients send their workers to our company study. It's free to study machine on our factory. Our machines are very easy to operate and manage. Worker can operate and manage these machines after they study.
