QCX2 (LE1-D)
-
Electricity Type:
-
AC
QCX2 LE1-D EKF KME LE1-D09 LE1-D12 LE1-D18 LE1-D25 LE1D-32 LE1-D40 LE1-D50 LE1-D65 LE1-D80 LE1-D95 IP65 Magnetic Starter
Application
QCX2 (LE1-D) series magnetic starter is suitable for starting and stopping 3-phase squirrel-cage motor in the circuit of AC 50/60Hz, rated insulation voltage 690V, under AC3 utilization category, rated operational voltage 380V, rated operational current range from 9A to 95A. The magnetic starter with thermal overload relay are protect AC 3-phase motor against overland and phase losing.

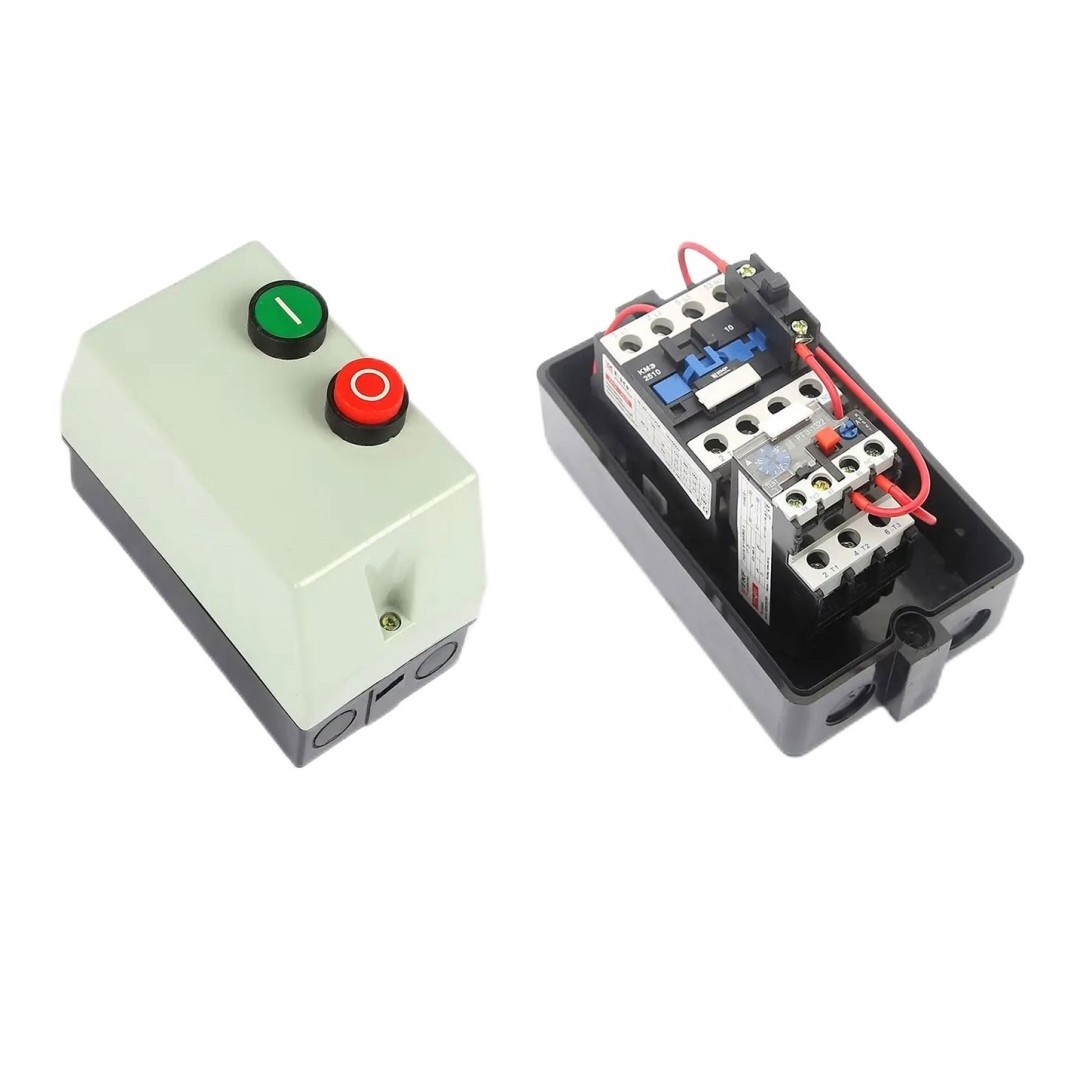

QCX2 (LE1-D) Magnetic starter has a case with protection category IP65, JRS4 (LR2D) thermal overload relay connect with terminals through three wires, and fix together with CJX2 (LC1-D) contactor. There are two buttons on the case, green one is “turn on” , red one is “turn off ” or“reset ”.
| Type |
Rated
Current(A) |
Maximum Power AC3 duty (KW) | SuitableThermal Relay(A) | |||||
|
220V
230V |
380V
400V |
415V | 440V | 500V |
660V
690V |
|||
| QCX2-9 | 9A | 2.2KW | 4 KW | 4 KW | 4 KW | 5.5 KW | 5.5 KW |
LR2-D1312
LR2- D1314 |
| QCX2-12 | 12A | 3 KW | 5.5 KW | 5.5 KW | 5.5 KW | 7.5 KW | 7.5 KW | LR2- D1316 |
| QCX2-18 | 18A | 4 KW | 7.5 KW | 9 KW | 9 KW | 10 KW | 10 KW | LR2- D1321 |
| QCX2-25 | 25A | 5.5 KW | 11 KW | 11 KW | 11 KW | 15 KW | 15 KW |
LR2-
D1322
LR2- D2353 |
| QCX2-32 | 32A | 7.5 KW | 15 KW | 15 KW | 15 KW | 18.5 KW | 18.5 KW | LR2- D2355 |
| QCX2-40 | 40A | 11 KW | 18.5 KW | 22 KW | 22 KW | 22 KW | 30 KW |
LR2-
D3353
LR2- D3355 |
| QCX2-50 | 50A | 15 KW | 22 KW | 25 KW | 30 KW | 30 KW | 33 KW |
LR2-
D3357
LR2- D3359 |
| QCX2-65 | 65A | 18.5 KW | 30 KW | 37 KW | 37 KW | 37 KW | 37 KW | LR2- D3361 |
| QCX2-80 | 80A | 22 KW | 37 KW | 45 KW | 45 KW | 55 KW | 45 KW |
LR2-
D3363
LR2- D3365 |
| QCX2-95 | 95A | 25 KW | 45 KW | 45 KW | 45 KW | 55 KW | 45 KW | LR2- D3365 |
