- Product Details
- {{item.text}}
Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZ CAD
-
Place of Origin:
-
Shandong
-
Brand Name:
-
AOKE
-
Weight (KG):
-
35 KG
-
Marking Area:
-
110*110/ 200*200/300mm*300mm
-
Core Components:
-
source
-
Product name:
-

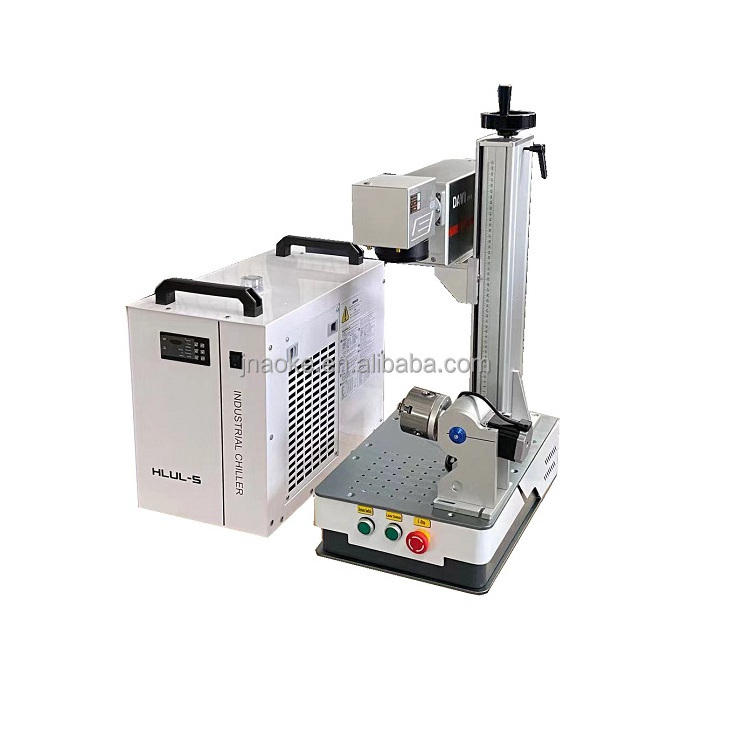

3D UV 5W 10W Uv Laser Marking Machine
-
Laser Power:
-
UV 5W 10W 3D 2.5D 2D
-
Keywords:
-
Fiber Lsaer Marking Machine
-
Function:
-
Marking Logo Metal Non Metal
-
Laser wavelength:
-
355nm 1064nm 10.6um
-
Marking Speed:
-
0~7000mm/s
-
Working area:
-
300*300MM /200*200MM / 175*175MM /110*110MM
-
Software:
-
EZCAD 2 / EZCAD 3
-
Galvo head:
-
Sino Galvo 1001/ 7110 ? 3D head
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Laser Type:
-
UV
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZ CAD
-
Place of Origin:
-
Shandong
-
Brand Name:
-
AOKE
-
Weight (KG):
-
35 KG
-
Marking Area:
-
110*110/ 200*200/300mm*300mm
-
Core Components:
-
source
-
Product name:
-
3D UV 5W 10W Uv Laser Marking Machine
-
Laser Power:
-
UV 5W 10W 3D 2.5D 2D
-
Keywords:
-
Fiber Lsaer Marking Machine
-
Function:
-
Marking Logo Metal Non Metal
-
Laser wavelength:
-
355nm 1064nm 10.6um
-
Marking Speed:
-
0~7000mm/s
-
Working area:
-
300*300MM /200*200MM / 175*175MM /110*110MM
-
Software:
-
EZCAD 2 / EZCAD 3
-
Galvo head:
-
Sino Galvo 1001/ 7110 ? 3D head
UV 3W 5W 10W Huaray Jpt Davi laser source wood plastic glass stone and metal.UV laser marking machine
|
Item / Model |
UV 3W 5W 10W Huaray Jpt Davi laser source wood plastic glass stone and metal.UV laser marking machine |
|
Laser source |
Domestic Raycus(Germany IPG/China Raycus/MAX/JPT Mopa color marking for optional) |
|
Laser power |
3w 5w 10w 15w UV
|
|
Working size |
110*110mm/ 175*175mm /200*200mm /300*300mm or other |
|
Laser type |
UV 355nm
|
|
Graphic Format Supported |
PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,DXF |
|
Marking speed |
≤12000mm/S |
|
Max.Marking Depth |
0-1mm |
|
Laser Wavelength |
355nm |
|
Marking lines |
1-10 marking lines(in the marking area) |
|
Minimum line width |
0.01mm(0.004in) |
|
Minimum character |
0.15mm |
|
Resolution ratio |
0.001mm() |
|
Graphic format supported |
BMP, PLT, DST, DXF, AI |
|
Software supported |
CorelDraw, Photoshop, AutoCAD |
|
Net Weight |
30- 90KGS(different model has different weight,detailed ) |
|
Standard parts |
USB cable, flash disk with software, Protection glasses , foot pedal, 30cm ruler, Retaining clip , outside red light |
|
Optional Spare Parts |
Rotary ( selected according to requirement) D80 100mm 125mm 160mm , ring rotary, pen rotaryand conveyor |
Packaging : Standard plywood or carton packages to keep safe and clean.
Shipping:
After payment is completed, your order will be shipped within 3 days
We use express ups, dhl, ems, fedex, and the package will reach your hand in 3-12 business days.
