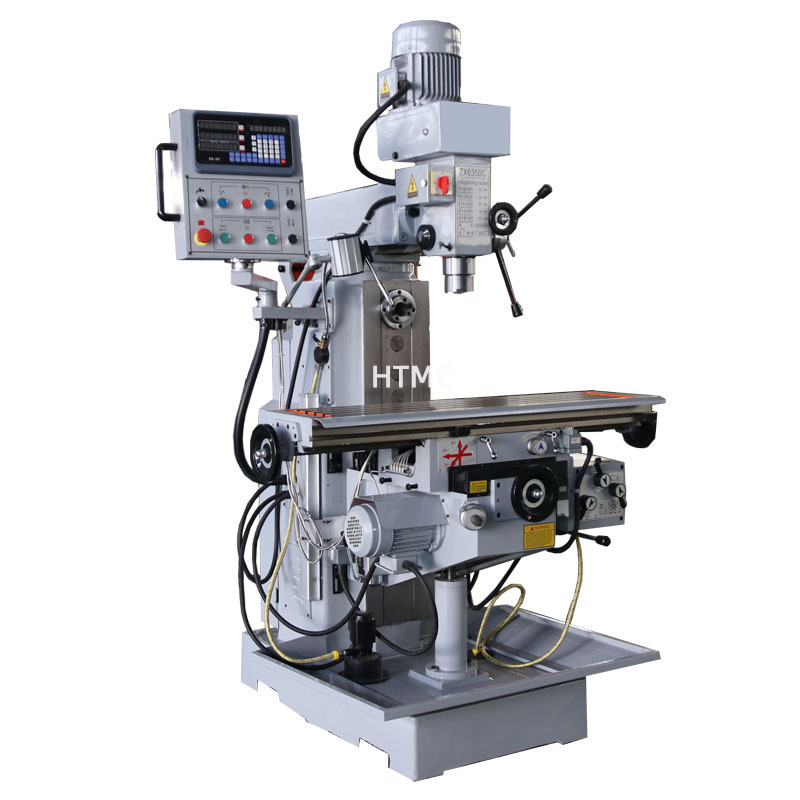

Drilling and milling machine ZX6350C multifunctional drilling and milling machine metal drilling and milling.

Drilling and milling machine ZX6350C multifunctional drilling and milling machine metal drilling and milling.

FOB Reference Price: Get Latest Price

≥1 Sets

US $3857

≥5 Sets

US $3800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Range of Spindle Speed(r.p.m):: 40 - 1440 r.p.m

Place of Origin:: Shandong, China

Brand Name:: HTMC

Model Number:: ZX6350C

Table Travel (mm):: 1200x280

Year:: 2023

Spindle Motor Power(kW):: 1.5/2.2

Voltage:: 380V

Weight (KG):: 1000

Quick Details

Table Travel (X) (mm):: 600

Table Travel (Y) (mm):: 310

Table Travel (Z) (mm):: 380

Range of Spindle Speed(r.p.m):: 40 - 1440 r.p.m

Place of Origin:: Shandong, China

Brand Name:: HTMC

Model Number:: ZX6350C

Table Travel (mm):: 1200x280

Year:: 2023

Spindle Motor Power(kW):: 1.5/2.2

Voltage:: 380V

Weight (KG):: 1000

Product Paramenters

Specifications(mm)	ZX6350C	ZX6350D	ZX6350A
Max. drilling dia.(mm)	50	50	50
Max. end milling width(mm)	100	100	100
Max. vertical milling dia.(mm)	25	25	25
Max.boring dia.(mm)	120	120	120
Max. tapping dia.(mm)	M16	M16	M16
Distance from spindle nose to table surface(mm)	80-460	80-460	80-460
Spindle taper	MT4	MT4	MT4
Spindle speed range(r.p.m)	36-1526(V) 40-1300(H)	36-1526(V) 40-1300(H)	36-1526(V) 40-1300(H)
Spindle travel(mm)	120	120	120
Table size(mm)	1200×280 Optional: 1500x280
Table travel(mm)	600×280 Optional: 1000x280
Table feed speed(mm/min)	X:16-480	X/Y:22-555	X/Y:22-555 Z:300
Overall dimensions (mm)	1500×1600×2200	1500×1600×2200	1500×1600×2200
Spindle motor power (kw)	1.5/2.2(V) 3(H)	1.5/2.2(V) 3(H)	1.5/2.2(V) 3(H)
Machine weight (kg)	1300/1400	1350/1450	1400/1500

Product Details

handpiece

Gear drive, strong power, milling head installed in the front end of the slide arm, can move back and forth, not only in the vertical plane to turn around 45 degrees, but also in the bed 360 degrees, with good processing gimbal

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Y-axis cutter and Z-axis cutter are available

Automatic feed

ZX6350 drilling and milling machine is divided into (ZX6350C drilling and milling machine one-way automatic feed, ZX6350D drilling and milling machine two-way automatic feed, ZX6350A drilling and milling machine before and after, around the automatic feed and electric lifting, users according to their own production needs to choose the required machine tool model and function)

Digital scale
