Quick Details
-
Model Number:
-
BC-TE2123RWP-HFB BC-TE213RW-2F3
Quick Details
-
Special Features:
-
NIGHT VISION, Waterproof / Weatherproof
-
Function:
-
NIGHT VISION, Waterproof / Weatherproof
-
Customized support:
-
Online technical support, Customized logo, Software reengineering, OEM, ODM
-
Model Number:
-
BC-TE2123RWP-HFB BC-TE213RW-2F3

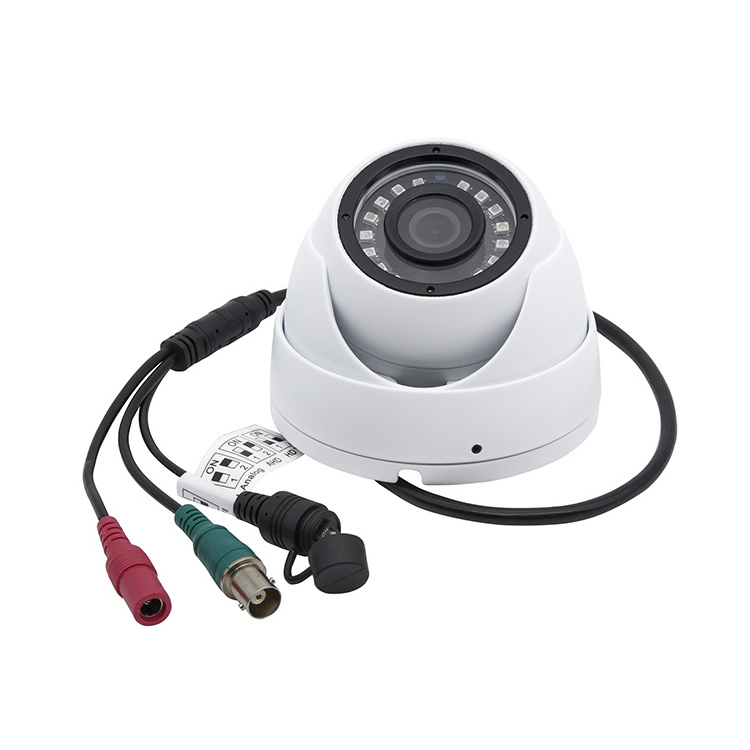

Product Description
Features:
★2MP/TVI / CVI / AHD / CVBS 4 in 1 Solution
★2.8 mm Fixed Lens
★1/2.9'' Cmos Sensor
★Support 2D NR/ 3D NR/Sense-up Functions etc.
★High-Quality IR Cut Filter
★18pcs SMT IR Leds, 15m IR Distance
★Water-proof: IP 66
★Support UTC Control Function
Specification
|
Specifications:
|
|
|
MODEL:
|
BC-TE213RW-2F3
|
|
Image Sensor:
|
1/2.9'' Cmos Sensor
|
|
Built-in Lens:
|
2.8mm Fixed Lens
|
|
Signal System:
|
PAL/NTSC
|
|
Horizontal Resolution
|
PAL:1920x1080P@25F/S
NTSC:1920x1080P@30F/S |
|
Sync. System:
|
Internal Sync.
|
|
Video Output:
|
TVI / CVI / AHD / CVBS 4in1 Switching Signal Output/1.0Vp~p75Ω
|
|
OSD Function
|
Yes(2D NR/ 3D NR/Sense-up.)
|
|
S/N Ratio:
|
More than 50dB (AGC OFF)
|
|
White Balance:
|
Auto Tracking White Balance
|
|
Shutter Speed:
|
1/25~1/50,000Sec.
|
|
Illumination for Infrared Switching:
|
3 Lux
|
|
Infrared Wavelength:
|
850nm
|
|
Mimimum Illumination:
|
0Lux(Infrared Lamps Turn on)
|
|
IR Leds:
|
18pcs SMT IR Leds
|
|
IR Radiation Distance:
|
15m
|
|
Weather-proof:
|
IP66
|
|
Working Temperature:
|
-10℃~50℃
|
|
Storage Temperature:
|
-20℃~60℃
|
|
Power Requirement:
|
DC12V, Max Power Comsumption Less Than 10W
(When the infrared lamps turn on) |
|
Weight:
|
0.52kg
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
