Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FOSVISION
-
Model Number:
-
FS-S4K-W-4M-2CH
-
Product name:
-

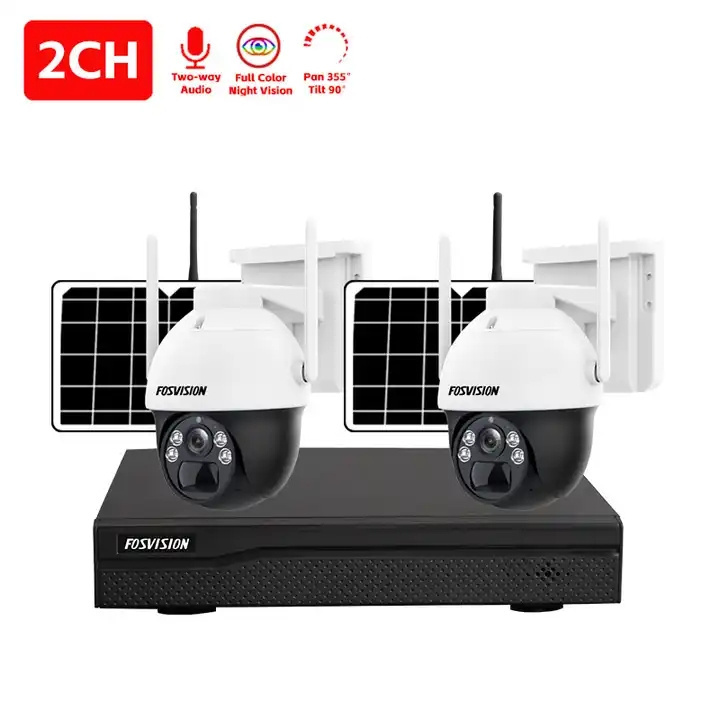

Wireless NVR Set
-
Keyword:
-
4MP WIFI Camera System
-
Lens:
-
3.6mm
-
Night vision:
-
30M IR Distance+Full Color
-
Channel:
-
4 Channel Wifi NVR
-
WiFi:
-
Standard Camera Connection
-
Key Feature1:
-
4CH Digital Wireless Camera
-
Storage:
-
1*Max 6TB HDD SATA
-
Video Output:
-
1ch VGA+1ch HDMI
Quick Details
-
Network:
-
Wireless KIT
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Special Features:
-
NIGHT VISION, Two-way Audio, Motion Detection, Waterproof / Weatherproof
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FOSVISION
-
Model Number:
-
FS-S4K-W-4M-2CH
-
Product name:
-
Wireless NVR Set
-
Keyword:
-
4MP WIFI Camera System
-
Lens:
-
3.6mm
-
Night vision:
-
30M IR Distance+Full Color
-
Channel:
-
4 Channel Wifi NVR
-
WiFi:
-
Standard Camera Connection
-
Key Feature1:
-
4CH Digital Wireless Camera
-
Storage:
-
1*Max 6TB HDD SATA
-
Video Output:
-
1ch VGA+1ch HDMI
Product Description
Specification
|
Item
|
2Ch wireless NVR
|
|
|
|
NVR resolution
|
4MP
|
|
|
|
Video Input
|
2Ch
|
|
|
|
operating system
|
LINUX OS
|
|
|
|
Screen menu
|
1/4 screen (4Ch NVR)
|
|
|
|
registration mode
|
Manual / programmable / motion
|
|
|
|
Compression format
|
264 (720 P) or 265 (1080 P)
|
|
|
|
playback sync
|
4-channel
|
|
|
|
Connect
|
Automatic connection between NVR and IPC
|
|
|
|
OSD language
|
English, German, French, Spanish, Italian, Japanese, etc.
|
|
|
|
Support HDD
|
3.5-inch SATA port, maximum capacity 4TB (HDD not included)
|
|
|
|
WIFI
|
Integrated WIFI module with two 5db antenna parts, high performance and high stability
|
|
|
|
Connection distance
|
100 m (open), 20 m (obstacles)
|
|
|
|
WiFi Protocol
|
802.11b / g / n, dual WiFi antennas
|
|
|
|
Power consumption
|
<= 5 W (without hard disk)
|
|
|
|
APP OS
|
Support for Android / iOS phone or pad
|
|
|
|
Protocol
|
HTTP SMTP PPPOE FTP ... UPnP ... Onvif
|
|
|
|
NVR size (L * W * H)
|
40(W)X28(H)X17.4(D)cm
|
|
|
|
NVR weight
|
3.53kg
|
|
|
|
Power supply
|
12 V / 2A
|
|
|
|
Item
|
Wireless IP Camera
|
|
|
|
Image sensor
|
1/2.8 progressive scan sensor
|
|
|
|
Resolution
|
4mp
|
|
|
|
Pixels
|
4mp
|
|
|
|
Focus
|
3.6mm fixed lens
|
|
|
|
Day and night
|
Double filter ir-cut circuit
|
|
|
|
Minimum illumination
|
0.1Lux (IR); 0.01Lux (B / W)
|
|
|
|
IR distance
|
6 units LED IR, 15-20 meters
|
|
|
|
Video standard
|
264 /265
|
|
|
|
Bit rate
|
32 Kbps ~ 4 Mbps supports CBR / VBR
|
|
|
|
frame
|
15fps
|
|
|
|
Privacy mask
|
4 Configurable regions
|
|
|
|
WiFi Protocol
|
802.11b / g / n 150Mbps
|
|
|
|
Operating conditions
|
-30 ° C ~ 60 ° C, humidity 95% or less (no condensation)
|
|
|
|
Power supply
|
12 VDC 10%, power consumption 6 6 W
|
|
|
|
Housing material
|
Aluminum alloy, IP66 waterproof
|
|
|
