Quick Details
-
Brand Name:
-
fangpower
-
Final Drive:
-
shaft-drive
-
Drive Line Type:
-
4x2
-
Ignition System:
-
D.C.D.I
-
Suspension:
-
Front: double A-Arm, Rear: FANG POWER 4 Link Bar rear suspension
Quick Details
-
Tire Size:
-
25x8-12 / 25x10-12
-
Dimension:
-
2700x1450x1750mm (106x57x69in)
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
fangpower
-
Final Drive:
-
shaft-drive
-
Drive Line Type:
-
4x2
-
Ignition System:
-
D.C.D.I
-
Suspension:
-
Front: double A-Arm, Rear: FANG POWER 4 Link Bar rear suspension
|
Model
|

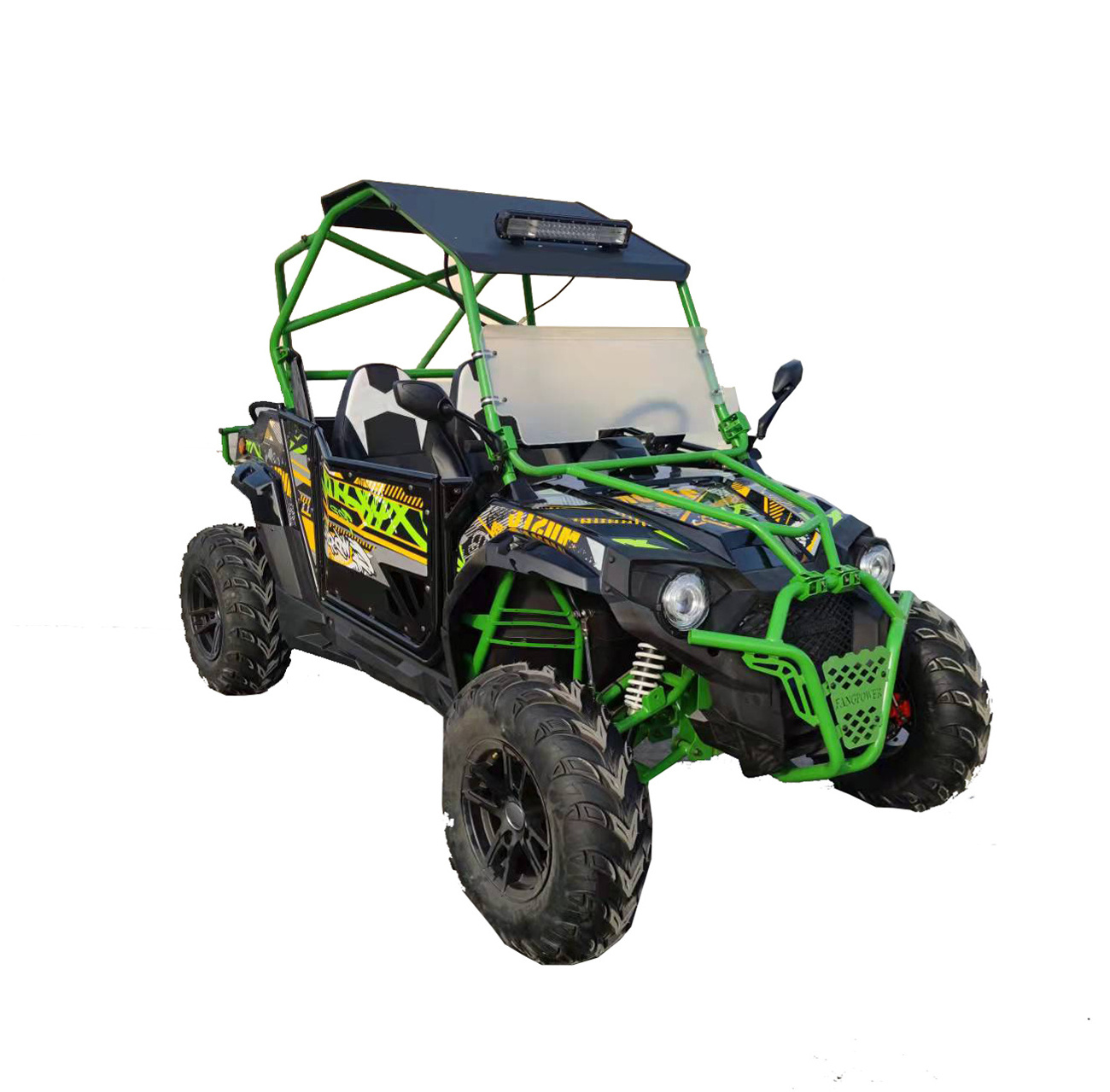

FXE UTV 2 seats
|
SUSPENSION/BRAKES
|
||
|
Rated Rower
|
72V 5kw (3-5 kw available) DC PM Motor
|
Suspension Front
|
Adjustable Double A-arm optional
|
|
|
Power battery
|
lithium iron phosphate 76.8V 106Ah (Customermised available)
|
Suspension Rear
|
Fangpower 4-link®bar Rear Suspension
|
|
|
Controller
|
72V 300A Programmable Multi-Mode Controller
|
Brakes Front
|
220MM Front Dual Hydraulic Disk
|
|
|
On-board charger
|
100-240V AC input; 72V/17A DC output CAN2.0
|
Brakes Rear
|
220MM Rear Dual Hydraulic Disk
|
|
|
Charging time
|
5H
|
Steering
|
Rock and pinion steering
|
|
|
Battery water proof grade
|
IP67
|
|||
|
|
TIRES
|
|||
|
Controller Area Network
|
CAN2.0
|
Front Tread
|
1250mm(49.2 in)
|
|
|
Rear Tread
|
1150mm(45.2in)
|
|||
|
Front & Rear tire size
|
25x8-12 / 25x10-12
|
|||
|
DRIVETRAIN
|
Front& Rear rim size(Alloy)
|
12x6/12x8
|
||
|
Drivenline Type
|
2x4
|
MISC
|
||
|
Final Drive
|
Shaft-drive
|
Loading information
|
2 units/20″; 12units/40HQ
|
|
|
Transmission
|
Constantly Variable Transmission
|
Top speed
|
75km/h
|
|
|
Gear Selection
|
F-N-R
|
Dry weight
|
400kgs
|
|
|
ELECTRICAL SYSTEM
|
Gross weight
|
470kgs
|
||
|
Speed/Fuel meter
|
LED meter
|
Wheel Base
|
1980mm (78in)
|
|
|
Battery
|
12 AH 12V
|
Vehicle dimension(L×W×H)
|
2700x1450x1750mm (106x57x69in)
|
|
|
Forward Lights
|
Headlights-High&Low Beam LED LIGHT
|
Packing size
|
2290x1400x815mm
|
|
|
Rear Lights
|
Brake Lights& Left/Right Signal Lights
|
Ground clearance
|
300mm(11.8in)
|
|
|
Starting system
|
Electric start
|
Safety
|
Driver & Passenger Seat belts/ Driver and Passenger safety steel door.
|
|
|
Ignition system
|
D.C.D.I
|
|||
Details I
Details II
Details III
Q1. What is your terms of payment?
A: T/T ,30% as deposit, and 70% T/T before delivery.
Q2. How about your delivery time?
A: Generally, it will take 30 days after receipt of payment. Some specific delivery time depends on the models and the quantity of your order.
Q3: Can I mix different models in one container?
A: Yes, different models can be mixed in one container.
Q4: How does your factory do regarding quality control?
A: Every product will be fully assembled and carefully tested before it's packed for shipment.
Q5:Can I order spare parts?
A:We have all the parts list available for our models.
A: T/T ,30% as deposit, and 70% T/T before delivery.
Q2. How about your delivery time?
A: Generally, it will take 30 days after receipt of payment. Some specific delivery time depends on the models and the quantity of your order.
Q3: Can I mix different models in one container?
A: Yes, different models can be mixed in one container.
Q4: How does your factory do regarding quality control?
A: Every product will be fully assembled and carefully tested before it's packed for shipment.
Q5:Can I order spare parts?
A:We have all the parts list available for our models.
