Quick Details
-
Brand Name:
-
newbase
-
Model Number:
-
CG220208, CG220208
-
Car Make:
-
truck bus coach car vehicle, bus,truck,agriculture machinery
-
Power supply:
-
DC24V/DC12V
-
Power:
-
3W
-
Display:
-
LED
-
Protection:
-
IP43
-
EMC:
-
EN50081&EN50082-2
-
Certificate:
-
CE,ISO9001
-
Mode:
-
Cooling&Warming controller
-
Application:
-
Car Air Conditioner System
Quick Details
-
OE NO.:
-
NB
-
Warranty:
-
12 Months
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
newbase
-
Model Number:
-
CG220208, CG220208
-
Car Make:
-
truck bus coach car vehicle, bus,truck,agriculture machinery
-
Power supply:
-
DC24V/DC12V
-
Power:
-
3W
-
Display:
-
LED
-
Protection:
-
IP43
-
EMC:
-
EN50081&EN50082-2
-
Certificate:
-
CE,ISO9001
-
Mode:
-
Cooling&Warming controller
-
Application:
-
Car Air Conditioner System
Products Description

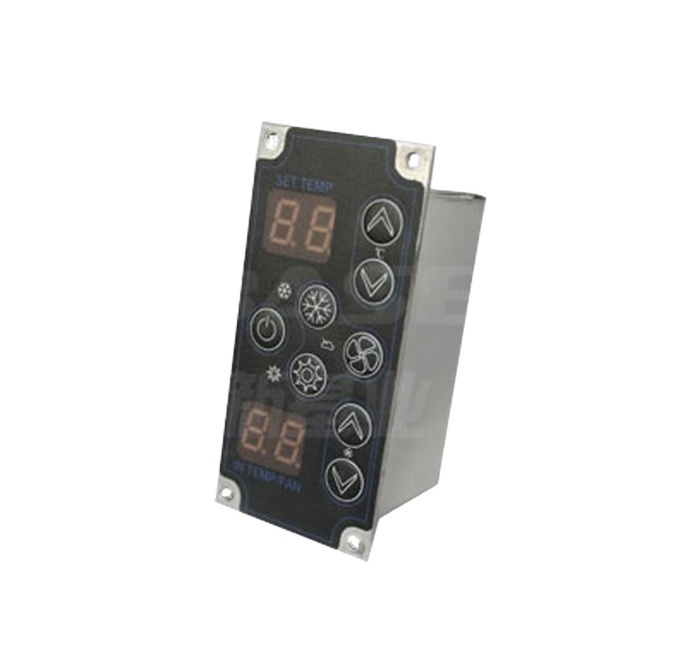

CG220208 dual digital-display controller applies to interal climate control for construction vehicles and truck,bus,passanger car.etc.
bus air condition controller
1.Special Advanced Functions For Your Reference
1)Main functions: Fully-automatic control ,Cooling ,Heating ,Fresh air ,Error alarm
,Evaporator fan 3-grade adjustment ,Compel cooling
2.Application:
KINGTECH
3.Detailed Product Description:
bus air condition controller
1.Special Advanced Functions For Your Reference
1)Main functions: Fully-automatic control ,Cooling ,Heating ,Fresh air ,Error alarm
,Evaporator fan 3-grade adjustment ,Compel cooling
2.Application:
KINGTECH
3.Detailed Product Description:
|
Technical data
|
CG220208
|
|
Power supply
|
DC12V/24V (DC10V-DC15V)(DC20V-DC32V)
|
|
Power consumption
|
3W
|
|
Current
|
Max.350mA
|
|
Dimensions(mm)
|
45x95x45
|
|
Input
|
1)Interior temp. sensor (25 °c ,Rb=5k,b=3274)
2)Defrost sensor (25 °c ,Rb=5k,b=3274) 3) Pressure sensor 4)A/C power(Generator) 5)ACC (battery) 6)Backlight power |
|
Output
(In evaporator fan mode) |
1) Fan high( Max.0.3A)
2)Fan medium ( Max.0.3A) 3)Fan low ( Max.0.3A) 4)Fresh air on(Max.0.3A) 5)Compressor clutch(Max.0.3A) 6)Heating( Max.0.3A ) |
|
Display
|
LED
|
|
Ambient temperature
|
-30°c—80°c 5%-95%RH Non-condensing
|
|
Storage temperature
|
-10°c—70°c 5%-95%RH Non-condensing
|
|
Display precision
|
±1 °c .
|
|
Temperature test standard
|
Temp. control based on the temp. of return air inlet, the defrost sensor controls defrost temp., defrost on at 2 °c ,defrost off
at 4°c |
|
Connector
|
Plug 5569-14A
|
|
Faceplate level
|
IP43
|
|
EMC level
|
EN50081&EN50082-2
|
|
Security level
|
Applied to EN61010-II,Pollution degree :II
|
|
Weight
|
308g
|
|
CUSTOM A/C heater control units for vehicle transport refrigeration van passenger car auto bus truck 12/24V hvac control module
Bus air conditioning control panel: Bus Internal Climate Control (Successful Case: YUTONG,Winia mando,Hyundai,Yuxin automative air conditioner) Main function: Manual operation, cool, fresh air, error alarm, air-flow regulation, linear temp. setting. (can be customized as your requiry) Application case: (can be customized as your requiry) Technical date (can be customized as your requiry) |
1) Purport:
Supply the excellent Vehicle environment control product and advance technology
2) Fast delivery and service
NEWBASE set the branch office or sales agent around the world.The professional engineers would be available for your
application.Our technical people would make model-selection or design suggestion and help you get the most suitable product.
3) AE technology support:
NEWBASE technology support engineers help you to install and test the system,meanwhile,with adequate knowledge and experience in
HVAC system,they could answer you the other questions about AC system.
4) After sale service:
NEWBASE offer super technical support for after sales,they are knowledgeable enough to replease you from you the after-sales
trouble.
2) Fast delivery and service
NEWBASE set the branch office or sales agent around the world.The professional engineers would be available for your
application.Our technical people would make model-selection or design suggestion and help you get the most suitable product.
3) AE technology support:
NEWBASE technology support engineers help you to install and test the system,meanwhile,with adequate knowledge and experience in
HVAC system,they could answer you the other questions about AC system.
4) After sale service:
NEWBASE offer super technical support for after sales,they are knowledgeable enough to replease you from you the after-sales
trouble.
