Quick Details
-
Power:
-
12.85 KW
-
Dimension(L*W*H):
-
1330B*1010L*653Hmm(max)
-
Product name:
-

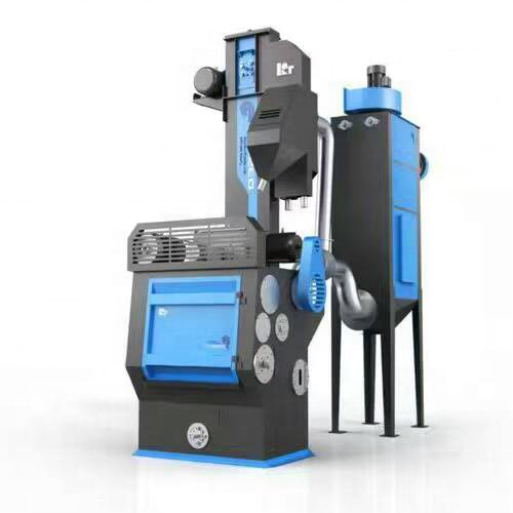

Tumble Belt Shot Blasting Machine
-
Cleaning capacity:
-
≤0.1m3 and ≤200Kg
-
Blasting volume:
-
110Kg/min
-
Shot blasting model:
-
QY360
-
Elevating quantity:
-
10t/h
-
wind speed:
-
4-5m/min
-
End plate diameter:
-
650mm
-
Ventilation:
-
1800m3/h
-
Consumption:
-
~ 0.1 m3/min
-
Compressed gas:
-
0.6-0.8MPa
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KAiTAI
-
Weight (KG):
-
1000 KG
-
Power:
-
12.85 KW
-
Dimension(L*W*H):
-
1330B*1010L*653Hmm(max)
-
Product name:
-
Tumble Belt Shot Blasting Machine
-
Cleaning capacity:
-
≤0.1m3 and ≤200Kg
-
Blasting volume:
-
110Kg/min
-
Shot blasting model:
-
QY360
-
Elevating quantity:
-
10t/h
-
wind speed:
-
4-5m/min
-
End plate diameter:
-
650mm
-
Ventilation:
-
1800m3/h
-
Consumption:
-
~ 0.1 m3/min
-
Compressed gas:
-
0.6-0.8MPa
tumble belt steel shot blasting machine / small casting parts surface cleaning machine of Q32 Type
Q32 series abrade cleaning up machine has the advantages of advanced design,reasonable structure small enery consumption and high efficiency.
Model Number: Q32 Machine Type: Abrator Cleaning Type: Clean-In-Place (CIP) Cleaning Process: steel shot, steel grit use burnishing Industry Used: Electronic Industry Fuel: Electric Material: Metal / Coil Feature: shot blasting machine, blast cleaning equipment Certification: CE compact structure: small energy structure
|
parameter |
UNIT |
Q326 |
Q3210 |
QR3210 |
|
Productivity |
T/h |
0.6-1.2 |
3-5 |
1.5-2.5 |
|
Loading weight |
kg |
200 |
600 |
600 |
|
The maximum weight of one piece |
kg |
10 |
30 |
30 |
|
Diameter |
mm |
650 |
1000 |
1000 |
|
Available capacity |
m³ |
0.15 |
0.4 |
0.3 |
|
Pill impelling volume |
kg/min |
100 |
250 |
250 |
|
Dedusting air volume |
m³/h |
2200 |
6000 |
5000 |
|
Power dissipation |
kw |
12.6 |
32.6 |
24.3 |
|
Dimensions |
mm |
3681x1650x5800 |
3644x2926x5856 |
3972x2600x4768 |
|
Machine total weight |
kg |
2340 |
5843
|
7400 |
Q 1: Do you have after-sale service?
A : yes, we do.
Q 2: How long can your spare parts be used?
A: Blade, control cage and distributor are high chrome, and can be used for more than 2000 hours.
Kinds of guard board can be used for more than 3000 hours.
Q 3: Where is your factory?
A: We are near Jinan Airport, you are welcome to be Jinan Airport and then we will arrange car to pick you up there. Sincerely welcome here to investigate our factory in person.
In order to give you the suitable machine , pls provide below message for us :
1. What is your workpiece and the material and the shape ?
2.The Max. Length/Width/Height of the workpiece and the MAX./MIN.weight of your workpiece ?
3.The productivity you need to blasting the workpiece ( how many T or piece per day or per month?)
4. The power supply you need( Our China :380V, 3PH, 50HZ)
5. Better to send us the workpiece photo or drawing.
