Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KEYA
-
Model Number:
-
KY215ACS0440-15B
-
Torque:
-
25.4N.m
-
Certification:
-
ce
-
Product:
-
brushless dc motor 48v 72v 4kw 5kw bldc motor
-
Protection Grade:
-
IP54
-
Max over load:
-
three times
-
temperature grade:
-
H
-
cooling ways:
-
air cooling
-
working mode:
-
S2 - 60min
-
feedback:
-
Hall sensor
-
key words:
-
4kw bldc motor
Quick Details
-
Speed(RPM):
-
1500rpm
-
Continuous Current(A):
-
104A
-
Efficiency:
-
Ie 3
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KEYA
-
Model Number:
-
KY215ACS0440-15B
-
Torque:
-
25.4N.m
-
Certification:
-
ce
-
Product:
-
brushless dc motor 48v 72v 4kw 5kw bldc motor
-
Protection Grade:
-
IP54
-
Max over load:
-
three times
-
temperature grade:
-
H
-
cooling ways:
-
air cooling
-
working mode:
-
S2 - 60min
-
feedback:
-
Hall sensor
-
key words:
-
4kw bldc motor

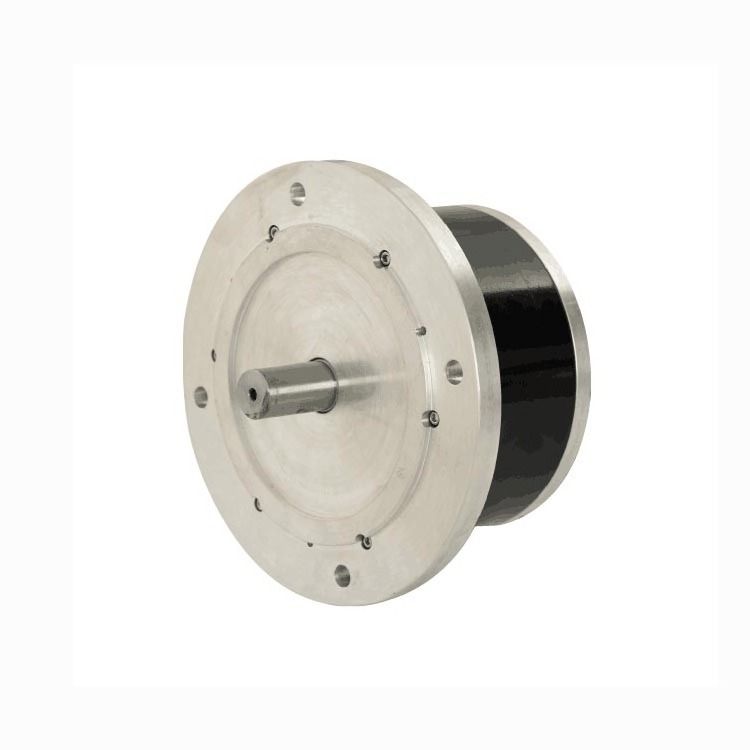

dc motor with hall sensor brushless dc motor 48v 72v 4kw 5kw bldc motor for electric trackless vehicle car
Model: KY215ACS0440-15B
| Product Description |
|
*Brushless servo motor
|
|
*Compact size
|
|
*High efficiency, power factor 0.85
|
|
*High torque density
|
|
*Lower rotational inertia
|
|
*Small volume and light weight
|
| *The structure of the motor is conductive to the cooling of the motor core and winding |
|
*Be widely used in electric vehicle, electric boat, wind power generation equipment, industry equipmetn.
|
|
Work Environment: |
|
1. Altitude less than 1000M.
2. Environment temperature: -25℃~+60℃ 3. The most moist month average relative humidity should less than 90%, and this month's average lowest temperature should less than 25℃. |
| Specification for KY215ACS0440-15B | |
| Rated voltage |
DC48V
|
| Rated power | 4000w |
| Rated speed | 1500rpm |
| Rated current |
104A |
| Rated touque | 25.5N.m |
| Peak Torque |
51N.m |
| Working mode |
S2 60min
|
| Protection |
IP54 |
| Number of poles |
4 pairs |
| Incremental encoder |
2500ppr
|
| Brake |
24V, 25N.m, Brake released when powered |
| Weight |
20kg |
|
Product Overview
|
Power wiring
| Yellow | GREEN | BLUE |
| U | V | W |
Brake wiring
| Brake | Black |
| Brake | Black |
Temperature sensor
| Two cabel | |
|
Matched worm gearbox
|
dc motor with hall sensor brushless dc motor 48v 72v 4kw 5kw bldc motor for electric trackless vehicle car
|
Related products
|
| Model | Rated power/w | Rated volt/V | Rated speed/rpm | Rated Current/A | Rated Torque/N.m | Brake | Encoder |
| KY190BL0202-15 | 2000W | 24V | 1500RPM | 110A | 12.7N.m | NO | NO |
| KY190BL0202-15B | 2000W | 24V | 1500RPM | 110A | 12.7N.m | YES | NO |
| KY190BLS0202-15 | 2000W | 24V | 1500RPM | 110A | 12.7N.m | NO | YES |
| KY190BLS0202-15B | 2000W | 24V | 1500RPM | 110A | 12.7N.m | YES | YES |
| KY210BL0404-15 | 4000W | 48V | 1500RPM | 104A | 25.5N.m | NO | NO |
| KY210BL0404-15B | 4000W | 48V | 1500RPM | 104A | 25.5N.m | YES | NO |
| KY210BLS0404-15 | 4000W | 48V | 1500RPM | 104A | 25.5N.m | NO | YES |
| Certification |
|
Company information
|
Jinan Keya Electron Science and Technology Co., Ltd, founded in 2001, has been trading in the research &development, manufacturing and sales of DC motor and control system for 15 years.
Company set technology, talent, management and other resources advantages, to effectively integrate, has maintained a healthy, stable and rapid growth.
The company has adopted ISO9001:2008 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to the United States, Europe, Southeast Asia and other countries.
|
Our Service |
We devote ourself to Research & Development, welcome Costom-made products, if you need some unusual products, let's have further communication.
Delivery time: 5-7 working days after receive the payment
dc motor with hall sensor brushless dc motor 48v 72v 4kw 5kw bldc motor for electric trackless vehicle car
| Products Application Cases Display |
dc motor with hall sensor brushless dc motor 48v 72v 4kw 5kw bldc motor for electric trackless vehicle car
| FAQ |
1. Q: What are your main products?
A: We produce various kinds of BLDC motor & controller.
2. Q: How long have you been in this field?
A: More than 15 years in this field.
3. Q: Do you have your own R&D team?
A: Yes. R&D is our core competitiveness, continuous innovation is just what we are seeking for all the time. Some of our engineers have more than 20years experience in the industry, and we also cooperate with colleges, scientific research institutions and large enterprises.
4. Q: How soon can you deliver the goods?
A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days.
5. Q: Can you make the product according to customer’s requirements?
A: Yes, welcome costom-made products.
6. Q: What is your payment term?
A: You can pay by TT, Paypal, Western Union.
| Contract |
Thank you for your visiting, when you need further more information, kindly contact Nancy directly , the detail information will be provided for you within 1 hours.
