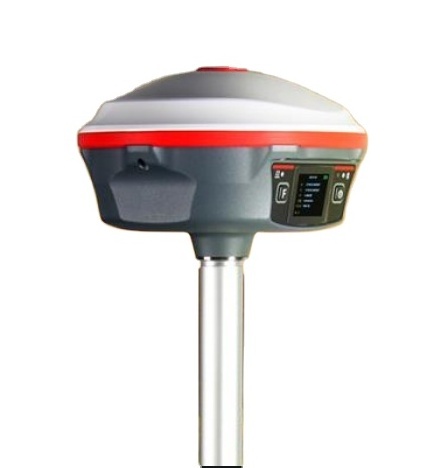

Popular south Kolida K30PRO gps gnss rover and base station receiver rtk of 1598 channels IMU

Satellites Signals Tracked Simultaneously

Signal tracking

1598 channels

GPS: L1C/A,L2P,L2C,L5,L1C*

GLONASS:G1,G2,G3*

BeiDou: B1, B2, B3;

GALILEO: E1,E5b,E5a,E5 AltBoc*,E6c*

SBAS:L1C/A,L5*, IRNSS: L5, QZSS: L1 、L2C、 L5、L5

GNSS Features

Postioning output rate: 1Hz~50Hz Initialization time:<10s
initialization reliability: >99.99%.
RTCM 2.1,RTCM 2.3 RTCM 3.0 RTCM 3.1
RTCM 3.2 CMR,CMR+,NMEA 0183, PJK plane coordinates, Binary code, Trimble GSOF

L-Band Correction Service

Star-fill: 5 minutes, down to 2 cm accuracy. Star-Link: down to 2cm accuracy (need subscription) Inertial Measurement: Tilt angle:
up to 60 degrees. accuracy: down to 2cm

Positioning precision

Code differential GNSS positioning

Horizontal: 0.25 m + 1 ppm RMS Vertical: 0.50 m + 1 ppm RMS

SBAS positioning accuracy: typically<5m 3DRMS

Static GNSS surveying

Horizontal: ±(2.5mm+0.5×10-6 D) Vertical: ±(5.0mm+0.5×10-6 D)

RTK surveying

Horizontal: ±(8mm+1×10-6 D) Vertical: ±(15mm+1×10-6 D)

Network RTK

Horizontal: ±8mm+0.5ppm Vertical: ±15mm+0.5ppm

Horizontal

8mm+1ppm RMS

Vertical / RTK Initialization time

15mm+1ppm RMS/ 2-8s

User Interaction

Operating Tine

Linux

Buttons

Double button operation

Indicator

Five indicators light

Web UI

Freely to configure and monitor the receiver by accessing to the Web server via WIFI or USB

Voice guide

Ivoice intellight voice technology provides status and voice guide. Supporting Chineses, Korean, Russian, Portuguese, Spanish,
Turkish and user define

Secondary development

Providing secondary development kit

Hardware Performance

Dimension(W*H)

165mm×108mm

Weight

1.3kg(two batteries included)

Material

Magnesium aluminum alloy shell

Operating

-45℃~+75℃

Storage

-55℃~+85℃

Humidity

100% non-condensing

Waterproof/Dustproof

IP67 Standard, protected from short time immersion to depth of 1m

IP67 Standard, fully protected against blowing dust

Shock&Vibration

withstand 2 meters pole drop onto the cement ground naturally

Power Supply

9-25V DC, overvoltage protection

Battery

Rechargeble , Lithium-ion battery, 7.4V Dual batteries hot-swappable

Battery Life

Dual batteries>14h (static mode), >10h(internal UHF base mode), >12h(rover mode)

Communications

I/O port

5pin LEMO external power port+RS232, 7 PIN external USB(OTG)+Ethernet, 1 radio antenna interface, SIM card slot

Wireless modem

Built-in radio, 1w/2w/3w switchable, typically work range can be 8km. "Barrier-Free" measurement technology: Repeater/Router/CSD
mode

Frequency Range

410-470MHz

Communication Protocol

TrimTalk450S, TrimMark3, South(Kolida)

Cellular Mobile network

WCDMA/CDMA2000/TDD-LTE/FDD-LTE 4G network modem, downward compatible with 3G GPRS/ EDGE

Double Module

4.0standard, support for android, IOS cellphone connection. 2.1+EDR standard

NFC Communication

Realizing close range (shorter than 10cm) automatic pair between receiver and controller(controller equipped NFC wireless
communication module needed)

External Devices

Optional external GPRS/EDGE dual-mode communication module, switchable; Allow to connet external WLAN card

WIFI

Standard

802.11b/g standard

WIFI Hotspot

The WIFI hotsopt allows smart mobile terminal to connect and access to the internal webserver to control and monitor receiver

WIFI data link

To work as the datalink that receiver is able to broadcast and receive differential data via WIFI

Data storage/Transmission

Data Storage

8GB SSD internal storage, support external USB storage(up to 32GB) and outomatical cycle storage, Changeable record interval, up
to 50Hz raw data collection

Data Transmission

USB data transmission, support FTP/HTTP data download

Data Format

Differential data format: CMR+, CMR×, RTCM2.1, RTCM2.3, RTCM3.0, RTCM3.1, RTCM3.2. GPS output data format: NMEA0183, PJK plane
coordinates, Binary code, Trimble GSOF. Network model support: VRS, FKP, MAC, Fully support NTRIP protocol

Inertial sensing system

Tilt Survey

Built-in tilt compensator, correcting coordinates automatically according to the tilt direction and angle of the centering rod

Electronic Bubble

Controller software display electronic bubble, checking leveling status of the centering rod real time

Thermometer

Built-in thermomter sensors, adopting intelligent temperature control technology which can monitor and adjust the temperature of
receiver in real time
