Quick Details
-
Applicable Industries:
-
Industrial heating
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
THD
-
Dimension(L*W*H):
-
840*130*175mm
-
Weight:
-
11.7 KG
-
Working Temperature Range:
-
30 - 500 ℃
-
Core Components:
-
Ceramic plates
-
Product name:
-
Radiant industrial lpg burner for spary booth
-
Nozzle:
-
Brass
-
Burning plate:
-
Ceramic with rare-earth catalyst
-
Working pressure:
-
2800~5000pa
-
High efficiency:
-
Start work in 8 seconds
-
Plate lifespan:
-
Above 11000hrs
-
Heat transfer rate:
-
Above 95%
-
Heat output:
-
8120Kcal
-
Application:
-
Industrial oven, power coating oven, curing oven, baking oven
Quick Details
-
Type:
-
Infrared Heater
-
Power Source:
-
NG, LPG
-
Voltage:
-
110V/220V
-
Applicable Industries:
-
Industrial heating
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
THD
-
Dimension(L*W*H):
-
840*130*175mm
-
Weight:
-
11.7 KG
-
Working Temperature Range:
-
30 - 500 ℃
-
Core Components:
-
Ceramic plates
-
Product name:
-
Radiant industrial lpg burner for spary booth
-
Nozzle:
-
Brass
-
Burning plate:
-
Ceramic with rare-earth catalyst
-
Working pressure:
-
2800~5000pa
-
High efficiency:
-
Start work in 8 seconds
-
Plate lifespan:
-
Above 11000hrs
-
Heat transfer rate:
-
Above 95%
-
Heat output:
-
8120Kcal
-
Application:
-
Industrial oven, power coating oven, curing oven, baking oven

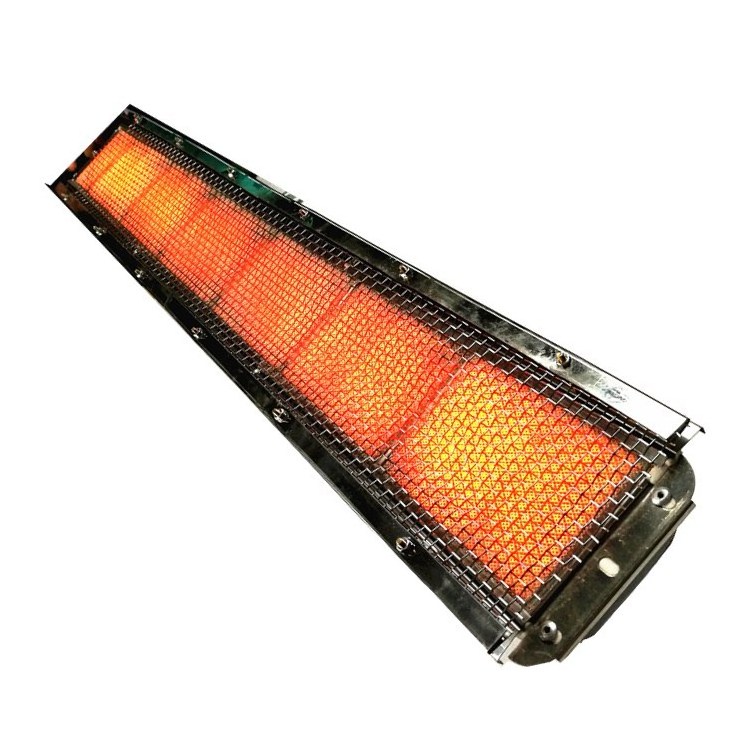

Industrial propane infrared catalytic gas burner heads
details
There are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big. But, differently, infrared gas burner heat object directly by radiation and transfer rate will be much higher, usually it can save 10~20% gas energy and cost.
|
Model
|
Dimension
|
Weight
|
Gas type
|
Heat Output
|
|
Consumption
|
|
||
|
Engine
|
mm
|
kg
|
|
KW/h
|
Kcal/h
|
NG (m3/h)
|
LPG (kg/h)
|
||
|
HD162
|
570*130*175
|
8
|
LGP/NG
|
6.3
|
5400
|
0.49
|
0.45
|
||
|
HD242
|
840*130*175
|
11.7
|
LGP/NG
|
9.4
|
8120
|
0.75
|
0.68
|
||
|
HD262
|
930*130*175
|
13
|
LGP/NG
|
10.9
|
9360
|
0.8
|
0.74
|
||
Industrial propane infrared catalytic gas burner heads
materials:
1. Shell: Galvanized steel
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron
5.Working pressure: NG:2000~5000pa;LPG:2800~5000pa
Infrared catalytic burner used for powder coating oven.
Infrared catalytic burner used for powder coating oven.
Infrared catatlytic burner used for paper drying oven
Infrared catalytic burner used for latex glove drying oven.
Infrared lpg catatlytic used for conveyor food oven baking.
Infrared catatlytic burner used for food baking.
20% gas consumption saved, less gas Emission
The Infrared lpg burner applied catalyst technology on ceramic plates, which make burning fully and save 20% gas than normal gas burner.
Besides, it make less gas emission.
We are the Only Chinese company use catalytic on infrared gas burner.
