Quick Details
Quick Details
-
Place of Origin:
-
Guangdong, China, Guangdong, China (Mainland)
-
Model Number:
-
CDBM1500/3C
-
Brand Name:
-
OMS, OMS

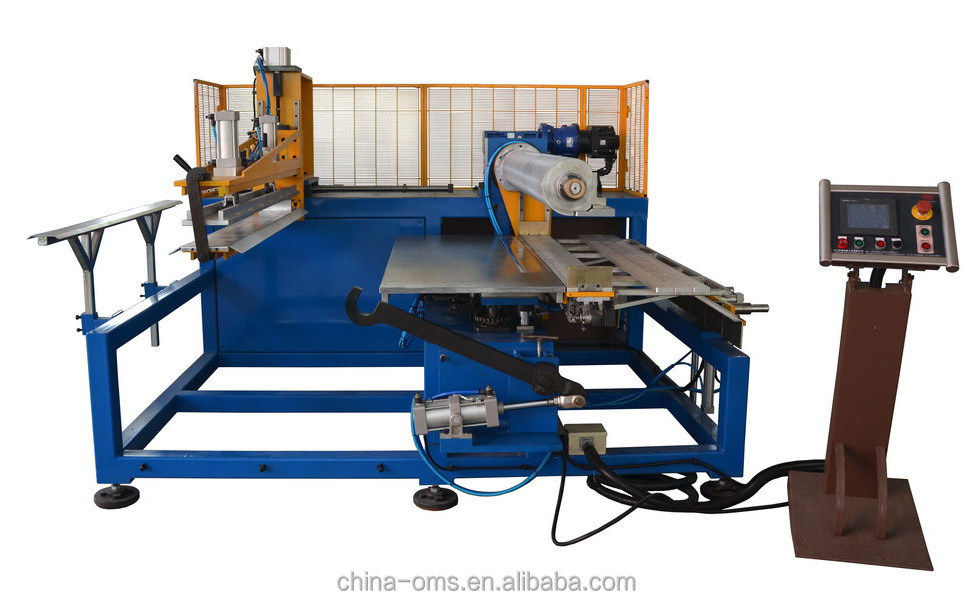

Coil bending machine,
Use: used to bend condenser at an angle and make them change "L" shape, "U" shape
or "G" shape to fulfill overall design in air conditioner and the requirement of product
technique
Feature:
1) Three axes CNC, accurately locate, steadily bend
2) High automation degree, convenient adjustment
3) The fines do not fall easily
4) To replace bending radius conveniently
|
Technical parameter |
||
|
No. |
Item |
Content |
|
1 |
bending shape |
"L";"U";"G"(1~3 bends) |
|
2 |
Max Thickness of coil ( each layer) |
25.4mm |
|
3 |
Max layers number |
3 |
|
4 |
Bending radius (R) |
R90 and R125 |
|
5 |
Bending angle |
0-120° |
|
6 |
Angle precision |
±1° |
|
7 |
locating mode |
Servo locating |
|
8 |
Max width of coil |
MAX 1200mm |
|
8 |
Clamping lift stroke of coil |
225mm |
|
9 |
stroke of platform up and down |
0 - 225mm |
|
10 |
range of applicable bending coil |
according to customer's drawing |
|
11 |
Bending power |
Servo motor 2KW |
|
12 |
Coil feeding at second or third times |
Servo motor 1KW |
|
13 |
Platform lifting power |
Servo motor 1.5kw |
|
14 |
Efficiency |
t <15sec/bend ( Not including manual loading and unloading time) |
|
15 |
Electric Cabinent cooling |
Air conditioner |
|
16 |
Compressed air pressure |
0.4-0.6Mpa |
|
17 |
Overall size |
2100mm*2300mm*1600mm |
|
18 |
Total power |
≤ 5KW |
|
19 |
Power supply |
220V/3PH/60HZ |
