Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
China
-
Brand Name:
-
HX
-
Model Number:
-
110ZYT WITH NMRV40/75
-
Torque:
-
2.23Nm
-
Product Name:
-
PMDC MOTOR
-
color:
-
blue or silver
-
Rated Voltage:
-
12/24/48V
-
Noise:
-
60db
-
Application:
-
boat or car
-
Diameter:
-
90MM
-
Function:
-
Driven Equipment
-
bearing:
-
C&U
-
pole:
-
4
-
Keywords:
-
High Torque Gear Motor
Quick Details
-
Speed(RPM):
-
1500rpm
-
Continuous Current(A):
-
8-40A
-
Efficiency:
-
IE 2
-
Warranty:
-
1 year
-
Place of Origin:
-
China
-
Brand Name:
-
HX
-
Model Number:
-
110ZYT WITH NMRV40/75
-
Torque:
-
2.23Nm
-
Product Name:
-
PMDC MOTOR
-
color:
-
blue or silver
-
Rated Voltage:
-
12/24/48V
-
Noise:
-
60db
-
Application:
-
boat or car
-
Diameter:
-
90MM
-
Function:
-
Driven Equipment
-
bearing:
-
C&U
-
pole:
-
4
-
Keywords:
-
High Torque Gear Motor

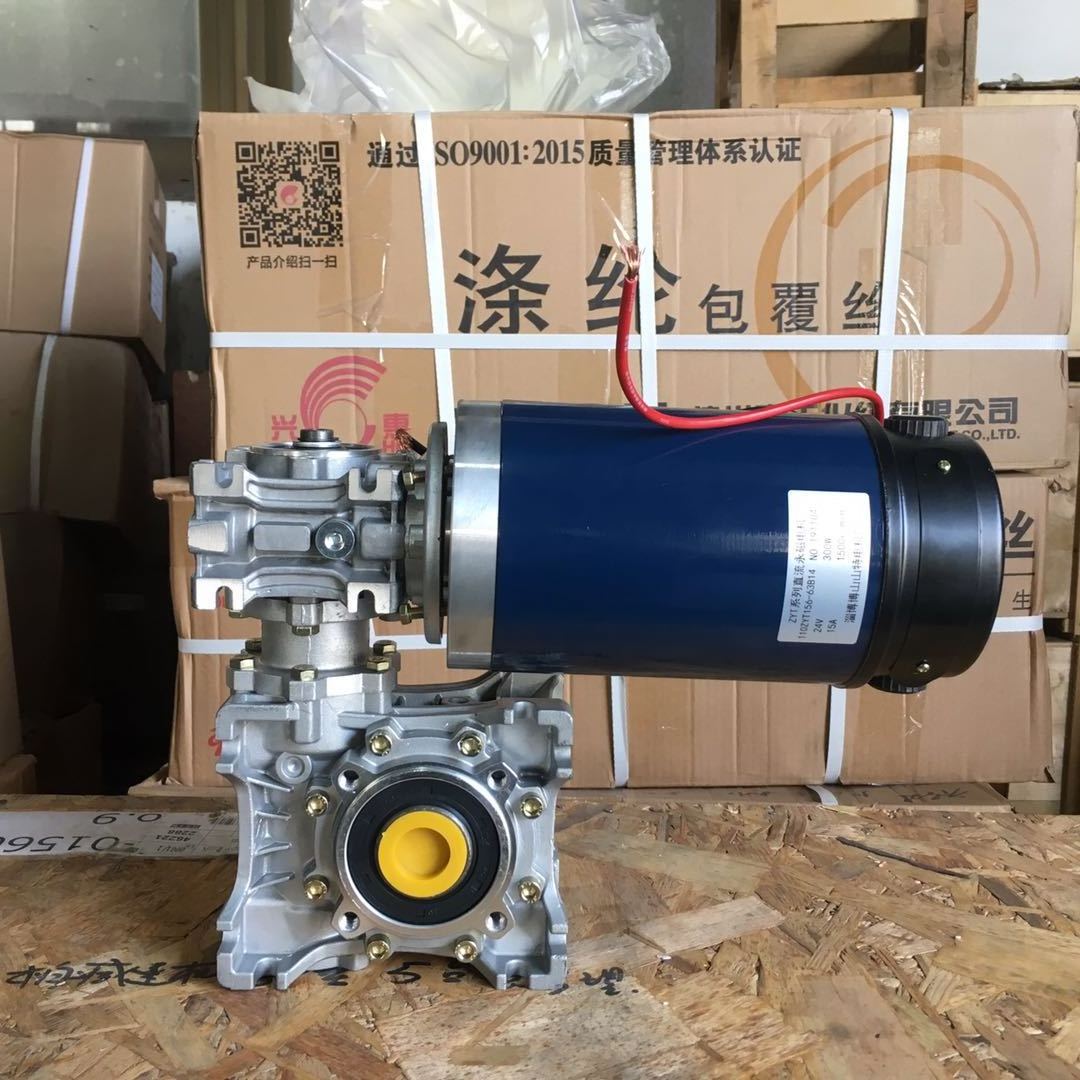

Motor photo:
Motor introduce:
PMDC Motor is made of high quality cast.With optimized construction design,they can ensure the requirement of structure rigidity and intensity. Silicon steel plate is used in stator core and rotor core.It has good insulation on surface,low loss which ensures the higher efficiency.High quality insulation material combines the perfect insulation system which makes the insulation completely without clearance,high rigidity of the winding end,it can endure switching and reversing intensity. F class insulation makes the motor with higher heat stability and longer life.
Gearbox introduce:
YE2-71 series motor Specifications:
| Model |
rated voltage |
load speed | output power | rated torque | stall torque |
| 110ZYT56 | 12V/24V/48V | 1450rpm | 150W | 1.24Nm | 5Nm |
| 110ZYT106 | 12V/24V/48V | 1450rpm | 250W | 1.73Nm | 8Nm |
| 110ZYT156 | 12V/24V/48V | 1450rpm | 400W | 2.23Nm | 12Nm |
We provide customized voltage, winding, shaft, mounting, and lead configurations
Options for EMI/RFI suppression circuit; Thermal protection, Electrical brake, Optical encoder
110ZYT56 with NMRV40-75 series gear motor specification
| ratio | 100 | 200 | 300 | 400 | 600 | 800 | 1000 | 1500 | 2000 | 3000 | 5000 |
| rated speed | 15 | 7.5 | 5 | 3.7 | 2.5 | 1.8 | 1.5 | 1 | 0.7 | 0.5 | 0.3 |
| rated torque | 82 | 152 | 215 | 261 | 309 | 372 | 413 | 640 | 960 | 1420 | 2410 |
110ZYT106 with NMRV40-75 series gear motor specification:
| ratio | 100 | 200 | 300 | 400 | 600 | 800 | 1000 | 1500 | 2000 | 3000 | 5000 |
| rated speed | 15 | 7.5 | 5 | 3.7 | 2.5 | 1.8 | 1.5 | 1 | 0.7 | 0.5 | 0.3 |
| rated torque | 131 | 243 | 344 | 417 | 494 | 595 | 661 | 1024 | 1520 | 2270 | 2600 |
110ZYT156 with NMRV40-75 series gear motor specification
| ratio | 100 | 200 | 300 | 400 | 600 | 800 | 1000 | 1500 | 2000 | 3000 | 5000 |
| rated speed | 15 | 7.5 | 5 | 3.7 | 2.5 | 1.8 | 1.5 | 1 | 0.7 | 0.5 | 0.3 |
| rated torque | 164 | 304 | 430 | 522 | 618 | 744 | 826 | 1280 | 1920 | 2600 | 2600 |
