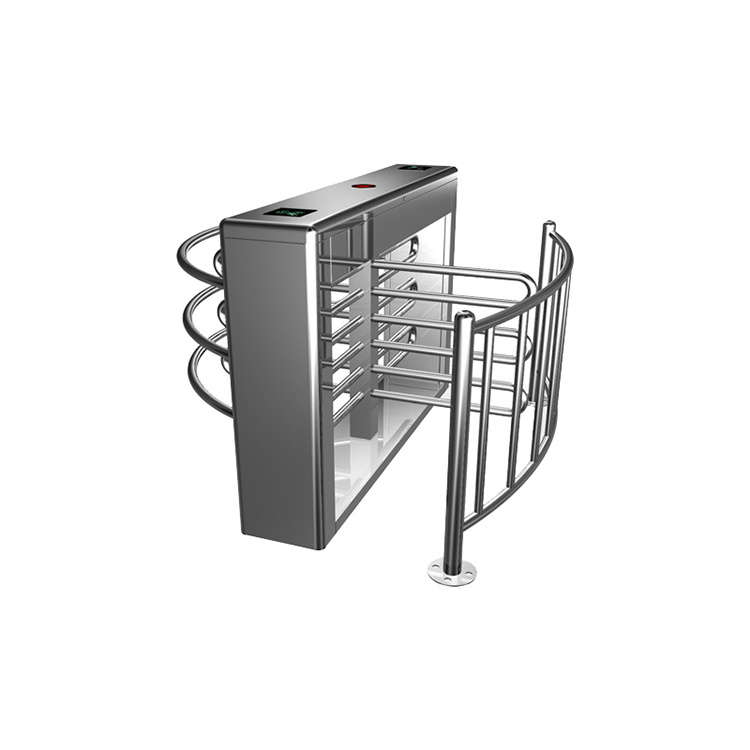

304 Stainless Steel Outdoor Half height security entrance NFC control turnstile gate for access control system

Half-height turnstile adopts a mechanical anti tailing design to effectively control only one person at a time. The advanced
mechanical structure is adopted. In standby mode, the blocking rod is locked to prevent the illegal passage of pedestrians. When a legal door opening signal is received in one direction, within the allowable passage time, pedestrians entering the passage from the opposite direction and pushing the gate rod will be regarded as reverse passage, and the blocking rod in this direction will be locked to prevent pedestrians from the reverse passage.

1.Rainproof housing, 304 or 316 stainless steel or cold rolling steel

2.Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.

3.If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.

4.Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.

5.Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.

6.Innovative and unique mounting surface ensures simple and convenient installation for system integrator.

7.Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)

8.Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

9.The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.
