Vacuum powder insulation liquid cryogenic storage tank is used for storage and supply of cryogenic liquid like liquid oxygen,
liquid nitrogen,liquid argon and liquid carbon dioxide.
It has advantages of area-saving, safe, reliable and convenient maintenance, etc, and has m been widely used in gas,
chemical,mechanical, metallurgy, electronics, medical, glass, mining, nuclear power and other industries.
The tank supplies cryogenic liquid from the bottom. It can be connected with the exterior vaporizer and cryogenic pump. It can
also be designed and manufactured according to users' requirements.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
1823*2010*3110mm
-
Weight:
-
2260
-
Product name:
-
Low temperature storage tank
-
Material:
-
Stainless Steel
-
Design standards:
-
National standard
-
Operating temperature (℃):
-
-196 - 60 ℃
-
MOQ:
-
1 Set
Quick Details
-
Capacity:
-
3000L/3(m3)
-
Max Working Pressure(MPa):
-
1.68 MPa
-
Place of Origin:
-
Hebei, China
-
Dimension(L*W*H):
-
1823*2010*3110mm
-
Weight:
-
2260
-
Product name:
-
Low temperature storage tank
-
Material:
-
Stainless Steel
-
Design standards:
-
National standard
-
Operating temperature (℃):
-
-196 - 60 ℃
-
MOQ:
-
1 Set
This series of products, featuring a compact structure, can be applied in metallurgy, chemistry, food industry. They are safe and reliable, easy to operation and maintain.
Our Certificates
Features
1. Double wall, vertical structure, adopt vacuum powder insulation.
2. Compact structure, low daily evaporation rate, small footprint, centralized control, safe, reliable, easy operation and maintenance.
We have various sizes and styles of pressure regulators. Should you have any questions, pls feel free to contact us directly at any time!

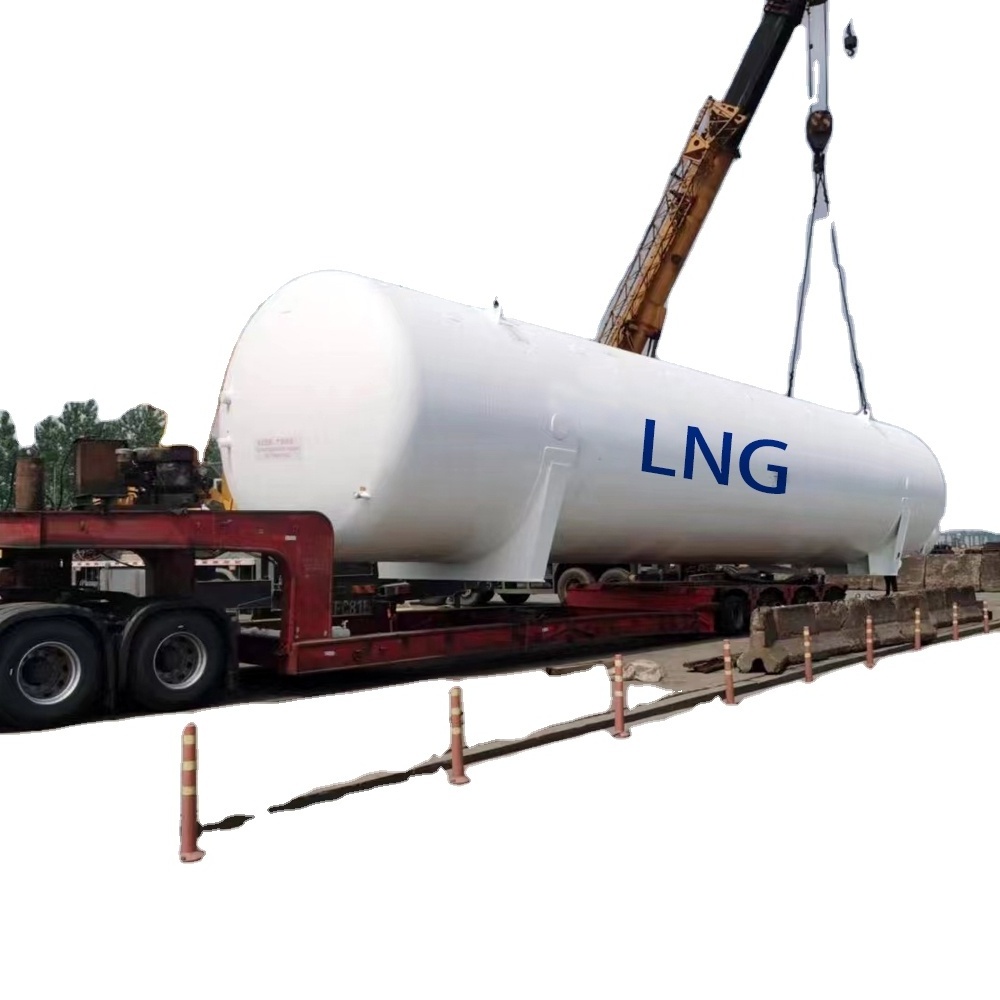

Product Display
LIQUID CRYOGENIC STORAGE TANK
|
LOX,LIN,LAr Cryogenic Liquid Tank
|
|
|
|
|
|
|
|
|||||||
|
Model
|
Water capacity
|
Working
pressure(MPA) |
Extemal
dimension(mm) |
Net
weight(kg) |
Full-load weight(kg)
|
|
|
|||||||
|
|
|
|
|
|
LOX
|
LIN
|
LAr
|
|||||||
|
CFLY05/1.0
|
5m3
|
1
|
2216*4405
|
4130
|
9830
|
8180
|
11130
|
|||||||
|
CFL-Y05/1.75
|
5m3
|
1.75
|
2216*4405
|
4400
|
10100
|
8450
|
11400
|
|||||||
|
CFL-Y10/1.0
|
10m3
|
1
|
2216*7098
|
6250
|
17920
|
14620
|
20520
|
|||||||
|
CFL-Y10/1.75
|
10m3
|
1.75
|
2216*7098
|
6861
|
18261
|
14961
|
20861
|
|||||||
|
CFL-Y15/0.8
|
15m3
|
0.8
|
2616*6520
|
7380
|
24480
|
22530
|
28380
|
|||||||
|
CFL-Y15/1.75
|
15m3
|
1.75
|
2616*6520
|
8501
|
25601
|
20651
|
29501
|
|||||||
|
CFL-Y20/0.8
|
20m3
|
0.8
|
2616*8030
|
8925
|
31725
|
25125
|
36925
|
|||||||
|
CFL-Y20/1.75
|
20m3
|
1.75
|
2616*8030
|
10378
|
33178
|
26578
|
38378
|
|||||||
|
CFL-Y30/0.8
|
30m3
|
0.8
|
2616*11070
|
12166
|
46366
|
36466
|
54166
|
|||||||
|
CFL-Y30/1.75
|
30m3
|
1.75
|
2616*11070
|
14300
|
48500
|
38600
|
56300
|
|||||||
|
CFL-Y50/0.8
|
50m3
|
0.8
|
3020*12685
|
19494
|
76494
|
59994
|
89494
|
|||||||
|
CFL-Y50/1.75
|
50m3
|
1.75
|
3020*12685
|
23050
|
80050
|
63550
|
93050
|
|||||||
|
CFL-Y100/0.8
|
100m3
|
0.8
|
3520*17585
|
33800
|
147800
|
114800
|
174800
|
|||||||
|
CFL-Y100/1.6
|
100m3
|
1.6
|
3520*17585
|
40550
|
154550
|
121550
|
181550
|
|||||||
