Quick Details
-
Torque:
-
330-355N.M
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Eternal Luck
-
Model Number:
-
6G75
-
Warranty:
-
12 Months
-
Engine Code:
-
6G75
-
Car Model:
-
for Mitsubishi
-
Material:
-
Aluminum&cast iron
-
Package:
-
Color Box+export Carton+pallet
-
Quality::
-
100% Tested
Quick Details
-
OE NO.:
-
6G75
-
Power:
-
215-265HP
-
Displacement:
-
3.8L
-
Torque:
-
330-355N.M
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Eternal Luck
-
Model Number:
-
6G75
-
Warranty:
-
12 Months
-
Engine Code:
-
6G75
-
Car Model:
-
for Mitsubishi
-
Material:
-
Aluminum&cast iron
-
Package:
-
Color Box+export Carton+pallet
-
Quality::
-
100% Tested

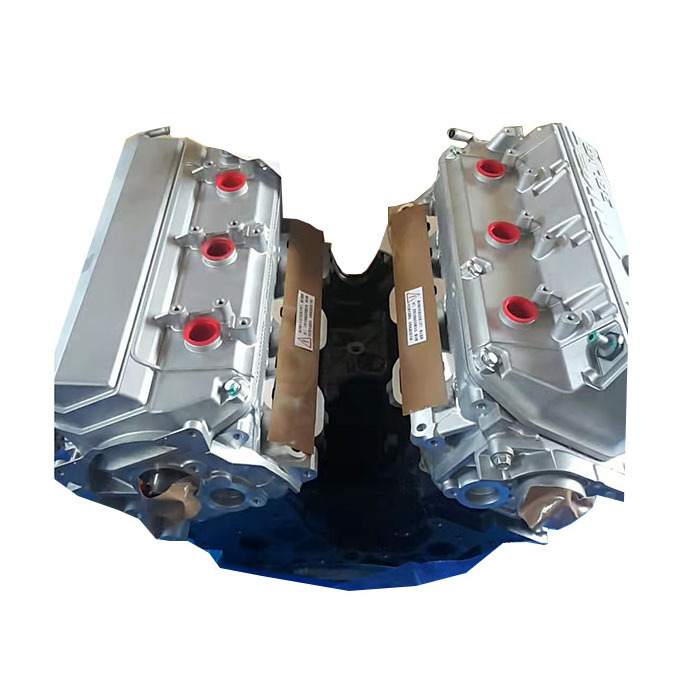

The Mitsubishi 6G75 3.8-liter V6 engine was produced at the Kyoto plant from 2002 to 2021 and was installed on such popular concern models as the Endeavor, Pajero, Galant or Eclipse.
In 2002, the most voluminous engine of the Cyclone family debuted on the restyled Pajero 3. It was a completely ordinary V-shaped engine with a cast-iron block and a 60 ° camber angle, distributed fuel injection, intake swirl flaps, timing belt drive. It is the newest in the series, therefore it is significantly improved compared to its predecessors (for example, it received forged connecting rods). All versions of the unit had aluminum SOHC heads for 24 valves with hydraulic lifters.
In 2005, a more powerful version of the engine appeared with the proprietary MIVEC phase control system, and for a long time the company sold both modifications of this power unit in parallel. In the Japanese market, they offered a rare version of this engine with GDi direct fuel injection.
The 6G7 family also includes engines: 6G71, 6G72, 6G72TT, 6G73 and 6G74.
The engine was installed on:
Mitsubishi Eclipse 4 (DK) in 2005 – 2011;
Mitsubishi Endeavor 1 (D7) in 2003 – 2011;
Mitsubishi Galant 9 (DJ) in 2003 – 2009;
Mitsubishi Pajero 3 (V70) in 2002 – 2006;
Mitsubishi Pajero 4 (V90) in 2006 – 2021.
|
Technical Specifications
|
|
|
|
Displacement, cc
|
3828
|
|
|
Fuel system
|
distributed injection (6G75 MPI)
distributed injection (6G75 MPI MIVEC) direct injection (6G75 GDI) |
|
|
Power output, hp
|
215 – 230 (6G75 MPI)
245 – 265 (6G75 MPI MIVEC) 218 (6G75 GDI) |
|
|
Torque output, Nm
|
330 – 350 (6G75 MPI)
330 – 355 (6G75 MPI MIVEC) 339 (6G75 GDI) |
|
|
Cylinder block
|
cast iron V6
|
|
|
Block head
|
aluminum 24v
|
|
|
Cylinder bore, mm
|
95
|
|
|
Piston stroke, mm
|
90
|
|
|
Compression ratio
|
9.8 (6G75 MPI)
|
|
|
|
10 – 10.5 (6G75 MPI MIVEC)
|
|
|
|
10 (6G75 GDI)
|
|
|
Hydraulic lifters
|
yes
|
|
|
Timing drive
|
belt
|
|
|
Turbocharging
|
no
|
|
|
Recommended engine oil
|
5W-30, 5W-40
|
|
|
Engine oil capacity, liter
|
5.7
|
|
|
Fuel type
|
petrol
|
|
|
Engine lifespan, km
|
~400 000
|
|
|
Weight, kg
|
205
|
|
Q1. Which package do you used ?
A: Generally we pack our goods in neutral or white boxes and brown cartons. Your own brand and and logo are welcomed after getting your authorization letter.
Q2. What‘s your payment way?
A: T/T 30% advance, and 70% after send photos of goods to you before load .
Q3. What’s the delivery way ?
A: We accept EXW, FOB, CFR, CIF, DDU, just as your wish.
Q4. How long is your delivery time?
A: Usually it will take about 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. What can I do if i received bad products ?
A: We will think highly of your feedback, Please contact our sales at once if you find any problems after you received goods, our sales will give you resonable reply and help you solve all problems.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock.
