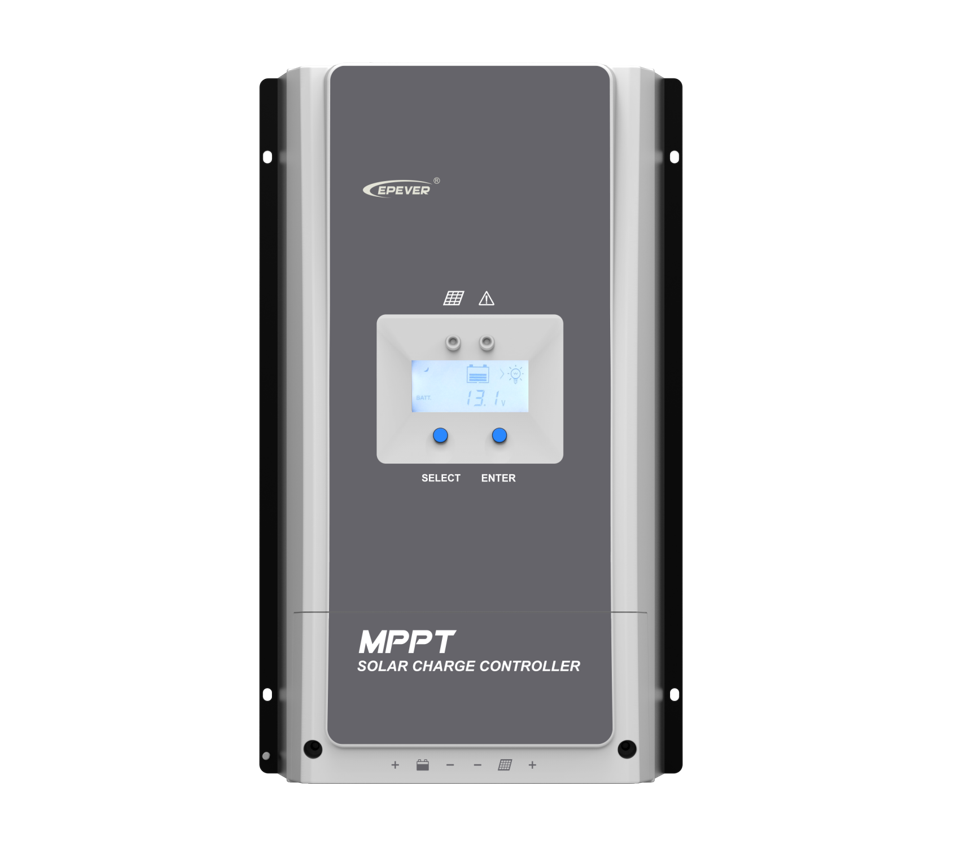

Tracer-AN (50A-100A) series
Tracer-AN (50A-100A) series is the largest charge controller series in EPEVER's product range and can take up to 5KW solar panel.For even more power, the user can use PAL-ADP-50N to connect max. 6 units of a controller in parallel for up to 30KW system. The multiple dry contact signals are designed for a diversified application.
Features
Technical Specifications
|
Model
|
Tracer
6210AN
|
Tracer 5415AN
|
Tracer 6415AN
|
Tracer 8415AN
|
Tracer 10415AN
|
|||||
|
Nominal system voltage
|
12/24VDC/Auto
|
12/24/36/48VDC/Auto
|
|
|
|
|||||
|
Battery type
|
Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User
|
|
|
|
|
|||||
|
Battery input voltage range
|
8V～32V
|
8V～68V
|
8V～68V
|
8V～68V
|
8V～68V
|
|||||
|
Rated charge current
|
60A
|
50A
|
60A
|
80A
|
100A
|
|||||
|
Rated charge power
|
750W/12V
1500W/24V
|
625W/12V 1250W/24V 1875W/36V 2500W/48V
|
750W/12V 1500W/24V 2250W/36V 3000W/48V
|
1000W/12V 2000W/24V 3000W/36V 4000W/48V
|
1250W/12V 2500W/24V 3750W/36V 5000W/48V
|
|||||
|
Max. conversion efficiency
|
98.00%
|
98.30%
|
98.60%
|
98.50%
|
98.60%
|
|||||
|
Tracking efficiency
|
≥99.5%
|
|
|
|
|
|||||
|
Max. PV open circuit voltage
|
100V（At minimum operating environment temperature） 92V（At 25℃ environment temperature ）
|
150V（At minimum operating environment temperature） 138V（At 25℃ environment temperature ）
|
|
|
|
|||||
|
MPP voltage range
|
(Battery Voltage +2V)～72V
|
(Battery Voltage +2V)～108V
|
|
|
|
|||||
|
Equalization voltage
|
Sealed:14.6V,Flooded:14.8V,User-defined:9-17V
|
|
|
|
|
|||||
|
Boost voltage
|
Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V
|
|
|
|
|
|||||
|
Float voltage
|
Gel/Sealed/Flooded:13.8V,User-defined:9-17V
|
|
|
|
|
|||||
|
Low voltage reconnect voltage
|
Gel/Sealed/Flooded:12.6V,User-defined:9-17V
|
|
|
|
|
|||||
|
Low voltage disconnect voltage
|
Gel/Sealed/Flooded:11.1V,User-defined:9-17V
|
|
|
|
|
|||||
|
Self-consumption
|
98mA/12V;60mA/24V;50mA/36V;46mA/48V
|
|
|
|
|
|||||
|
Temperature compensation ( for lead-acid battery)
|
－3mV/℃/2V(Default)
|
|
|
|
|
|||||
|
Relative humidity
|
5% to 95% (N.C.)
|
|
|
|
|
|||||
|
Enclosure
|
IP20
|
|
|
|
|
|||||
|
Communication interface
|
RS485(5VDC/200mA, Two RJ45 ports in parallel)
|
|
|
|
|
|||||
|
Grounding
|
Common negative
|
|
|
|
|
|||||
|
Operating temperature range
|
`-25℃～+60℃(derating above 45℃)
|
|
|
|
|
|||||
|
Dimensions(LxWxH)(mm)
|
340×232×105.2
|
261×216×119
|
340×236×119
|
394×240×134
|
394×242×143
|
|||||
|
Net weight
|
3.5kg
|
3.5kg
|
4.5kg
|
6.1kg
|
7.4kg
|
|||||
|
1. The controlller can't automatically identify system voltage if lithium batteries were connected.
|
|
|
|
|
|
|||||
|
2. The voltage point is for 12V system, please *2 in 24V system, *3 in 36V system, *4 in 48V system.
|
|
|
|
|
|
|||||
|
Model
|
Tracer 5420AN
|
Tracer 6420AN
|
Tracer 8420AN
|
Tracer 10420AN
|
||||
|
Nominal system voltage
|
12/24/36/48VDC/Auto
|
|
|
|
||||
|
Battery type
|
Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User
|
|
|
|
||||
|
Battery input voltage range
|
8V～68V
|
8V～68V
|
8V～68V
|
8V～68V
|
||||
|
Rated charge current
|
50A
|
60A
|
80A
|
100A
|
||||
|
Rated charge power
|
625W/12V 1250W/24V 1875W/36V 2500W/48V
|
750W/12V 1500W/24V 2250W/36V 3000W/48V
|
1000W/12V 2000W/24V 3000W/36V 4000W/48V
|
1250W/12V 2500W/24V 3750W/36V 5000W/48V
|
||||
|
Max. conversion efficiency
|
98.30%
|
98.10%
|
98.50%
|
98.50%
|
||||
|
Tracking efficiency
|
≥99.5%
|
|
|
|
||||
|
Max. PV open circuit voltage
|
200V（At minimum operating environment temperature） 180V（At 25℃ environment temperature ）
|
|
|
|
||||
|
MPP voltage range
|
(Battery Voltage+2V)～144V
|
|
|
|
||||
|
Equalization voltage
|
Sealed:14.6V,Flooded:14.8V,User-defined:9-17V
|
|
|
|
||||
|
Boost voltage
|
Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V
|
|
|
|
||||
|
Float voltage
|
Gel/Sealed/Flooded:13.8V,User-defined:9-17V
|
|
|
|
||||
|
Low voltage reconnect voltage
|
Gel/Sealed/Flooded:12.6V,User-defined:9-17V
|
|
|
|
||||
|
Low voltage disconnect voltage
|
Gel/Sealed/Flooded:11.1V,User-defined:9-17V
|
|
|
|
||||
|
Self-consumption
|
98mA/12V;60mA/24V;50mA/36V;46mA/48V
|
|
|
|
||||
|
Temperature compensation ( for lead-acid battery)
|
－3mV/℃/2V(Default)
|
|
|
|
||||
|
Relative humidity
|
5% to 95% (N.C.)
|
|
|
|
||||
|
Enclosure
|
IP20
|
|
|
|
||||
|
Communication interface
|
RS485(5VDC/200mA, Two RJ45 ports in parallel)
|
|
|
|
||||
|
Grounding
|
Common negative
|
|
|
|
||||
|
Operating temperature range
|
`-25℃～+60℃(derating above 45℃)
|
|
|
|
||||
|
Dimensions(LxWxH)(mm)
|
261×216×119
|
340×236×119
|
394×240×134
|
394×242×143
|
||||
|
Net weight
|
3.5kg
|
4.5kg
|
6.1kg
|
7.4kg
|
||||
|
1. The controlller can't automatically identify system voltage if lithium batteries were connected.
|
|
|
|
|
||||
|
2. The voltage point is for 12V system, please *2 in 24V system, *3 in 36V system, *4 in 48V system.
|
|
|
|
|
||||
Details Images
characteristics
Installation
Step 1: Determine the installation location and heat-dissipation space
Step2: Remove the terminal protective cover.
Step 3: Connect the battery① (Left) and PV② (Right)
* Single controller
* Connection in parallel
Step 4: Grounding
Step 5: Connect accessories
Step 6: Power on the controller
Remote set the battery parameters
* Setting the battery parameters by PC software
* Setting the battery parameters by APP
Product packaging
