Quick Details
-
Brand Name:
-
FCTEL
-
Model Number:
-
FCM-G16Q8
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
Gigabit SFP Network Switch
-
Weight:
-
1.7Kg/piece
-
Power supply:
-
AC and DC
-
Size:
-
133mm (L) x 120mm (W) x 50.0mm (H)
-
Working temperature:
-
-40°C ~ 85°C
-
Connector Type:
-
16* 10/100/1000M RJ45 port,8*100M/1000M SFP port,1 Console port
-
Management:
-
CLI, web and SNMP management
-
MOQ:
-
1 PCS
-
OEM:
-
Yes
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
56Gbit
-
Brand Name:
-
FCTEL
-
Model Number:
-
FCM-G16Q8
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
Gigabit SFP Network Switch
-
Weight:
-
1.7Kg/piece
-
Power supply:
-
AC and DC
-
Size:
-
133mm (L) x 120mm (W) x 50.0mm (H)
-
Working temperature:
-
-40°C ~ 85°C
-
Connector Type:
-
16* 10/100/1000M RJ45 port,8*100M/1000M SFP port,1 Console port
-
Management:
-
CLI, web and SNMP management
-
MOQ:
-
1 PCS
-
OEM:
-
Yes
Product Description

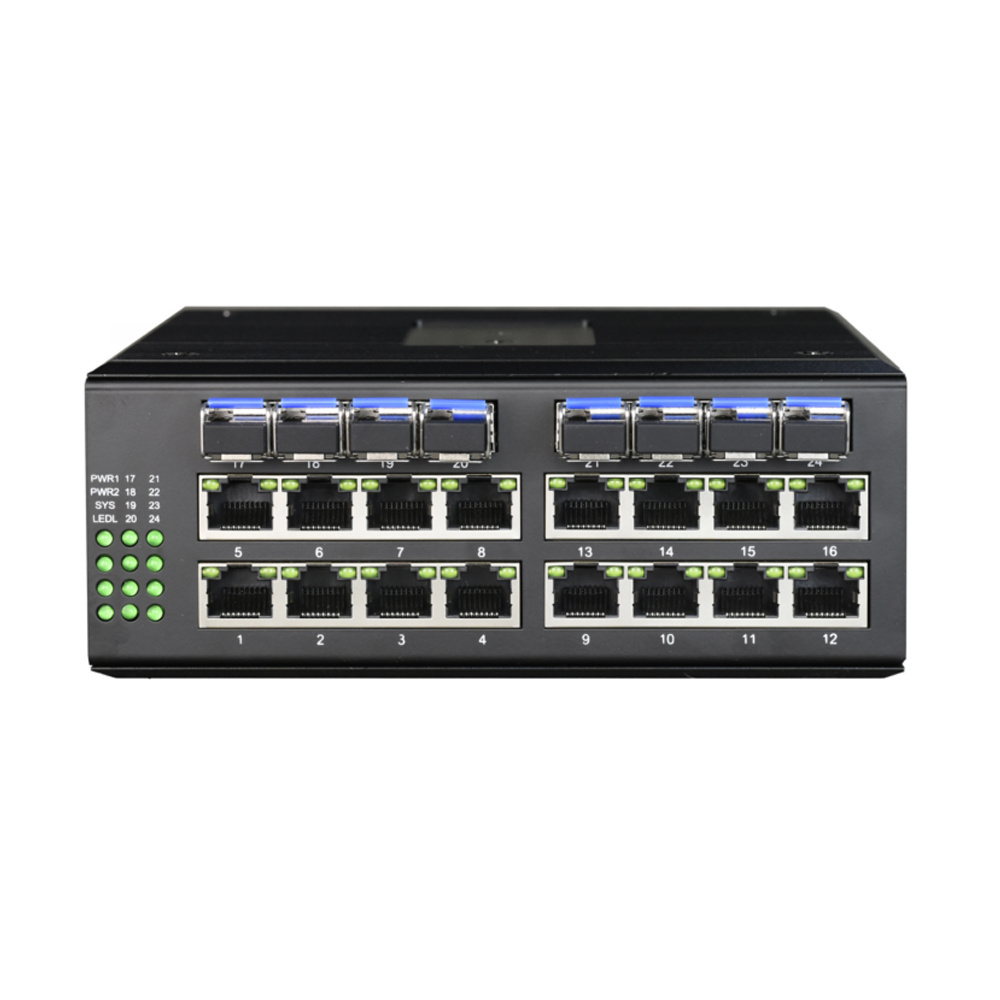

16GE + 8SFP
16GE + 4Optic
This series of products adopts industrial rail design, 16 GE + 8SFP network switch is a new generation of multi-service access network management Gigabit redundant Ethernet switch, with high integration, rich functions, simple and convenient, etc., representing the industry The highest level. It contains 16 Gigabit electrical ports and 8 Gigabit optical ports, which is especially suitable for occasions with large data streams such as video transmission. Support the two-layer management protocol required by the rich industrial switch applications, support the ITU G.8032 redundant ring network protocol, form a cascaded network, a single ring, a tangent ring network and other topological structures, and the self-healing time is less than 20ms, which guarantees The real-time and stability of the network. The switch adopts mature technology and open network standards, adapts to low temperature and high temperature, has strong anti-electromagnetic interference, anti-salt spray, anti-vibration and anti-shake, meets the harsh working environment requirements of industrial sites, and provides efficient, reliable and fast for the industrial Internet of Things solution.
Specification
|
module
|
FCM-G16Q8
|
|
Supported protocols
|
IEEE802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE802.1q、IEEE802.1p、IEEE802.1z、IEEE802.1d、IEEE802.1s、IEEE802.1w、IEEE802.1ax、
IEEE802.1ak |
|
Max frame length
|
10K
|
|
ports
|
16* 10/100/1000M RJ45 port、8*100M/1000M SFP port，1 Console port
|
|
Network media
|
1000base LX: a long wavelength laser (1310nm) is used to cross multimode and single-mode fiber. The maximum distance of multimode
fiber is 550m and that of single-mode fiber is 20-120km. |
|
|
1000base SX: the maximum transmission distance of 62.5 μ m multimode fiber is 275m, and the maximum transmission distance of using
50 μ m multimode fiber is 550m. |
|
|
10Base-T: UTP of Category 3 or above; (support the maximum transmission distance of 200m)
|
|
|
100base TX: type 5 UTP; (supporting maximum transmission distance of 100m)
|
|
|
1000BASE-T: Cat-5e UTP or category 6 UTP (supporting maximum transmission distance of 100m)
|
|
VLAN address table
|
4K
|
|
MACaddress
|
8K
|
|
cache
|
4Mbits
|
|
backplane bandwidth
|
56Gbit
|
|
Filtering and forwarding rate
|
10Mbps：14880pps
|
|
|
100Mbps：148800pps
|
|
|
1000Mbps：1488000pps
|
|
Usage environment
|
Storage temperature: - 40 ℃ - 85 ℃; storage humidity 0% ～ 90%, no condensation
|
|
|
Working temperature: - 40 ℃～ 85 ℃; working humidity 0% ～ 90%
|
|
MTBF
|
＞100,000 hours
|
|
power
|
Redundant dual power input dc9-48v / ac9-48v
Overload protection: support; reverse protection: support; redundancy protection: support Access terminal: 4-core 5.08mm spacing plug-in terminal |
|
power waste
|
Power consumption: maximum 17w
|
|
Electrical and mechanical characteristics
|
Appearance structure: 133mm (L) x 120mm (W) x 50.0mm (H)
|
|
weight
|
1.7Kg/piece
|
Application
The product integrates 16 Gigabit electrical ports and 8 gigabit optical ports, which can form a network topology such as redundancy, when there is a fiber failure, the system will rebuild the network link within 20ms to ensure the normal communication of the system and realize the self-healing protection function of the bus signal transmission. After the network fault is eliminated, the system will recover automatically;
Features
1.
All aluminum alloy shell, good heat dissipation characteristics, metal oxide oxidation process, IP40 protection level;
2.
Aluminum alloy industrial rail design, specially designed for harsh industrial environment;
3.
Support 16 Gigabit electrical ports and 8SFP optical ports;
4.
Each electrical port or optical port supports the standard ERPS ring network protocol, and the self-healing time is less than 20ms；
5.
Support port bandwidth limitation, port flow control, broadcast storm suppression；
6.
Support Web, CLI, Telnet management functions；
7.
Power failure alarm, loop alarm；
8.
Provide Console debugging；
9.
Can support POE (POE+) Optional；
10
Management functions:
①Support CLI, WEB, SNMP management methods
②Support port speed limit based on ingress/egress, support half-duplex back pressure flow control and 802.3X full-duplex flow control
③Support storm suppression function based on broadcast, multicast and unknown unicast
④Support IEEE 802.1Q 4K VLAN, support QINQ
⑤Support port mirroring, Syslog, Ping command, etc.
⑥Support COS, DSCP, 8 queues, support WRR, SP, WFQ scheduling mode, strategy QOS
⑦Support port traffic statistics and online upgrade
⑧Support STP/RSTP, MSTP, support EAPS, ERPS
⑨Support IGMP Snooping V1/V2/V3, support GMRP
⑩Support manual aggregation, support static/dynamic LACP protocol
⑪
Support one relay alarm, support RMON management, TRAP alarm
⑫
Support DHCP Snooping, Option 82, support 802.1X
⑬
Support user hierarchical management, support ACL access control list
11.
Support DDOS, support port-based MAC filtering/binding
12.
Ethernet interface with lightning protection, anti-radar to GB/T17626.5 (IEC61000-4-5) short-circuit current wave 10/700μs, open-circuit peak output voltage 6KV standard
13.
Support wide range AC and DC input (9V-48V), support internal isolation, redundant dual power input, power supply support overload protection, anti-reverse protection;
14.
Meet the requirements of industrial level 4 electromagnetic compatibility;
15.
Super lightning protection function: lightning protection, anti-inductive high voltage, anti-surge, etc., no fan and efficient heat dissipation, reducing repair time;
16.
IP40 enclosure protection level, able to withstand the test of harsh environments, rail or wall-mounted installation;
17.
Wide temperature type: working temperature -40℃~ +85℃;
