Quick Details
-
Dimension(L*W*H):
-
3950*1630*2250mm
-
Weight:
-
4500 KG
-
Marketing Type:
-
Hot Product 2020
-
Drilling Diameter:
-
140-254mm
-
Mobility:
-
yes
-
Color:
-
Customer Required
-
Engine Power:
-
60kw
-
Name:
-
FYX180
-
Max Drilling Depth:
-
200M
-
Mud pump:
-
BW200/BW250
-
One-time advance length:
-
3.3m
-
Rig lifting force:
-
12T
-
Fast feeding speed:
-
40m/min
-
Air consumption:
-
17-31m3/min
-
Swing speed:
-
45-70rpm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Feida Machinery
-
Voltage:
-
//
-
Dimension(L*W*H):
-
3950*1630*2250mm
-
Weight:
-
4500 KG
-
Marketing Type:
-
Hot Product 2020
-
Drilling Diameter:
-
140-254mm
-
Mobility:
-
yes
-
Color:
-
Customer Required
-
Engine Power:
-
60kw
-
Name:
-
FYX180
-
Max Drilling Depth:
-
200M
-
Mud pump:
-
BW200/BW250
-
One-time advance length:
-
3.3m
-
Rig lifting force:
-
12T
-
Fast feeding speed:
-
40m/min
-
Air consumption:
-
17-31m3/min
-
Swing speed:
-
45-70rpm
The listed price is only the factory deposit price. If you want to know the specific price, please contact me to provide you with perfect machine matching and price.
Products Show
Products Description

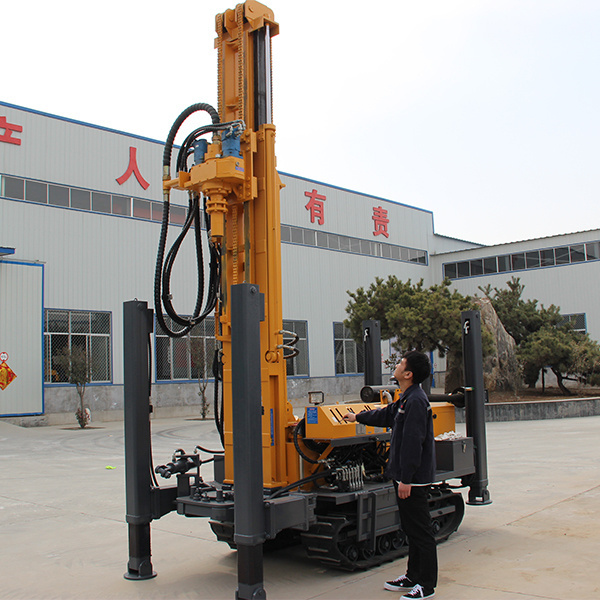

FYX180 rubber crawler water well drilling rig parameters
|
Model
|
FY180
|
|
Operating weight (T)
|
4.5
|
|
The hole diameter (mm)
|
140-254
|
|
Drilling depth (m)
|
180
|
|
One time advance length (m)
|
3.3
|
|
Walking speed (km/h)
|
2.5
|
|
Climbing angels (Max.)
|
30
|
|
Rated power (kw)
|
Cummins 60kw
|
|
Working pressure (mpa)
|
1.7-2.5
|
|
Air consumption (m3/min)
|
17-31
|
|
Drill pipe diameter (mm)
|
76/89
|
|
Drilling pipe length (m)
|
1.5/2.0/3.0
|
|
Rig lifting force (t)
|
12
|
|
Swing speed (rpm)
|
45-70
|
|
Swing torque (N.m)
|
3200-4600
|
|
Dimensions (mm)
|
3950*1630*2250
|
Specification
