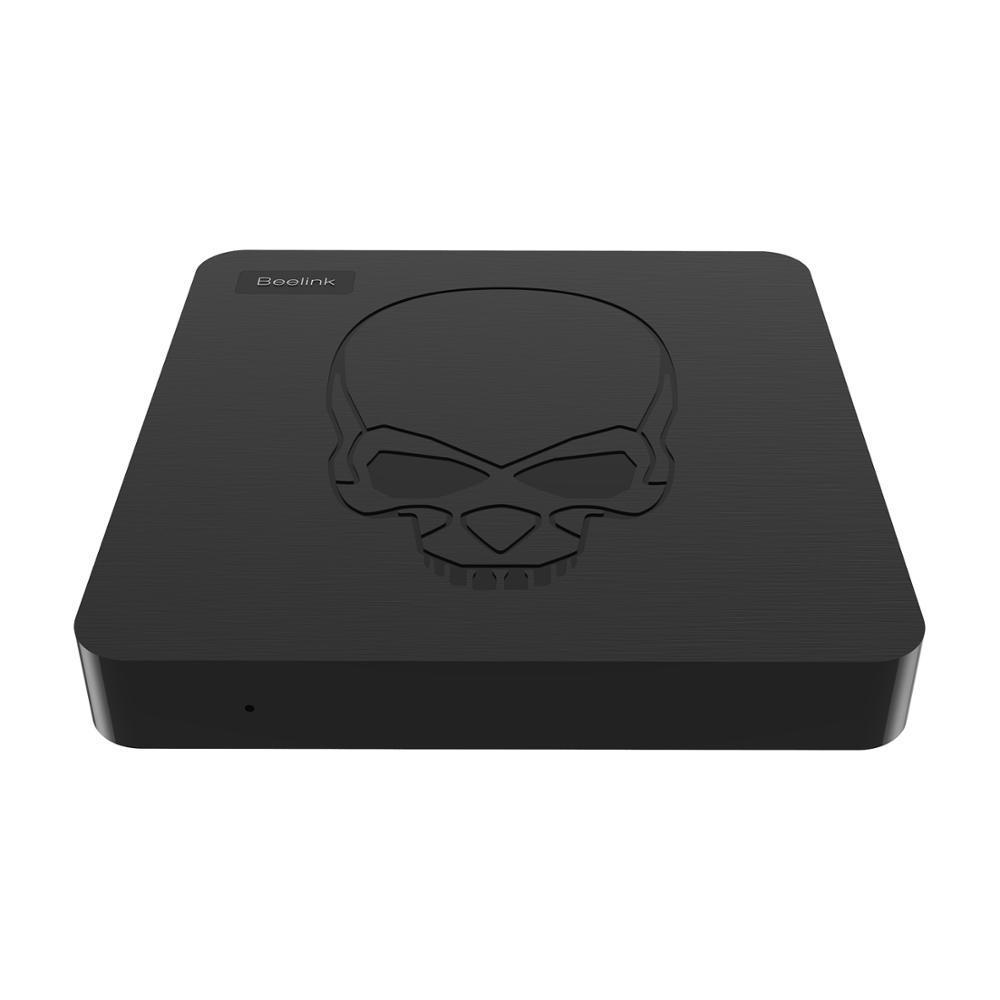

Beelink GT King S922X Quad-core RAM 4GB ROM 64GB Hexa-core ARM G52 MP6 Graphics Android 9.0 TV BOX

Item

Description

Dimension

108 mm* 108 mm* 16 mm

Weight

Only Device 0.19 kg

CPU

S922X Q uad-core ARM Cortex-A 73 and dual-core ARM Cortex-A 53 processor

Graphics

Hexa - core ARM G52 MP 6 Graphics

Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders

Support multi-video decoder up to 4Kx2K60fps+1x1080P@60fps

Supports multiple “ secured ” video decoding sessions and simultaneous decoding and encoding

H.265/HEVC Main/Main10 profile  level 5.1 High-tier; up to 4Kx2K  60fps

VP9 Profile-2 up to 4Kx2K60fps

H.265 HEVC MP-10L5.1 up to 4Kx2K@60f

AVS2-P2 Profile up to 4Kx2K@60fps

H.264 AVC HPL5.1 up to 4Kx2K@30fps

H.264 MVC up to 1080P60fps

MPEG-4 ASPL5 up to 1080P@60fps (ISO-14496)

WMV/VC-1 SP/MP/AP up to 1080P@60fps

AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps

MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)

MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)

RealVideo 8/9/10 up to 1080P@60fps

Disp l ay

HDMI 2. 1 output up to 4K@ 75 Hz

HDMI 3D video formats

HDMI HDCP 2.2

AV(CVBS) 480i/576i

Memory

4GB ( DDR4 )

Storage

64GB( eMMC )

Extended USB Mechanical Hard Disk 2.5/3.5inch 4TB Storage

Extended Storage TF card

Network

2T2R WIFI IEEE 802.11 a/b/g/n /ac 2.4G 5.8G

L AN 1000M

BT4. 1

Interface

USB3.0

2 * USB Port

USB2.0

1* USB Port

HDMI

1*HD MI A Type Port

RJ45

1*RJ45 (1000Mbps)

AV(CVBS)

1*Headphone microphone jack

TF Card

1* Micro SD card Port

DC-in

1*DC in Port

Remote control

Standard Infrared Remote ( IR )

Extended 2.4G Remote

LED display

Green LED display

Upgrade OS

1* Upgrade button

Software OS

Android 9.0

Adapter

12 V- 1.5~2 A 1 8 W Certification

Input: 100-240V~50/60Hz , Output: 12 V 1.5~2 A

Work Environment

-10°C--45°C , 30%--90% Humidity

Storage Environment

-20°C--60°C , 10%--90% Humidity

Accessories

1*Adapter 12V 1.5 A

1*HDMI Cable 80CM

1*Manual
