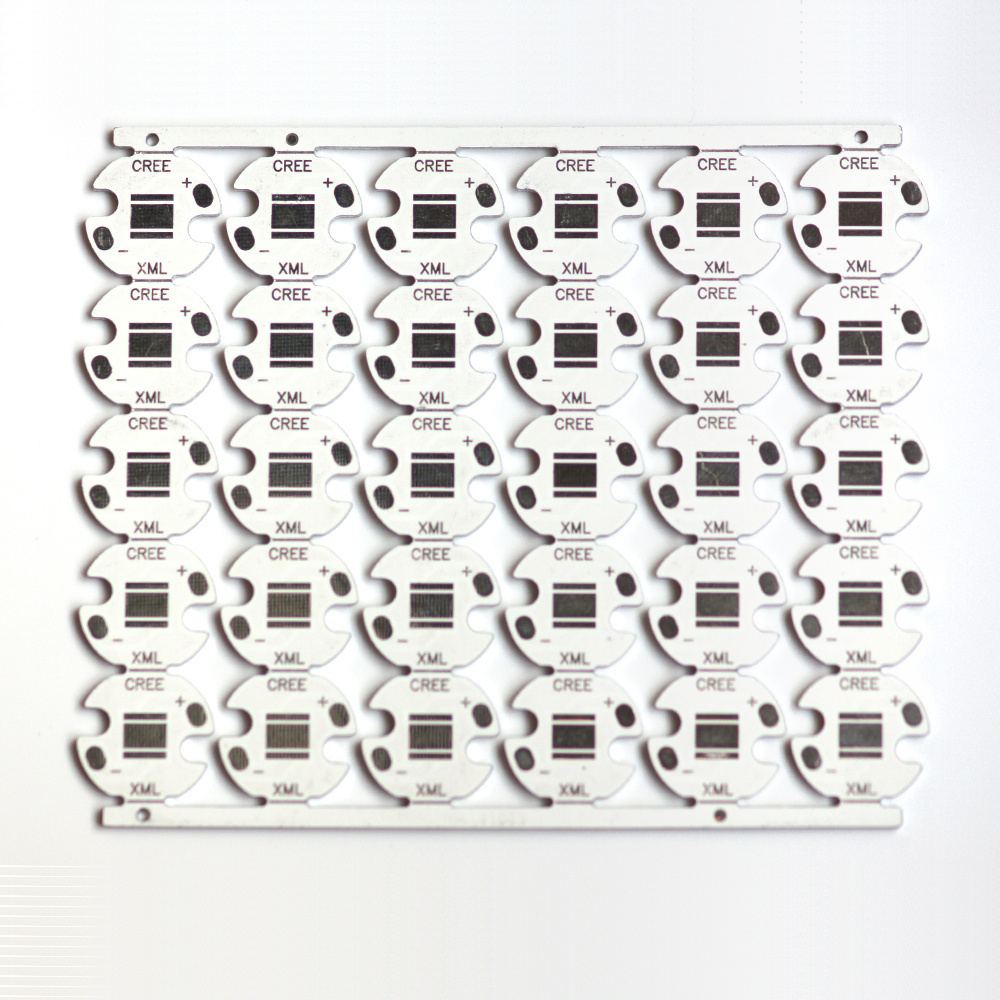

LED star printed circuit boards aluminum based plate high power PCB for tube light
We can do for you:
a) 1-16 layer FR-4 PCB board, 1-2 layer Aluminum PCB.
b) 1-6 oz copper thickness.
c) 0.2 mm hole size.
d) 0.1 mm line width/space.
e) PCB design and layout.
f) Assembly,component purchase.
g) Payment-TT30% deposite,70% before shipping.
Our PCBs are used for wide range of electronic products
Like Medical devices, CCTV, Power supply, GPS, UPS, Set-top Box,
T elecomunication ,LED, etc.
The information about our company's process capacity for your reference:
|
Item |
Manufacture Capability |
|
|
Material |
FR-4 / Hi Tg FR-4 / Lead free Materials (RoHS Compliant) /CEM-3, Aluminium, Metal based |
|
|
Layer No. |
1-16 |
|
|
Finished Board thickness |
0.2 mm-3.8mm’(8 mil-150 mil) |
|
|
Board Thickness Tolerance |
±10% |
|
|
Cooper thickness |
0.5 OZ-11OZ (18 um-385 um) |
|
|
Copper Plating Hole |
18-40 um |
|
|
Impedance Control |
±10% |
|
|
Warp&Twist |
0.70% |
|
|
Peelable |
0.012"(0.3mm)-0.02’(0.5mm) |
|
|
Images |
||
|
Min Trace Width (a) |
0.1mm (4 mil) |
|
|
Min Space Width (b) |
0.1mm (4 mil) |
|
|
Min Annular Ring |
0.1mm (4 mil) |
|
|
SMD Pitch (a) |
0.2 mm(8 mil) |
|
|
BGA Pitch (b) |
0.2 mm (8 mil) |
|
|
Solder Mask |
||
|
Min Solder Mask Dam (a) |
0.0635 mm (2.5mil) |
|
|
Soldermask Clearance (b) |
0.1mm (4 mil) |
|
|
Min SMT Pad spacing (c) |
0.1mm (4 mil) |
|
|
Solder Mask Thickness |
0.0007"(0.018mm) |
|
|
Holes |
||
|
Min Hole size (CNC) |
0.2 mm (8 mil) |
|
|
Min Punch Hole Size |
0.9 mm (35 mil) |
|
|
Hole Size Tol (+/-) |
PTH:±0.075mm;NPTH: ±0.05mm |
|
|
Hole Position Tol |
±0.075mm |
|
|
Plating |
||
|
HASL |
2.5um |
|
|
Lead free HASL |
2.5um |
|
|
Immersion Gold |
Nickel 3-7um Au:1-5u'' |
|
|
OSP |
0.2-0.5um |
|
|
Outline |
||
|
Panel Outline Tol (+/-) |
CNC: ±0.125mm, Punching: ±0.15mm |
|
|
Beveling |
30°45° |
|
|
Gold Finger angle |
15° 30° 45° 60° |
|
|
Certificate |
ROHS, ISO9001:2008, SGS, CE certificate |
|
1:Q:Is the price including led chips and soldering cost?
A:No,the price is only for blank pcb board,Becasue the price of led chip according to led brand and your order qty.
2: Q:Can you design pcb and make files for us?
A:yes,We have a professional drawing engineers' team than you can trust.
3: Q:how about our after-sales service?
A:After you get our goods,if have any quality problems,pls directly contact with sales who are in charge of. we will replace defective ones for you at once.
4:Q:how long is our guarantee ?
A: Gernerally ,our pcb boards have 2 years' guarantee.
5:Q:If we only have pcb sample in hand ,can you copy the board and make layout for us?
A:Yes ,we can copy pcb sample you.
6:Q: Can we have special package and shipment labels for our goods?
A;Yes ,we have realible supplier who can make special rigid carton and labels for us .
