Quick Details
-
Screen Size:
-
15.6 inch
-
CPU:
-
Intel Celeron J4125 2.0GHz
-
Resolution:
-
1366*768 (1920*1080 Optional)
-
SSD:
-
4GB DDR4
-
Operation System:
-
Windows 10 Pro
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
POS System
-
Color:
-
Black
-
Material:
-
Aluminum POS
-
Display:
-
15.6-inch LCD
-
Storage:
-
SSD 128GB
-
MSR optional:
-
USB Track 1&2&3
-
Customer display optional:
-
2*20 VFD / 11.6" LED second display
-
Power Supply:
-
12V/5A
-
Certification:
-
CE, FCC, RoHS
-
Warranty:
-
3 years
Quick Details
-
Model Number:
-
S20
-
Country of Origin:
-
China
-
Brand Name:
-
OEM / SysePOS
-
Screen Size:
-
15.6 inch
-
CPU:
-
Intel Celeron J4125 2.0GHz
-
Resolution:
-
1366*768 (1920*1080 Optional)
-
SSD:
-
4GB DDR4
-
Operation System:
-
Windows 10 Pro
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
POS System
-
Color:
-
Black
-
Material:
-
Aluminum POS
-
Display:
-
15.6-inch LCD
-
Storage:
-
SSD 128GB
-
MSR optional:
-
USB Track 1&2&3
-
Customer display optional:
-
2*20 VFD / 11.6" LED second display
-
Power Supply:
-
12V/5A
-
Certification:
-
CE, FCC, RoHS
-
Warranty:
-
3 years

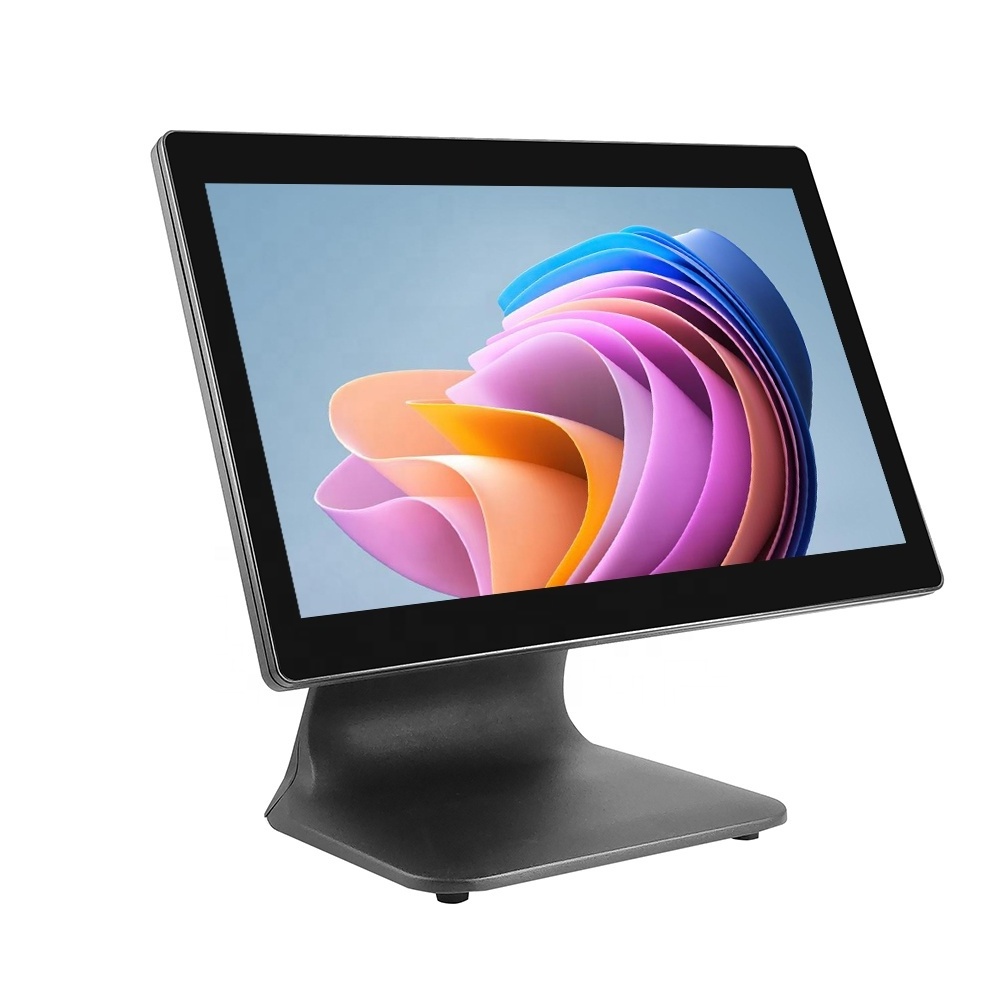

Product Features
1. Smart unique slim design
2. Full aluminum case material better for heat dissipation
3. 15.6-inch LCD display with 1366*768 resolution or 1920*1080 option
4. Easy to install MSR and 11.6" LCD customer display
5. LAN port cables can easily remove by hand
Product Specification :
|
Model
|
|
S20
|
|
||
|
Material
|
|
Aluminum case
|
|
||
|
Solutions
|
|
A
|
B
|
||
|
System Configurations
|
CPU processor
|
Intel® Celeron™ J6412 2.0GHz Fanless
Intel® Celeron™ J4125 2.0GHz
|
Intel® Core™ i3, i5, i7
|
||
|
|
Storage device
|
Mini SATA SSD 128GB / 256GB
|
|
||
|
|
Memory
|
DDR4 4GB up to 8GB
|
DDR3 4GB up to 8GB
|
||
|
|
OS support
|
Windows 10 Pro / Windows 10 IoT
Windows 11 (J6412 support )
|
Windows 10 Pro / Windows 10 IoT
|
||
|
Display
|
Main display
|
15.6-inch LCD display with 1366*768 resolution (1920*1080 option)
|
|
||
|
|
|
300:1 Contrast, 350cd/㎡ Brightness
|
|
||
|
Touch panel
|
|
Capacitive touch screen
|
|
||
|
I/O Interface
|
Serial
|
1
|
1
|
||
|
|
USB
|
1*USB type 2.0, 4*USB type 3.0
|
3*USB type 2.0, 2*USB type 3.0
|
||
|
|
LPT
|
Not Supported
|
Not supported
|
||
|
|
HDMI
|
Not Supported
|
1
|
||
|
|
VGA
|
1
|
|
||
|
|
DC
|
1
|
|
||
|
|
LAN
|
1*10/100/1000Mbps Ethernet
|
|
||
|
|
Audio
|
1*Mic-in, 1*Audio-out
|
|
||
|
Options
|
Customer display
|
VFD type (2*20), Alphabet & Numeric
|
|
||
|
|
Second display
|
11.6" LED display 1366*768
|
|
||
|
|
MSR
|
Track 1&2&3
|
|
||
|
|
Fingerprint
|
Fingerprint reader
|
|
||
|
|
Ibutton
|
Information button
|
|
||
|
|
Wi-Fi
|
External USB WiFi
|
|
||
|
|
Speaker
|
Internal mini speakers
|
|
||
|
Physical Dimension
|
Dimension
|
430*420*280mm
|
|
||
|
|
Weight
|
6.35kg
|
|
||
|
|
Color
|
Black
|
|
||
|
Environment
|
Power supply
|
DC 12V, 5A Adaptor
|
|
||
|
|
Temperature
|
Operating:-10℃ to 40℃, Storage:-20℃ to 60℃
|
|
||
|
|
Humidity
|
Operating:20%-80%, Storage:20%-90%
|
|
||
|
|
Certifications
|
CE, FCC, RoHS
|
|
||
