Quick Details
-
Weight (KG):
-
10 KG
Quick Details
-
Place of Origin:
-
Shandong, China
-
Spare Parts Type:
-
fiber laser marking machine
-
Marketing Type:
-
New Product 2024
-
Weight (KG):
-
10 KG

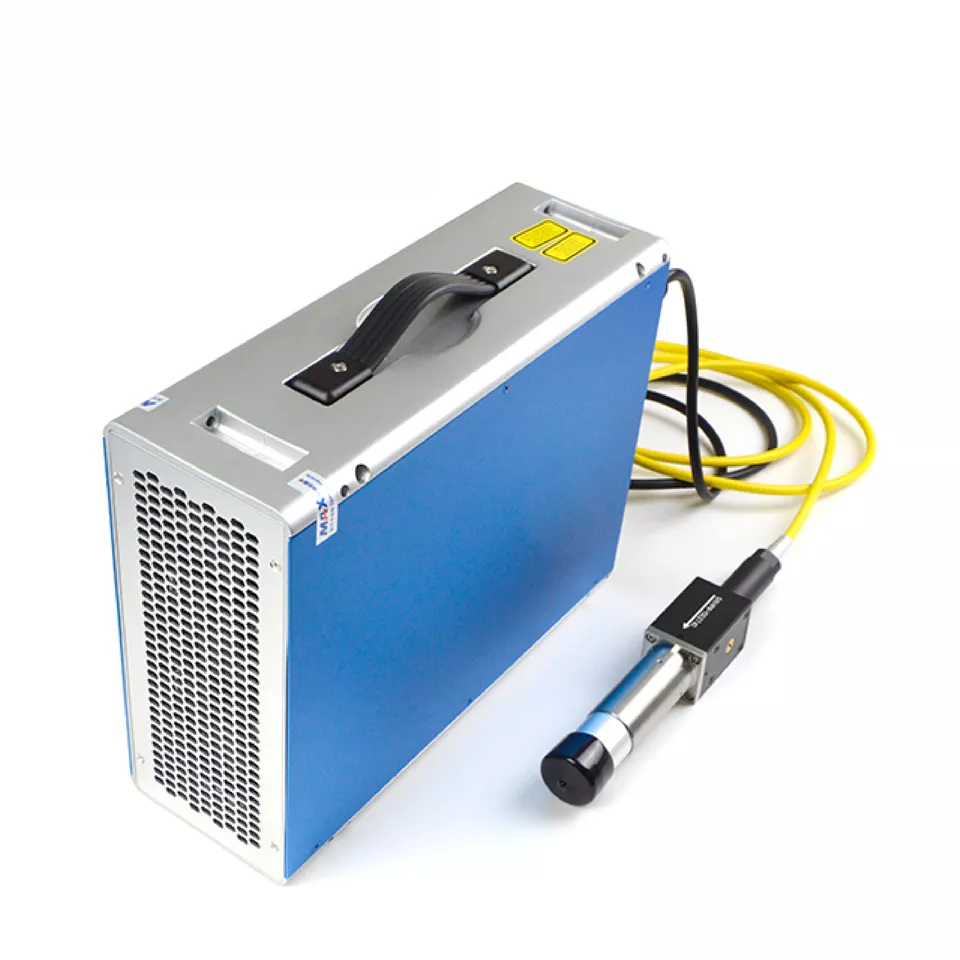

Max MFPT-20W-70W Fiber Laser Source
MFPT Pulse Width Tunable Fiber Laser is one of the cutting-edge products of Chuangxin Laser, which is constructed with Master Oscillator, High Power Fiber Amplifier (MOPA). Multi-power selectable and compact structure. It is easy to operate, maintenance-free, and can be directly integrated into the user's equipment. The laser emits a periodic pulse train at a wavelength of around 1060nm and a peak power of 10KW or more. The laser's operating parameters are set via a 25Pin control interface, which can be used for hand-held lasers in conjunction with customer-specific controllers. Laser outputs without optical isolators are mainly used for marking of low reflective materials (e.g. plastics, wood, paper, etc.), as well as for marking of some metals with low reflectivity.
| model number | MFPT-20M/S | MFPT-30M/S | MFPT-50M/S | MFPT-70M |
| Average optical power Pnom(W) | ≥20 | ≥30 | ≥50 | ≥70 |
| Maximum single pulse energy(mJ) | 0.7 | 1 | 1 | 1 |
| Pulse adjustable range(ns) | 2-350 | 2-500 | ||
| Adjustable range of repetition frequency(KHz) | 1-4000 | |||
| spot diameter(mm) | 5-7 | |||
| Beam quality M² | ≤1.3 | ≤1.3 | ≤1.4 | ≤1.5 |
| Output power instability(%) | ≤5 | |||
| Supply Voltage(V) | 24 | |||
| Rated power consumption(W) | 120 | 150 | 220 | 300 |
| center wavelength(nm) | 1066±3 | |||
| Spectral bandwidth 3dB(nm) | 10-15 | |||
| polarization (of waves) | randomization | |||
| Power Adjustment Range(%) | 10-100 | |||
| Operating Temperature Range(℃) | 0-40 | |||
| Storage temperature range(℃) | -10~60 | |||
|
Laser on time
Pout=Pnom 10% ~ 90%(μs) |
300 | |||
|
Laser off time
Pout=Pnom 10% ~ 90%(μs) |
200 | |||
| Structural dimensions(mm) | 287×219×95 | 355×266×120 | ||
| weights(kg) | 6 | 8 |
11 |
|
Stainless steel coloring Inductor Coil Stripping Carbon Steel Deep Carving
deep carving Jewelry Fine Marking Fighting black and white in plastics
|
1.We Afford the video show you how to use this machine step by step.
2.24 Hours on-line technical support by email or calling User friendly English manual and Video CD for machine operation and maintain 3.One year guarantee for the whole machine directly from factory( Spare Laser Tube, Focal lens and Reflection lens will be provided at its EX-factory price for customers who purchased our machine ) 4.We will send out the item within 3-5 business days |
1.Are you a factory or trading company?
We are the manufacturer and we have 13 years factory experience .As the machine made by
ourselves ,the quality can be trusted, and most important thing is we can do better after-sale
services . we know how to fix the problem in each part easier. so welcome to visit our factory.
2. How long is the delivery time?
For standard machines, it would be 7-10 working days; For non-standard machines and
customized machines according to clients specific requirements, it will be 15 to 30 working days.
3. How should I pay for my order ? what is the procession of this purchase ?
You can do 30% prepayment at first, then we will start to make production.
when the machines are ready , we will take pictures for you ,then you can finish the balance
after we get 100% payment. We will deliver the machines to you.
4. How about the after-sale service? Can the engineer speak fluent english ?
We offer the service from you get the machine, including how to install the machine, how to use
machine. how to let machine work. and so on. usually we will teach you how to do by email or by
phone .our engineers have many years experience of laser machines service . They can speak
very good English ,so they can solve the problem easily.
5. How about the documents after shipment?
After shipment, we’ll send all original documents to you by DHL, including Packaging List,
Commercial Invoice, B/L,and other certificates as required by clients.
6.How does your factory control quality?
"Quality is priority” Shuangjing technology always attach great importance to quality controlling
from the very beginning to the end.
1)All raw material we used are environmental-friendly;
2)Skillful workers care every details in handling the producing and packing processes;
3)Quality Control Department specially responsible for quality checking in each process.
7.If i want to return the goods, who cover the shipping cost?
Dear friend, we will obey the International practice and accept return, but buyer will be
responsible for shipping freight for the Item to us.
8. If i have any question about the goods even though the question too simple can you help me?
We value every customers and consider them as our precious wealth. so please feel free to tell us
when u have any questions, it is our great pleasure to service you.
