Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VMADE
-
Marking Head Brand:
-
SINO Galvo
-
Weight (KG):
-
40 KG
-
Core Components:
-
Fiber Laser Source
-
Applicable Material:
-
Metal Materials
-
Keywords:
-
Fiber Laser Markng Machine
-
Marking Depth:
-
0-1mm (according
-
Laser source:
-
Raycus Laser Source
-
Software:
-
EZCAD
-
Cooling:
-
Air cooling
-
Laser wavelength:
-
1064nm
-
Marking area:
-
110*110mm
-
Lifespan of laser device:
-
100000 Hours Fiber Laser Marking Machine
Quick Details
-
Working Accuracy:
-
0.01
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VMADE
-
Marking Head Brand:
-
SINO Galvo
-
Weight (KG):
-
40 KG
-
Core Components:
-
Fiber Laser Source
-
Applicable Material:
-
Metal Materials
-
Keywords:
-
Fiber Laser Markng Machine
-
Marking Depth:
-
0-1mm (according
-
Laser source:
-
Raycus Laser Source
-
Software:
-
EZCAD
-
Cooling:
-
Air cooling
-
Laser wavelength:
-
1064nm
-
Marking area:
-
110*110mm
-
Lifespan of laser device:
-
100000 Hours Fiber Laser Marking Machine

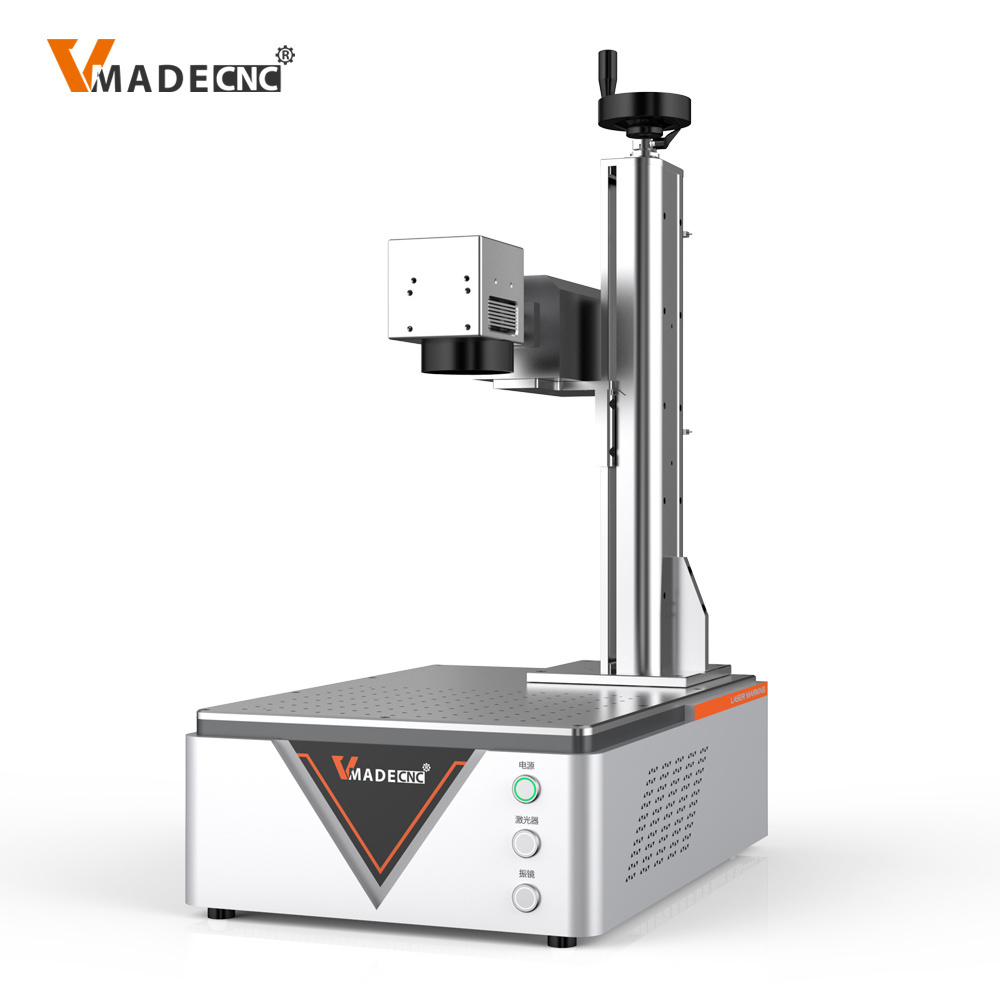

Raycus JPT Laser Engraving Machine 30w 50w 60w 80w 100w JPT M7 Mopa Fiber Laser Engraving Marking Machine for Metal Plastic
Fiber Laser Marking Machine suitable for Gold, Silver, Diamond, Sanitary Equipments, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing, Medical Equipments, G l asses and Clock , Auto Parts, Plastic& Paper Materials , The Electron, Hardware which with high request for depth, smooth ,
accuracy such as horologe, Mould, bitmap marking etc.
|
Technical Parameter
|
|
|
|
|||
|
Model
|
VLM20W
|
VLM30W
|
|
|||
|
Laser Power
|
20W
|
30W
|
|
|||
|
Laser Wavelength
|
1064nm
|
|
|
|||
|
Laser Type
|
Raycus /Germany IPG Fiber Laser
|
|
|
|||
|
Beam Diameter
|
7mm±1
|
|
|
|||
|
Repeat Frequency
|
30KHz-60KHz
|
|
|
|||
|
Pulse Width
|
131ns
|
|
|
|||
|
Marking Depth
|
0.01-0.5mm
|
|
|
|||
|
Marking Area
|
110×110mm/200×200mm/300*300mm
|
|
|
|||
|
Rated Power Consumption
|
600W
|
800W
|
|
|||
|
Operating Voltage
|
110V- 240V/50-60 Hz/15A
|
|
|
|||
|
Cooling
|
Air Cooling
|
|
|
|||
|
Packing Size
|
48*78*77cm (L*W*H)
|
|
|
|||
|
Gross Weight
|
40kg
|
|
|
|||
|
Package
|
Standard Export Wooden Box
|
|
|
|||
