Quick Details
-
Weight (KG):
-
110
-
Products name::
-
Channel letter bending bender machine
-
Machine Type:
-
Roller-Bending Machine
-
Function:
-
Auto Feeding+bending+slotting
-
Model::
-
BWZ-F2
-
Applicable material:
-
Aluminum
-
Material thickness::
-
0.3-0.8mm
-
Material width::
-
10-100mm
-
Precision::
-
0.1mm/100Meter
-
Document format::
-
AI/DXF/PLT
-
Working Voltage::
-
220V 50HZ 1PH or Customized
Quick Details
-
Place of Origin:
-
Shandong China
-
Brand Name:
-
Baoyuantong
-
Year:
-
NEW
-
Weight (KG):
-
110
-
Products name::
-
Channel letter bending bender machine
-
Machine Type:
-
Roller-Bending Machine
-
Function:
-
Auto Feeding+bending+slotting
-
Model::
-
BWZ-F2
-
Applicable material:
-
Aluminum
-
Material thickness::
-
0.3-0.8mm
-
Material width::
-
10-100mm
-
Precision::
-
0.1mm/100Meter
-
Document format::
-
AI/DXF/PLT
-
Working Voltage::
-
220V 50HZ 1PH or Customized
Products Information

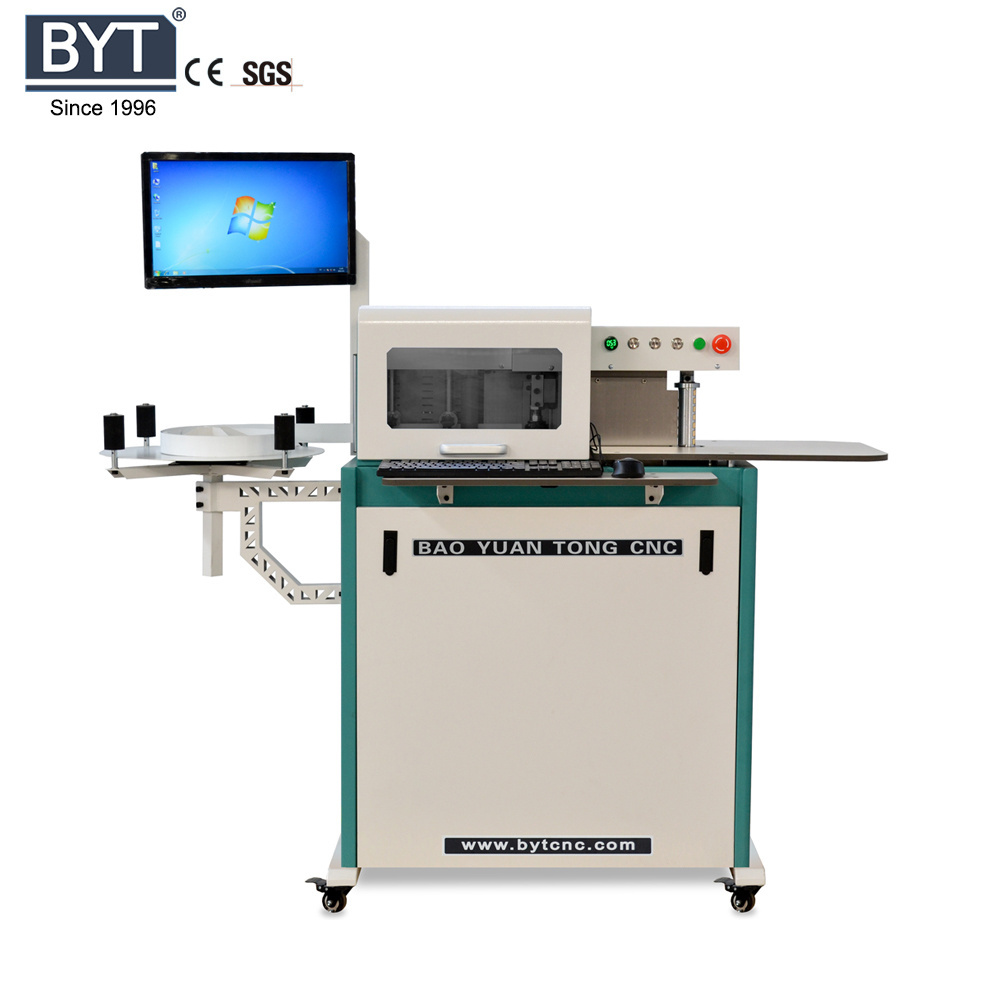

Channel Letter Bending Machine Profile Coil Bender Tools Led Sign Aluminum CNC Automatic 3D for Advertising Acrylic Key
Application:
The application range of the Channel Letter Bending Machine is generally in the advertising industry.
When the advertising company needs to do the luminous characters for the shops, it needs to use the channel letter bending machine to make the production.
The channel letter bending machine can process flat aluminum coil materials and does not damage the material.
The processing precision is high and the speed is fast.
The material thickness and tool adjustments are all adjusted by software, more convenient and quick.
Technical datas:
|
Model
|
BWZ-F2
|
|
Function
|
Automatic feeding,slotting and bending
|
|
Applicable Material (Alu=Aluminum)
|
Flat Alu
|
|
Material Width
|
Flat Alu：≤100mm
|
|
Material Thickness
|
Aluminum：0.3~0.8mm
|
|
Bending Radius
|
3mm
|
|
Feeding
|
φ30mm feeding wheel +Encoder
|
|
Slotting System
|
Planner slotting
|
|
Bending
|
Coupled extrusion-general arc bender
|
|
Control System
|
ADT
|
|
Power
|
300W
|
|
Air Pressure
|
0.6MPa
|
|
Air Pressure
|
Dxf, Ai,Plt
|
|
Working Voltage
|
220V/ 50-60HZ/1P
|
|
Net Weight(kgs)
|
110
|
|
Overall Size(mm)(L*W*H)
|
1560*600*1500
|
Whole machine advantage:
1.
Professional device
to working with flat aluminum SUPER LETTERS thickness from 0.3-0.8mm, and Width less than 100mm.
2. An innovative combination of
feeding, cutting, and bending multi-axis
linkage mechanical construction, working more accurately and stable.
3. Equipped with
imported encoder length closed-loop control system
, feeding 1 meter the error ＜0.1mm,
ensure working precision
4. Cutting device use planner tools cutting and square rail positioning,
lower cost/stable cutting/lower noise
.
5. Plain arc bending device,
intelligent compensation of rebound coefficient
, Min bending radius meet 3mm.
6. We provide
guarantee and post-warranty service
, as well as support at every stage of machine operation
Custom Finish Samples
Customer Feedback
Click below picture you will find
letter bender detail video
,it is our customer recently feedback our
CNC letter bending machine and laser welding machine.
it is our duty to provide good service to our every customer .
