Quick Details
-
Max Processing Thickness:
-
100mm
-
Drill Diameter:
-
16mm-30mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZQM
-
Model Number:
-
MS3615
-
Voltage:
-
380V
-
Power:
-
1.1kw
-
Dimension(L*W*H):
-
540 x 800 x 1700mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Max. slotting length (mm):
-
200
-
Max. slotting width (mm):
-
25.4
-
Max. slotting depth (mm):
-
100
-
Certification:
-
ISO9001
Quick Details
-
Application:
-
drilling wood
-
Motor Speed:
-
2800
-
Max Processing Width:
-
25.4
-
Max Processing Thickness:
-
100mm
-
Drill Diameter:
-
16mm-30mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZQM
-
Model Number:
-
MS3615
-
Voltage:
-
380V
-
Power:
-
1.1kw
-
Dimension(L*W*H):
-
540 x 800 x 1700mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Max. slotting length (mm):
-
200
-
Max. slotting width (mm):
-
25.4
-
Max. slotting depth (mm):
-
100
-
Certification:
-
ISO9001
MS3615 Chisel mortising machine
can be used to slot the square motiser and the square motiser with semicircle edge.
The slotting head is driven by the swing handle. The workbench can move along the dovetail groove, and the front handle wheel drive it.

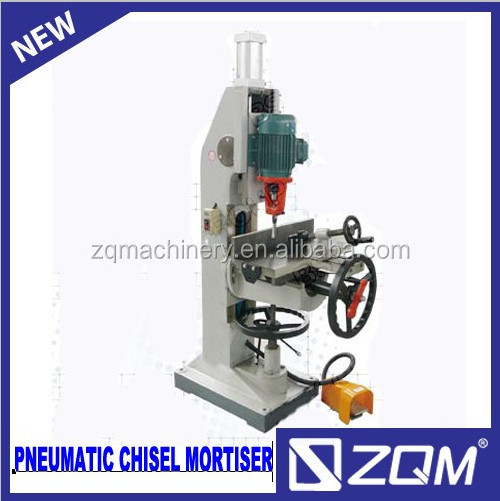

We also offer the PNEUMATIC model MS3615A, its slotting head is driven by the pneumatic cylinder.
Technical specification:
|
PARAMETER |
|
|
Model |
MS3615 |
|
Max. slotting length (mm) |
200 |
|
Max. slotting width (mm) |
25.4 |
|
Max. slotting depth (mm) |
100 |
|
Spindle speed (rpm) |
2800 |
|
Workbench size (mm) |
540 x 215 |
|
Overall dimension (mm) |
540 x 800 x 1700 |
|
Motor power (KW) |
1.1 |
|
Weight (KGS) |
220 |
Details
Sample room:
THE MACHINES WE SUPPLIED:
WOOD COMBINATION MACHINE,
WOOD EDGE BANDER,
WOOD SHAPER,
WOOD PLANER,
WOOD THICKNESSER,
WOOD DOUBLE SIDE PLANER & THICKNESSER,
WOOD SPINDLE MILLER,
WOOD CIRCULAR SAW MACHINE,
WOOD SLIDING TABLE SAW MACHINE,
WOOD BAND SAW MACHINE,
WOOD FINGER JOINTER,
WOOD FOUR SIDE SHAPER,
WOOD COPYING LATHE
WOOD ROUTER
IF ANY QUESTIONS, PLS FEEL FREE TO CONTACT WITH ME.
