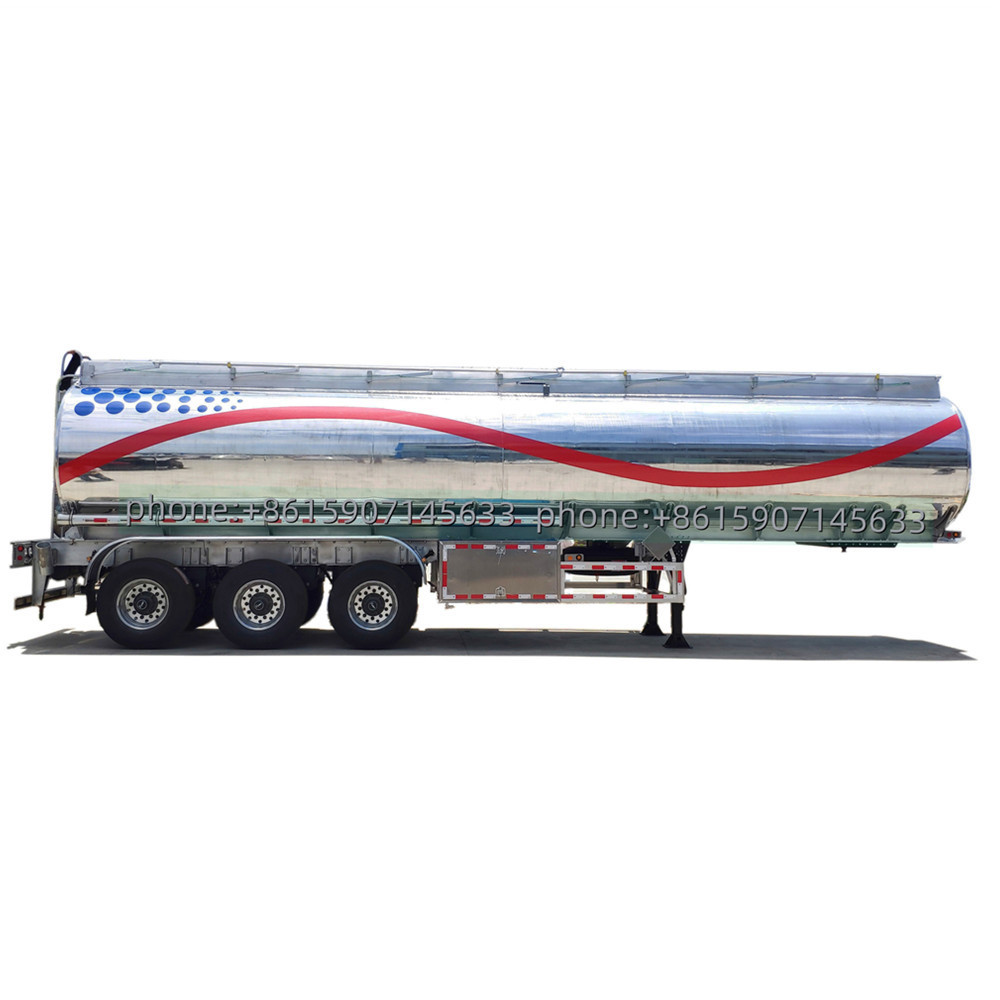

3 Axles olive oil transport tanker liquid food aluminum tank semi trailer for sale

Product Description

Saso aluminum fuel tanker material : shiny 5454/H32

Saso aluminum fuel tanker thickness :5.5/6mm
Saso aluminum fuel tanker axles: BPW or Fuwa 9Tons/10Tons
Saso aluminum fuel tanker Tires : Single tire, Hankook or Michelin 6+1pcs

More details of shiny aluminum alloy Fuel tanker, please contact with Ms.Marilyn

Mobile / Whatsapp: +86 15907145633

Wechat : 15907145633

ALUMINUM FUEL TANKER TRAILER 42 M3

TECHNICAL SPECIFICATION

General:

The tanker trailer is designed for loading and transporting fuel.

Working pressure 75psi, testing pressure 1.5 times working pressure.

Transport medium:

Fuel with density between 0.74kg/L and 0.87kg/L

Dimension (mm):

External (length x width x height) (mm) :        12,000 x 2,490x3,310

Fifth wheel height (unload):                   1,319

King pin Height:                            1,217

King Pin Setting:(kingpin to front end ):          1,300

Wheel Distance (king pin to second axle):         7,760

Alex space:                                 1,310+1,310

Landing Gear Location(from the king pin):        2,240

Weight (kg)
Tare Weight (tolerance ±3%)	5,980
Maximum Payload (Light fuel for planes)	31,000
Maximum Gross Weight	37,200
Maximum King Pin Payload (distributed payload)	12,900
Maximum Axle Payload (distributed payload)	24,300
Tank Body:
Capacity	42m³+5% Vapor Volume
Compartments	Single compartment
Shape of Tank	ellipses; variable cross-section
Tank Material	Aluminum alloy 5454 conforming ADR
	minimum shell thickness 5.5mm
Dish Ends and Bulkhead	Aluminum alloy 5454 conforming ADR
	thickness 6mm minimum
Baffle Material	Aluminum alloy 5454 conforming ADR
	thickness 6mm minimum

Chassis :

Axle : Fuwa brand axles,3pcs

Suspension : air bag suspension system.

Tire : Hankook brand, 385/65R22.5 158L 18PR

Tank Accessories and Fittings:

Manhole:

Two 20  diameter manhole with 20EMCO manhole cover, 10fill /vent,

Pressure Vacuum vent and emergency vent included in manhole assembly

Protecting cover for manhole is provided

Discharge system:

Bottom loading & gravity discharge system:

1. Foot Valve : Two 4EMCO pneumatic foot value on the bottom of the tanker. one is in the front /middle of tank; the other is at the rear of tank.

2. 4aluminum alloy pipe line, outlet located at the middle of tank, right, with sight glass.

3. Two 4EMCO API adaptor with aluminum dust cap on the right side of the tanker ( horizontal installation)

4. The API adaptors are to be fitted at height of between 705mm and 850mm

5. All outlets are in the aluminum alloy box.

6.Outlets box equipped with sliding door and sealing opening

7.Trailer brake to be applied when bottom loading valves are on operation.

Braking System:

WABCO twin lines air brake system, with 4s/2m ABS.

HALDEX 30/30 type brake chambers on rear axle,

30 type on front two axles. Aink and tubes are made in china.

Landing Gear:

JOST two speed with sand shoe, model:A400.

King Pin:

JOST 2 inches diameter, bolt-on, model:KZ1010

Painting:

Aluminum surface no painting, shiny finish, steel surface silver paint.

Electrical System:

ADE approved lighting and electric system

24 Volt lighting system with LED lights at both sides and rear of the tanker

Harness: oil and vapor proof cable;

Side clearance and vapor proof cable

Side clearance/marker light: five PCS each side, amber

Tail light (including stop light, rear turn light and marker light): one pc/side, red/ amber:

License light: one pc white

Accessories:

1. Ladder: A detachable ladder is equipped in the rear of the tanker made of aluminum

2. Walkway: Anti-skid aluminum walkway along the entire length of the tanker

3. Handrail: Aluminum alloy fixed on the top tank and can be used to rise

4. Fire extinguish box: Two boxes are fixed on the left and right side of the trailer made of steel.

5. Fire extinguisher :Four pieces

6. Fender :Mudguard with mud Flaps

7. Spare Tire Carrier: Equipped one sets per trailer made of steel

8. Tool Box: Equipped one sets per trailer, on the left side made of aluminum

9. Water Tank: Equipped one, plastic material ,50l

10. Side Guard: Made of Aluminum, on rear tank.

11. Drainage tube: made of aluminum, on rear tank.

12. Fist Aid Kit: One piece.
