Quick Details
-
Screw Speed (rpm):
-
45 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGM
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
22000*2300*2200 mm
-
Power (kW):
-
110
-
Weight:
-
8.5 KG
-
Video outgoing-inspection:
-
contact
-
Warranty of core components:
-
contact
-
Core Components:
-
contact
-
Machinery Test Report:
-
contact
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Power(W):
-
100kw
-
Output (kg/h):
-
70 - 100 kg/h
-
Automatic Grade:
-
Fully Automatic
-
Certification:
-
CE Certificate
-
Marketing Type:
-
contact
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
55:1
-
Screw diameter (mm):
-
90 mm
-
Screw Speed (rpm):
-
45 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGM
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
22000*2300*2200 mm
-
Power (kW):
-
110
-
Weight:
-
8.5 KG
-
Video outgoing-inspection:
-
contact
-
Warranty of core components:
-
contact
-
Core Components:
-
contact
-
Machinery Test Report:
-
contact
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Power(W):
-
100kw
-
Output (kg/h):
-
70 - 100 kg/h
-
Automatic Grade:
-
Fully Automatic
-
Certification:
-
CE Certificate
-
Marketing Type:
-
contact
Product advantages
Polyethylene foam sheet(film),also named as pearl cotton, is a kind of new-type packing material with the features of dampproof, shockproof, sound insulation, heat preservation and good plasticity. It is an ideal substitute of traditional packing materials and used widely in the packing of electronic product, commodity, glass, pottery, electrical household appliances, spraying, furniture, hardware product, toy, etc.

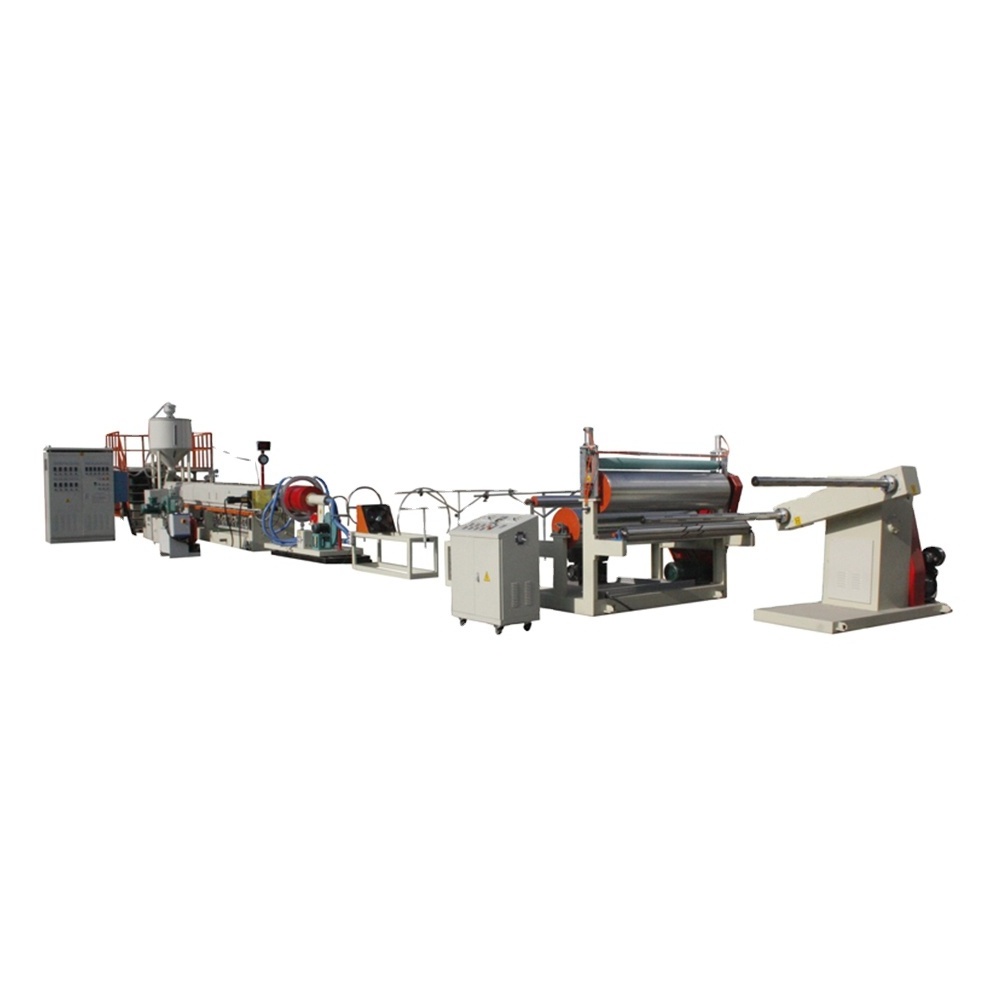

Main parameter of EPE foam sheet extrusion line
|
Model |
Unit |
SG-EPE90 |
SG-EPE105 |
SG-EPE120 |
SG-EPE135 |
SG-EPE150 |
SG-EPE170 |
SG-EPE200 |
||||||
|
Screw Diameter/L/D |
|
Ø90/55:1 |
Ø105/55:1 |
Ø120/55:1 |
Ø135/55:1 |
Ø150/55:1 |
Ø170/55:1 |
Ø200/55:1 |
||||||
|
Screw speed |
r/min |
5-45 |
5-45 |
5-45 |
5-45 |
5-45 |
5-45 |
5-45 |
||||||
|
Foam ratio |
|
20-48 |
20-48 |
20-48 |
20-48 |
20-48 |
20-48 |
20-48 |
||||||
|
Width of product |
mm |
1000-1400 |
1000-1800 |
1000-2000 |
1000-2000 |
1000-2000 |
1000-2000 |
1000-2000 |
||||||
|
Thickness Of product |
mm |
0.3-4.5 |
0.3-6.5 |
0.8-8 |
1-10 |
1-12 |
2-16 |
3-20 |
||||||
|
Cooling method |
Water cooling |
|||||||||||||
|
Capacity |
Kg/h |
70-100 |
80-120 |
120-200 |
200-300 |
260-400 |
400-500 |
500-650 |
||||||
|
Total power (approx.) |
kw |
110 |
130 |
170 |
200 |
240 |
285 |
350 |
||||||
|
Overall size (L×W×H) (approx.) |
m |
22x2.3x2.2 |
23x2.3x2.2 |
25x2.3x2.2 |
28x2.3x2.2 |
30x2.3x2.2 |
32x2.3x2.2 |
38x2.8x3.8 |
||||||
|
Total weight (approx.) |
T |
8.5 |
9 |
12 |
13 |
15 |
17 |
20 |
||||||
