Quick Details
-
Weight:
-
5 KG
-
Place of Origin:
-
Guangdong, China
-
Voltage:
-
380V
-
Power:
-
15KW
-
Applicable cans:
-
Tinplate pails
-
Output:
-
40-45CPM
-
Applicable material thickness:
-
0.35-0.38mm
-
Tinplate level:
-
T3
-
Can height:
-
280-500mm
-
Distace between top end and ear:
-
35+(L-180)~65(L-180)mm
-
After Warranty Service1:
-
Video technical support
-
After Warranty Service2:
-
Online support
-
Warry:
-
1 Year
Quick Details
-
Machinery Capacity:
-
40-45cpm
-
Brand Name:
-
Jorson
-
Dimension(L*W*H):
-
4521*2821*2860mm, 4521*2820*2860mm
-
Weight:
-
5 KG
-
Place of Origin:
-
Guangdong, China
-
Voltage:
-
380V
-
Power:
-
15KW
-
Applicable cans:
-
Tinplate pails
-
Output:
-
40-45CPM
-
Applicable material thickness:
-
0.35-0.38mm
-
Tinplate level:
-
T3
-
Can height:
-
280-500mm
-
Distace between top end and ear:
-
35+(L-180)~65(L-180)mm
-
After Warranty Service1:
-
Video technical support
-
After Warranty Service2:
-
Online support
-
Warry:
-
1 Year
Product Overview
Products Description

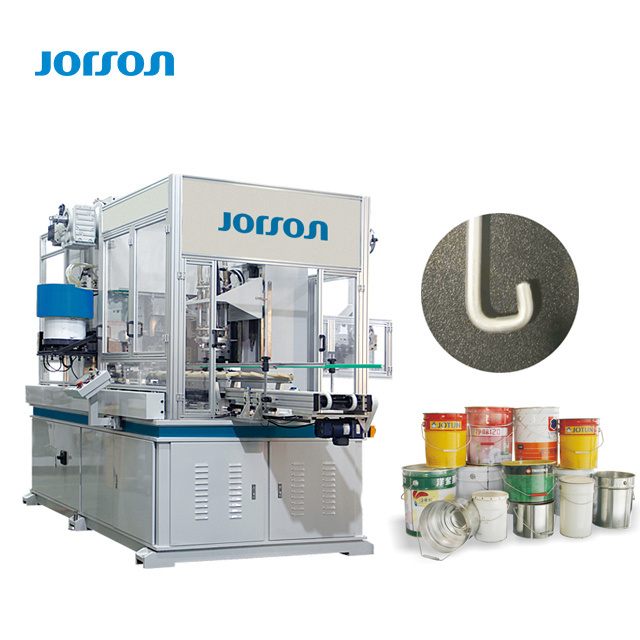

Full automatic wire handle machine for pails
This machine is using mechanical cam transmission, can conveying, with advance control system. It makes the machine
run flexibly and reduce mechanical impact. The forming of the wire handle is flat U shape hook and fold inside to make the handle not easy to come out and not pierce through the pail body.
Product Specification
Product Paramenters
|
No
|
Item
|
Data
|
|
1
|
Capacity
|
40-45cpm
|
|
2
|
Applicable can diameter
|
220-300mm
|
|
3
|
Applicable height
|
280-500mm
|
|
4
|
Distance between beading and ears
|
≥20mm
|
|
5
|
Wire diameter
|
3.5-4.0mm
|
|
6
|
Air pressure
|
≥0.6Mpa
|
|
7
|
Connecting height
|
1000±20mm
|
|
8
|
Power
|
15KW
|
