1.Pump housing is made of high strength aluminum alloy material.
2.The shaft extension type: P(plain key), H(rectangle spline), involute spline, SAE spline.
3.The joining type of inlet/outlet position is flange (F) or thread (L).
4.The auto-compensation unit of axial clearance ensures the high volumetric efficiency.
5.Higher working pressure, wider speed range.
6.Keep higher volumetric efficiency when the speed is 600 rpm/min.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HCHC
-
Place of Origin:
-
Anhui, China
-
Pressure:
-
other
-
Structure:
-
other
-
Weight:
-
22.1
-
Power:
-
other
-
Dimension(L*W*H):
-
other
-
Maximum Flow Rate:
-
other
-
Theory:
-
Rotary Pump
-
Product name:
-
hydraulic gear pump
-
Nominal displacement:
-
10~32 mL/r
-
Rated pressure:
-
200 bar
-
Maximum pressure:
-
250 bar
-
Minimum speed:
-
600 rpm
-
Rated speed:
-
2500 rpm
-
Maximum speed:
-
3000 rpm
-
Certificate:
-
ISO9001:2008
Quick Details
-
Warranty:
-
1.5 years
-
Displacement:
-
Other
-
Pump Type:
-
Gear Pump
-
Brand Name:
-
HCHC
-
Place of Origin:
-
Anhui, China
-
Pressure:
-
other
-
Structure:
-
other
-
Weight:
-
22.1
-
Power:
-
other
-
Dimension(L*W*H):
-
other
-
Maximum Flow Rate:
-
other
-
Theory:
-
Rotary Pump
-
Product name:
-
hydraulic gear pump
-
Nominal displacement:
-
10~32 mL/r
-
Rated pressure:
-
200 bar
-
Maximum pressure:
-
250 bar
-
Minimum speed:
-
600 rpm
-
Rated speed:
-
2500 rpm
-
Maximum speed:
-
3000 rpm
-
Certificate:
-
ISO9001:2008
Product Description

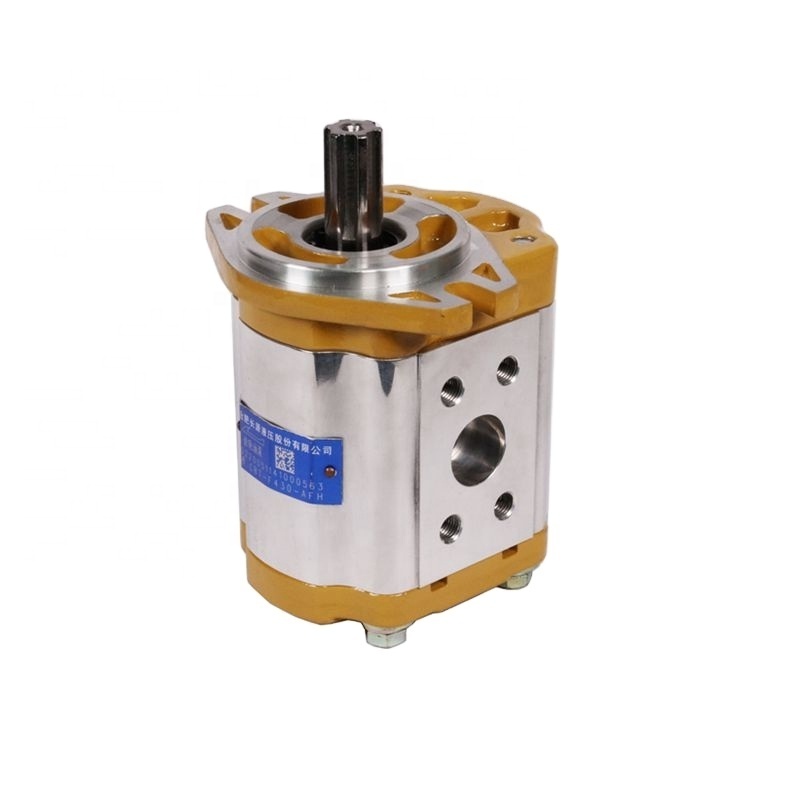

HCHC small hydraulic gear pump CBT-F4 for agricultural machine
Performance character:
Specification
Model Code
CBT - F 4 ** - A * * *
① ②③④ ⑤ ⑥ ⑦ ⑧
①Product model
②Pressure grade: F=200 bar
③Gear modulus: 4
④Nominal displacement (mL/r)
⑤Mounting type: A= Oval flange
⑥Joining port type: F= flange, L= thread
⑦Shaft extension type:
P= plain key, H= rectangle spline
X= involute spline, Φ= SAE spline
⑧Rotation direction:
L= counterclockwise, R= clockwise
②Pressure grade: F=200 bar
③Gear modulus: 4
④Nominal displacement (mL/r)
⑤Mounting type: A= Oval flange
⑥Joining port type: F= flange, L= thread
⑦Shaft extension type:
P= plain key, H= rectangle spline
X= involute spline, Φ= SAE spline
⑧Rotation direction:
L= counterclockwise, R= clockwise
